04.01.01 WIFI / LAN connection to internet (cloud mode) – LED status
4 variants of LED flashing are posssible, indicating the connection status between the base and the router or server.

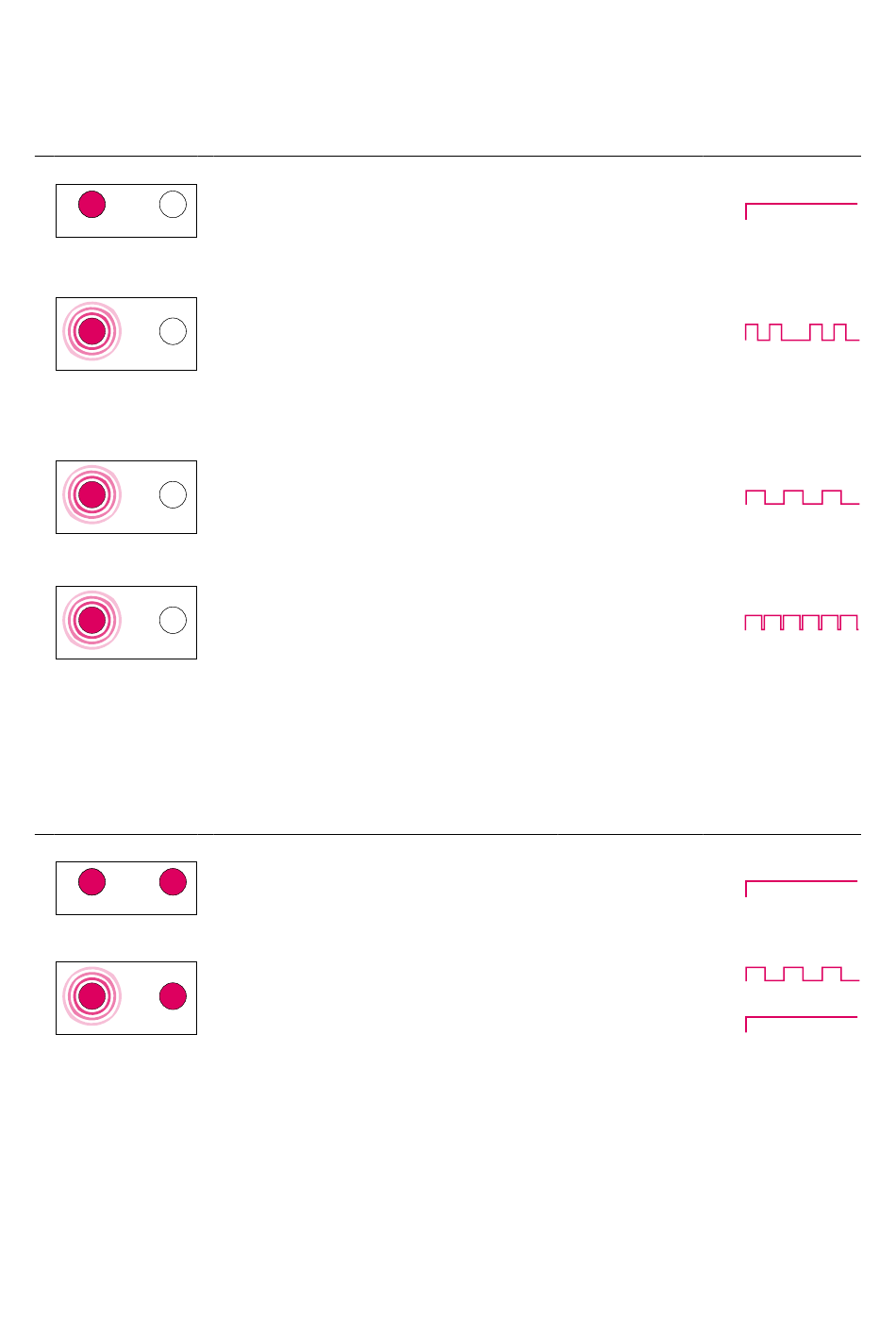

LED status
A
WIFI/LAN AP
B
WIFI/LAN AP
C
WIFI/LAN AP
D
WIFI/LAN AP
1) From software version 2.0
04.01.02 Access point (AP) connection – LED status
2 variants of LED flashing are posssible, indicating the connection status between the base and an external device.
LED status
A
WIFI/LAN AP
B
WIFI/LAN AP
Connection status
Base is communicating
with the server
Base is not connected to
the router
Base is connected to router
and the base can't reach
the server
Base is connected to router
and the base can reach
server but the certificate
at the base is not valid
Connection status
Base is connected to an
external device via access
point (AP)
No external device is
connected to the base via
access point (AP)
Comment
Normal case
That's the case when:
▪ WIFI SSID not valid
▪ WIFI password not valid
▪ distance of WIFI too long between
base and router
▪ LAN connection is interrupted
▪ Router not ON
That's the case when:
▪ (< 1 min) the connection to the
server is established
▪ (> 1 min) internet of the provider
is not available
▪ (> 1 min) base is not registered at
the server
Please contact our support for assistence
Comment
WIFI / LAN LED
Normal case
AP LED
WIFI / LAN LED
Connect an external
device – see
chapter 05.02.02
AP LED
