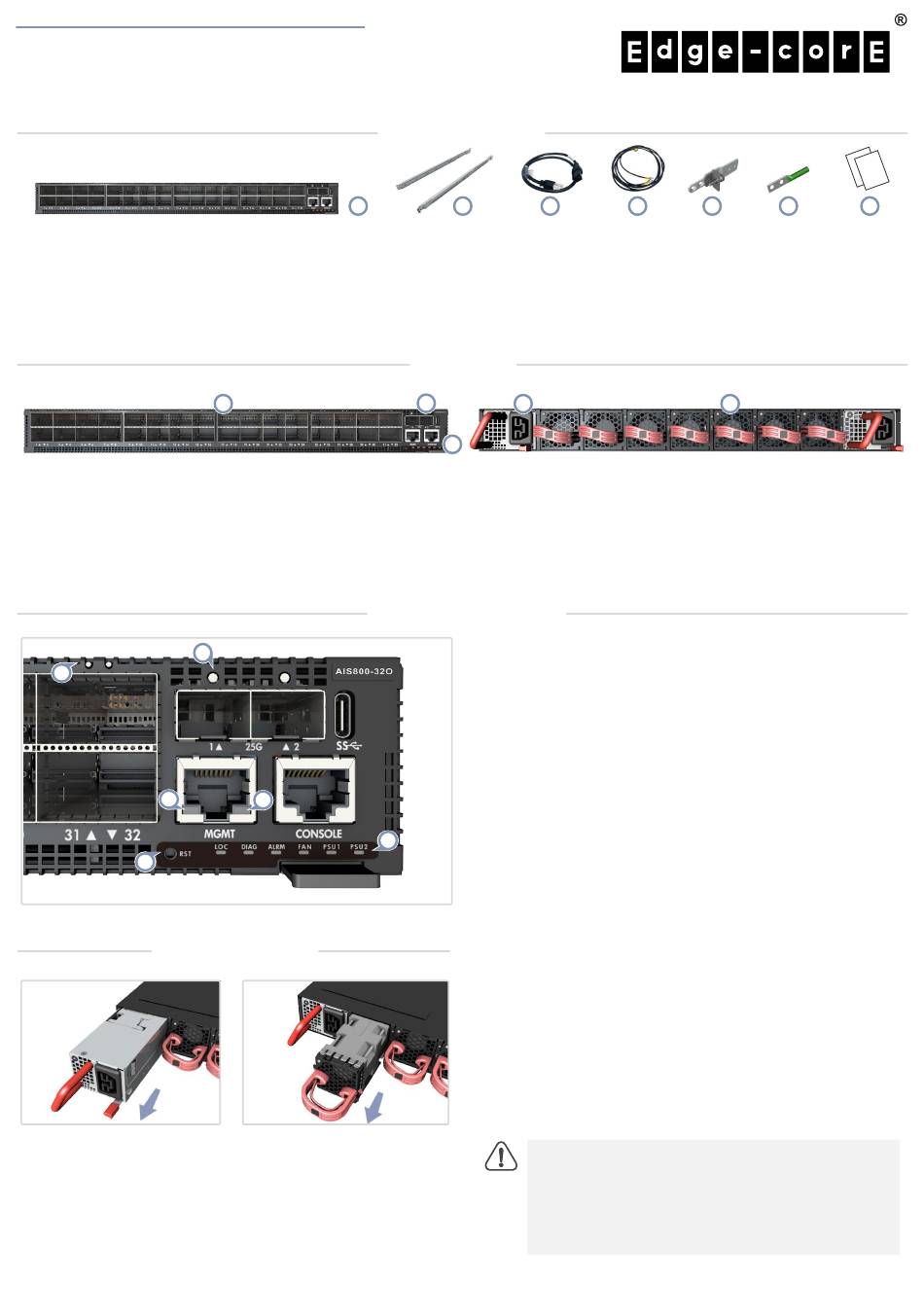

Edge-Core AIS800-32O Quick Start Manual

Quick Start Guide
800 Gigabit AI & Data Center Ethernet Switch
AIS800-32O
1.
AIS800-32O switch
2. Slide-rail mounting kit—2 rack slide-rails and install guide
3. AC power cord (included with AC PSUs only)
4. DC power cord (included with DC PSUs only)
1. 32 x 800G OSFP800 ports
2.
Management Ports: 2 x 25G SFP28, 1 x 1000BASE-T RJ-45,
RJ-45 console, USB
3.
System LEDs
1
3
5
FRU Replacement
PSU Replacement
1. Remove the power cord.
2. Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.

1
1
2
3
Fan Tray Replacement
1. Pull the handle release latch.
2. Remove the fan tray from the
chassis.
3.
Install a replacement fan with
matching airflow direction.
Package Contents
2 3
5.
Ground plate
6.
Ground lug (optional)
7.
Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
2
4
3
4. 2 x AC or DC PSUs
5.
7 x fan trays
System LEDs/Buttons
1.
OSFP800 LEDs: Yellow (800G), Blue (400G), White (200G),
Green (100G)
2. SFP28 LEDs: Green (link/activity)
3. RJ-45 MGMT LEDs: Left: Green (link/act), Right: Green (1G/
100M)
4.
System LEDs:
LOC: Flashing Green (switch locator)
DIAG: Green (OK), Red (fault)
ALRM: Red (fault)
FAN: Green (OK), Red (fault)
PSU1/PSU2: Green (OK), Red (fault)
4
5.
RST: Reset button
Caution:
be completed within two minutes to prevent the switch shutting
down due to its built-in over-temperature protection.
Attention:
remplacement du ventilateur doit être effectué dans les deux
minutes pour éviter que le commutateur ne s'arrête en raison
de sa protection intégrée contre la surchauffe.
– 1 –
www.edge-core.com
4 5
5
During switch operation, fan replacement should
Pendant le fonctionnement du commutateur, le
6 7
E012025-CS-R01
150200002820A
