USB 3.2 Gen 1 Data Extender Kit
AT-USB-EX350-KIT
The Atlona AT-USB-EX350-KIT is a data only USB 3.2 extender kit. It supports simultaneous
extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100
meters) using a single, cost-effective Category 6A U/FTP cable.
The USB-EX350-KIT is ideal for video conferencing or remote instruction applications where high
data rate USB components including laptops, computers, cameras, microphones, and speakers
are in different areas of the room.
The USB-EX350-KIT is comprised of two endpoints. The host endpoint includes a USB-C port
for connection to hosts such as laptops, computers, or other AV equipment that supports USB
connectivity including many Omega
ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones,
speakers, and other peripherals. Bidirectional remote power allows the kit to be powered by the
included power supply connected to either the host or device endpoint.
The USB-EX350-KIT is a great solution for routing USB 3.2 Gen 1 data up to 5 Gbps between
components at distances greater than is possible with traditional cabling.
Package Contents
1 x AT-USB-EX350-HS
1 x AT-USB-EX350-DV
1 x 3 ft. USB-A to USB-C cable
1 x 3-pin captive screw connector
4 x Surface mounting brackets
4 x Mounting screws
1 x AC power supply with 2-pin captive screw connector
1 x AC power cord
1 x Insert w/ QR code
IMPORTANT:
latest firmware updates and User Manual.
Series products. The device endpoint includes three USB-A
Visit https://www.atlona.com/product/at-usb-ex350-kit for the
1
Installation Guide
AT-USB-EX350-KIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATLONA AT-USB-EX350-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Panduit ATLONA AT-USB-EX350-KIT

  • Page 1 USB 3.2 Gen 1 Data Extender Kit AT-USB-EX350-KIT The Atlona AT-USB-EX350-KIT is a data only USB 3.2 extender kit. It supports simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.

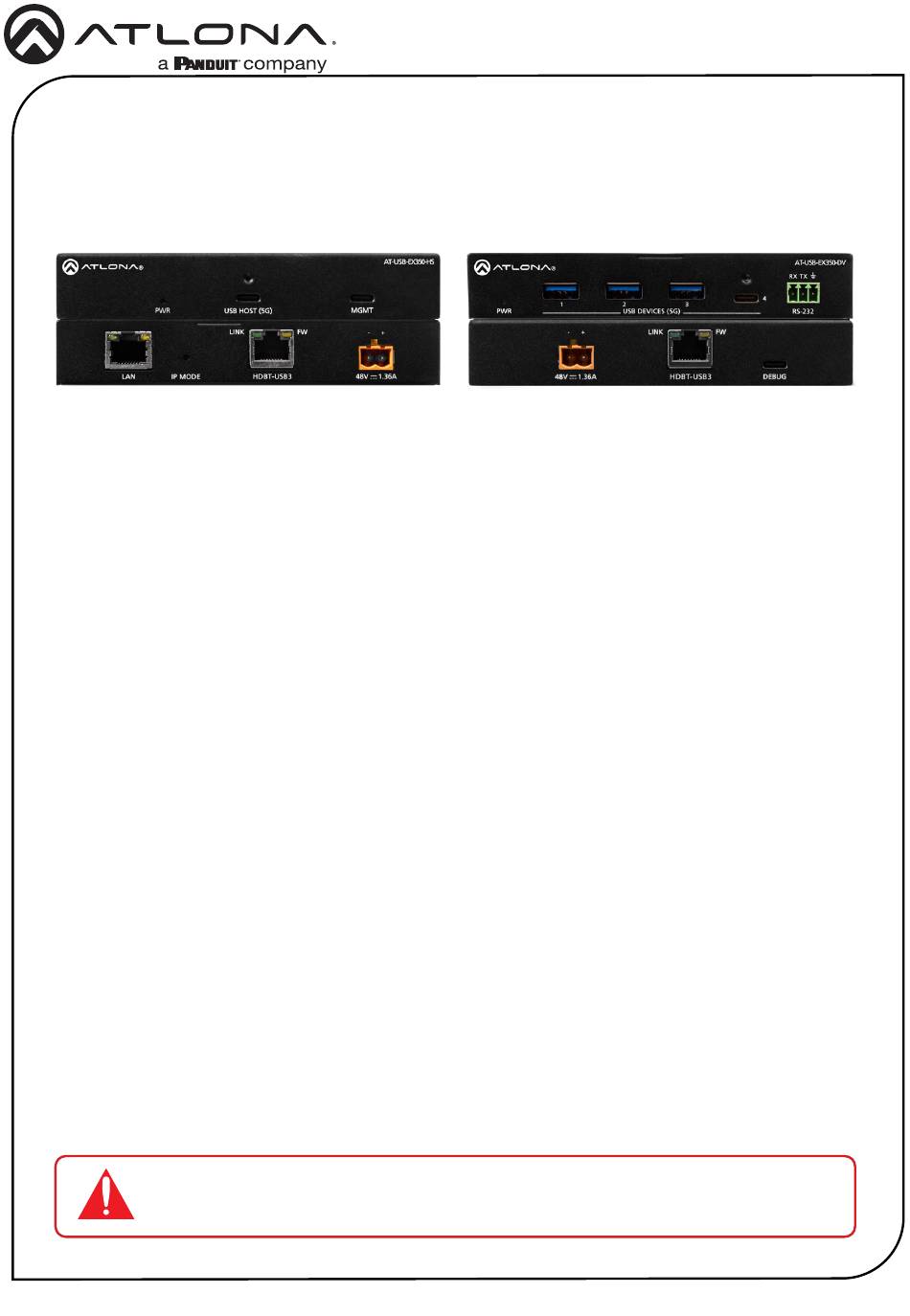

  • Page 2 Installation Guide AT-USB-EX350-KIT AT-USB-EX350-HS AT-USB-EX350-HS AT-USB-EX350-HS USB HOST (5G) MGMT USB HOST (5G) MGMT Front LINK LINK IP MODE USB LINK 1.36A IP MODE USB LINK 1.36A Rear IP MODE This LED indicator will be green while the Use a paperclip or another slim object to unit is powered and operating normally.
  • Page 3 Installation Guide AT-USB-EX350-KIT AT-USB-EX350-DV AT-USB-EX350-DV AT-USB-EX350-DV RX TX RX TX USB DEVICES (5G) RS-232 USB DEVICES (5G) RS-232 Front LINK LINK 1.36A HDBT-USB3 DEBUG 1.36A HDBT-USB3 DEBUG Rear DEVICE HDBT-USB3 This LED indicator will be green while the Connect a category cable (CAT6A U/FTP), unit is powered and operating normally.
  • Page 4: Installation

    Installation Guide AT-USB-EX350-KIT Installation Connect a USB cable from the host device to the USB-C HOST port on the AT-USB-EX350- HS. This port supports USB 3.2 data up to 5 Gbps and USB 2.0 data up to 480 Mbps. Recommended cable types: •...
  • Page 5: Led Indicators

    Installation Guide AT-USB-EX350-KIT RS-232 Connect an RS-232 cable from the RS-232 port on the AT-USB-EX350-DV to a device that will be controlled via a serial connection, such as a camera. This connection will be established over the network using a TCP Proxy to the AT-USB-EX350-HS. Refer to the AT-USB-EX350-KIT User Manual for more information.
  • Page 6: Accessing The Built-In Web Server

    Installation Guide AT-USB-EX350-KIT Accessing the built-in Web Server The AT-USB-EX350-KIT includes a built-in web server, which allows easy management and control of all features. Before using the web server, a password must be created. The AT-USB-EX350-KIT is set to DHCP by default and will receive an IP address from the network’s DHCP pool if a DHCP server is available.
  • Page 7: Mounting Instructions

    Installation Guide AT-USB-EX350-KIT Mounting Instructions The AT-USB-EX350-KIT includes mounting brackets, which can be used to attach the units to any flat surface. Use the included screws to attach the mounting brackets. Locate the included screws in the packaging. Align the mounting bracket with the enclosure, matching the holes on the side of the enclosure with those on the bracket, as shown below.
  • Page 8: Warranty

    Installation Guide AT-USB-EX350-KIT Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-usb-ex350-kit/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. International atlona.com 41.43.508.4321...
