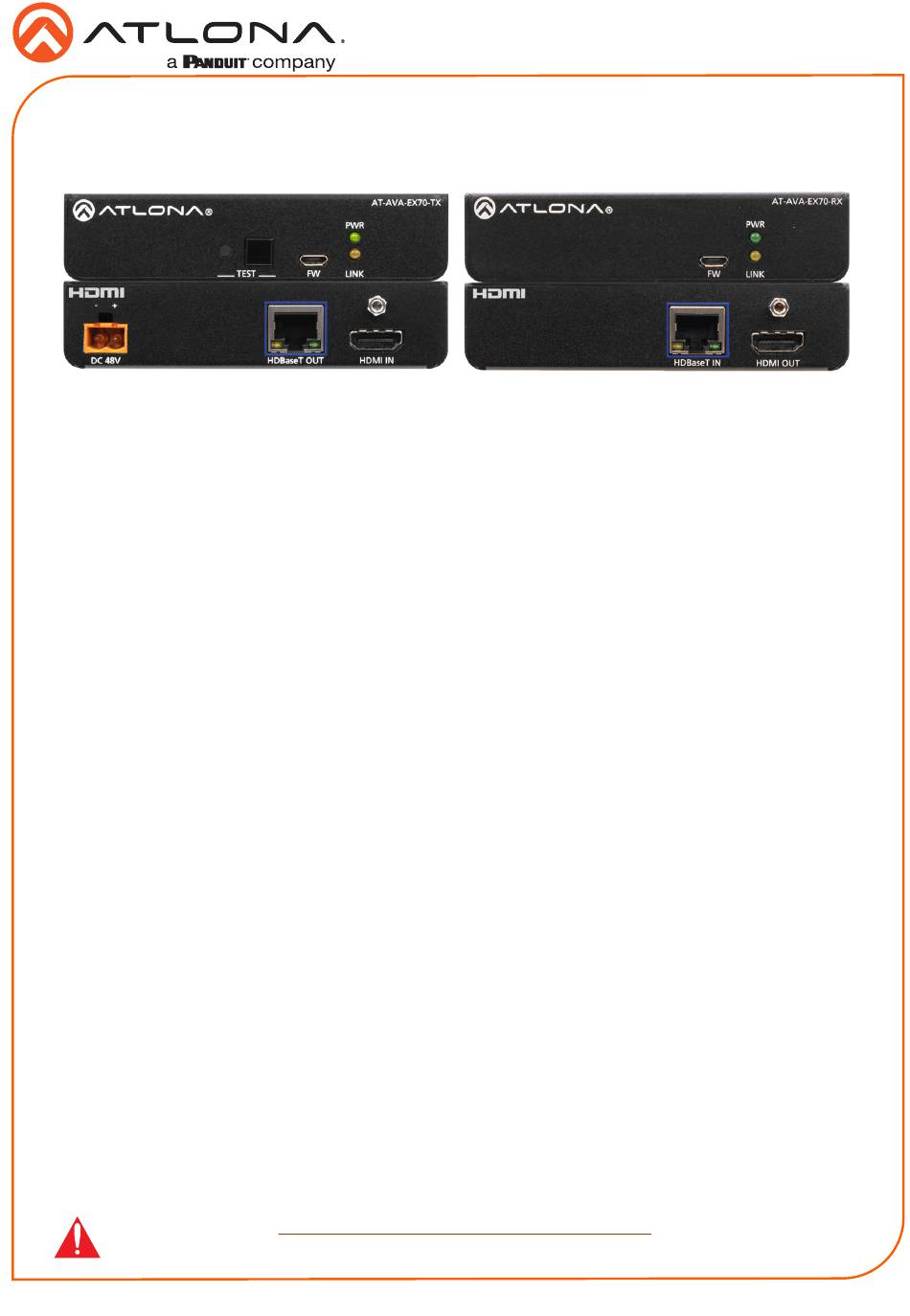

4K/UHD HDMI Extender Kit with Remote Power
AT-AVA-EX70-KIT

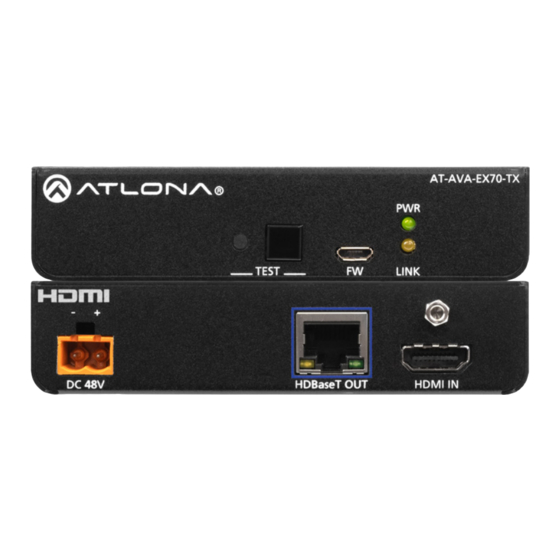

The Atlona AT-AVA-EX70-KIT is an Avance™ Series HDBaseT extender kit with remote power
for transmitting 4K/UHD 60Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60Hz video up to
230 feet (70 meters). In addition to video with embedded multi-channel audio signals, remote
power is provided from the transmitter to the receiver on the single CAT6A/7 cable. Integrated
HDBaseT link status testing allows quick verification of cable, termination, and link quality. HDMI
clock stretching and EDID filtering are included to ensure the integrity of video transmission as
well as compatibility with the widest array of sources and display devices. The AT-AVA-EX70-KIT
includes both transmitter and receiver endpoints. Compact enclosures and included brackets
allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX70-KIT
delivers a cost-effective solution for extension of video, audio, and receiver power at resolutions
up to 4K/UHD.
Package Contents
1 x AT-AVA-EX70-TX
1 x AT-AVA-EX70-RX
1 x 2-pin captive screw connector
4 x Mounting brackets
IMPORTANT: Visit
updates and Installation Guide.
https://atlona.com/product/AT-AVA-EX70-KIT
1
8 x Mounting screws
1 x 48V DC power supply
1 x IEC cable
1 x Installation Guide
Installation Guide
AT-AVA-EX70-KIT
for the latest firmware

Advertisement

loading
Need help?

Need help?

Do you have a question about the Atlona Avance AT-AVA-EX70-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Panduit Atlona Avance AT-AVA-EX70-KIT

  • Page 1 Installation Guide AT-AVA-EX70-KIT 4K/UHD HDMI Extender Kit with Remote Power AT-AVA-EX70-KIT The Atlona AT-AVA-EX70-KIT is an Avance™ Series HDBaseT extender kit with remote power for transmitting 4K/UHD 60Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60Hz video up to 230 feet (70 meters).
  • Page 2 Installation Guide AT-AVA-EX70-KIT Panel Descriptions AT-AVA-EX70-RX AT-AVA-EX70-TX LINK TEST LINK HDBaseT IN HDMI OUT DC 48V HDBaseT OUT HDMI IN TEST Quick and easy test for category cables. Not used at this time. Use the button to start the test and the POWER and LINK LEDs LED to determine pass or fail.
  • Page 3 Installation Guide AT-AVA-EX70-RX AT-AVA-EX70-TX AT-AVA-EX70-KIT HDBaseT LED Descriptions LINK TEST LINK HDBaseT OUT HDMI IN HDBaseT IN HDMI OUT Green LED Yellow LED When a category cable is connected This LED displays the status of the and receiving signal this LED will be HDBaseT firmware.
  • Page 4: Mounting Instructions

    Installation Guide AT-AVA-EX70-KIT Mounting Instructions The AT-AVA-EX70-KIT includes two mounting brackets and four mounting screws each, which can be used to attach the units to any flat surface. Position one of the mounting brackets, as shown below, aligning the holes on Included screws the side of the enclosure with one set of holes on the mounting bracket.
  • Page 5 Installation Guide AT-AVA-EX70-KIT Cable Recommendation Guidelines Refer to the tables below for recommended cabling when using Altona products with HDBaseT. The green bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars. Core Shielding CAT5e...
  • Page 6: Updating Firmware

    Installation Guide AT-AVA-EX70-KIT Updating Firmware Download the firmware .zip file from the firmware tab located at https://atlona.com/product/ AT-AVA-EX70-KIT. Unzip the .bin file to an easy to locate area of the local PC. Connect the transmitter’s FW micro USB port to a PC using a micro USB to USB A cable (purchased separately).
  • Page 7 Installation Guide AT-AVA-EX70-KIT Atlona, Inc. (“Atlona”) Limited Product Warranty Cont. Limited Product Warranty Terms – New Products • 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013. • 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013.
  • Page 8 Installation Guide AT-AVA-EX70-KIT Atlona, Inc. (“Atlona”) Limited Product Warranty Cont. Disclaimers This Limited Product Warranty does not imply that the electronic components contained within Atlona’s products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona’s products may be used in conjunction with.
  • Page 9 Installation Guide AT-AVA-EX70-KIT Notes...
  • Page 10 Installation Guide AT-AVA-EX70-KIT Notes...
  • Page 11 Installation Guide AT-AVA-EX70-KIT Notes...
  • Page 12 Installation Guide AT-AVA-EX70-KIT English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-ava-ex70-kit/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
