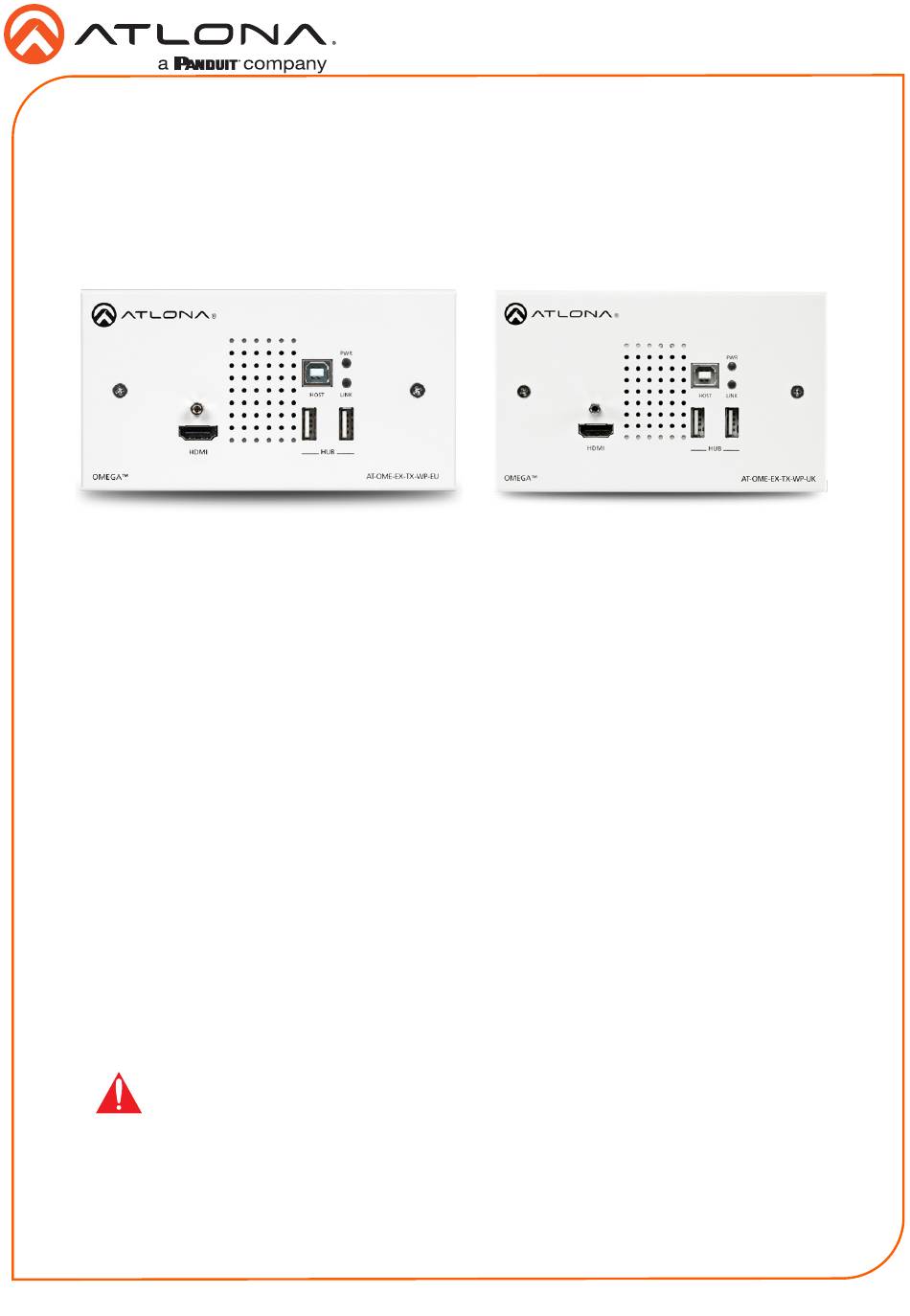

Omega
4K/UHD
Wallplate Transmitter for HDMI with HDBaseT Output and
USB
AT-OME-EX-TX-WP-E

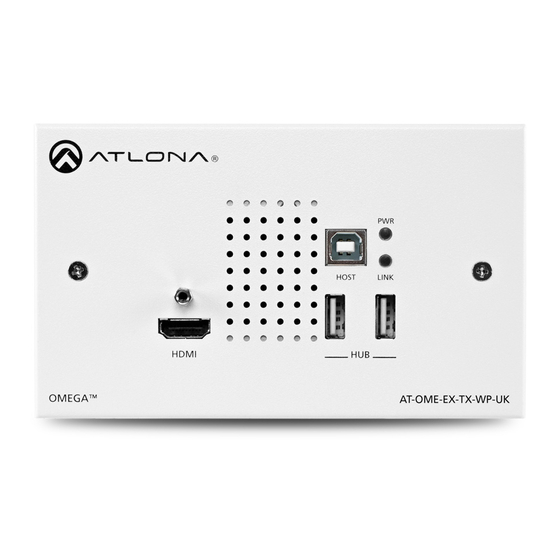

The Atlona AT-OME-EX-TX-WP-E is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus
embedded audio, control, and USB over distances up to 330 feet (100 meters). It is designed
for commercial installations in Europe, and includes interchangeable EU and UK faceplates and
brackets. Part of the Omega™ Series of integration products for modern AV communications
and collaboration, the OME-EX-TX-WP-E is HDCP 2.2 compliant and transmits RS-232 control
signals. With a matching HDBaseT receiver, the integrated USB extension addresses the
challenge of connecting between USB devices at remote locations, and is ideal for software
video conferencing and touch or interactive displays. The OME-EX-TX-WP-E includes a USB
2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone,
or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as
switchers with HDBaseT inputs.
Package Contents
1 x AT-OME-EX-TX-WP-E
1 x White EU wallplate
1 x White UK wallplate
1 x 3-pin captive screw connector
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-TX-WP-E for
the latest firmware updates and User Manual.
* The AT-OME-EX-TX-WP-E is not compatible with the AT-UHD-HDVS-300 system for extending
USB.
1
Installation Guide
AT-OME-EX-TX-WP-E

Advertisement

loading
Need help?

Need help?

Do you have a question about the Atlona Omega AT-OME-EX-TX-WP-E Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Panduit Atlona Omega AT-OME-EX-TX-WP-E Series

  • Page 1 Installation Guide AT-OME-EX-TX-WP-E Omega 4K/UHD ™ Wallplate Transmitter for HDMI with HDBaseT Output and AT-OME-EX-TX-WP-E The Atlona AT-OME-EX-TX-WP-E is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It is designed for commercial installations in Europe, and includes interchangeable EU and UK faceplates and brackets.
  • Page 2 Installation Guide AT-OME-EX-TX-WP-E HOST LINK HDMI OMEGA AT-OME-EX-TX-WP-EU HOST LINK AT-OME-EX-TX-WP-EU NOTE: Note that the AT-OME-EX-TX-WP-EU and AT-OME-EX-TX-WP-UK are functionally identical, except for the size of the wallplate. The AT-OME-EX-TX- WP-EU is shown above. HOST Connect a USB cable from the computer Connect up to two USB devices, such as to this port.
  • Page 3 Installation Guide AT-OME-EX-TX-WP-E RS-232 The AT-OME-EX-TX-WP-E provides an RS-232 port which allows communication between a control system and an RS-232 device. This step is optional. Use wire strippers to remove a portion of the RS-232 cable jacket. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires. Insert the TX, RX, and GND wires into correct terminal using the included 3-pin captive screw connector.
  • Page 4 Installation Guide AT-OME-EX-TX-WP-E Faceplate Removal and Assembly Removal of the faceplate requires that the AT-OME-EX-TX-WP-E be disassembled from the electrical box or mud ring. A small Phillips-head screwdriver is required to remove the faceplate. Unscrew both Phillips-head screws and the HDMI connector hex bolt from the front of the faceplate, as shown: Gently remove the faceplate by pulling it toward you.
  • Page 5: Installation

    Installation Guide AT-OME-EX-TX-WP-E Installation Connect a UHD/HD source to the HDMI port. OPTIONAL: Connect a USB cable from the host computer to the HOST port. OPTIONAL: Connect up to two USB devices, such as a speakerphone or keyboard to the HUB ports.
  • Page 6: Connection Diagram

    Installation Guide AT-OME-EX-TX-WP-E Connection Diagram Display E- RX A T- AT-HDVS-CAM VI CE LI NK AT-OME-EX-RX 2-gang electrical box or mud ring Wall cross-section Keyboard Wallplate (included) Microphone / Speaker L IN P - E X - W X - T E - E - O M AT-OME-EX-TX-WP-E...
  • Page 7: Led Indicators

    Installation Guide AT-OME-EX-TX-WP-E LED Indicators The PWR and LINK LED indicator on both the transmitter and receiver unit provides basic information on the current status of the AT-OME-EX-TX-WP-E. Description Solid green Unit is powered. Normal operating mode. Blinking green Unit is in firmware update mode. Refer to Updating the Firmware (page 8) for more information.
  • Page 8: Updating The Firmware

    Installation Guide AT-OME-EX-TX-WP-E Updating the Firmware Requirements: • AT-OME-EX-TX-WP-E • Firmware file • Computer running Windows • USB-A to USB-B cable Disconnect power from the AT-OME-EX-TX-WP-E, which can be done by disconnecting the category cable from the HDBaseT port on the receiver. Remove the faceplate to expose the hidden “firmware update”...
  • Page 9 Installation Guide AT-OME-EX-TX-WP-E The USB UPDATE folder will be displayed. If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer. Drag and drop the firmware file into the USB drive folder. After the firmware file has been placed in the folder, the firmware update process will begin. During the update process, the PWR LED indicator will flash green.
  • Page 10 Installation Guide AT-OME-EX-TX-WP-E Atlona, Inc. (“Atlona”) Limited Product Warranty Coverage Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service. Under its Limited Product Warranty, Atlona, at its sole discretion, will either: •...
  • Page 11 Installation Guide AT-OME-EX-TX-WP-E Remedy Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona. com for Atlona’s contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services.
  • Page 12 Installation Guide AT-OME-EX-TX-WP-E Exclusive Remedy To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose.
  • Page 13 Installation Guide AT-OME-EX-TX-WP-E Notes...
  • Page 14 Installation Guide AT-OME-EX-TX-WP-E Notes...
  • Page 15 Installation Guide AT-OME-EX-TX-WP-E Notes...
  • Page 16 Installation Guide AT-OME-EX-TX-WP-E English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-ome-ex-tx-wp-e/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ® The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
