Omega 4k/uhd hdmi over hdbaset tx/rx with usb, control, and poe

Advertisement

Omega
4K/UHD
HDMI Over HDBaseT TX/RX with USB, Control, and PoE
AT-OME-EX-KIT

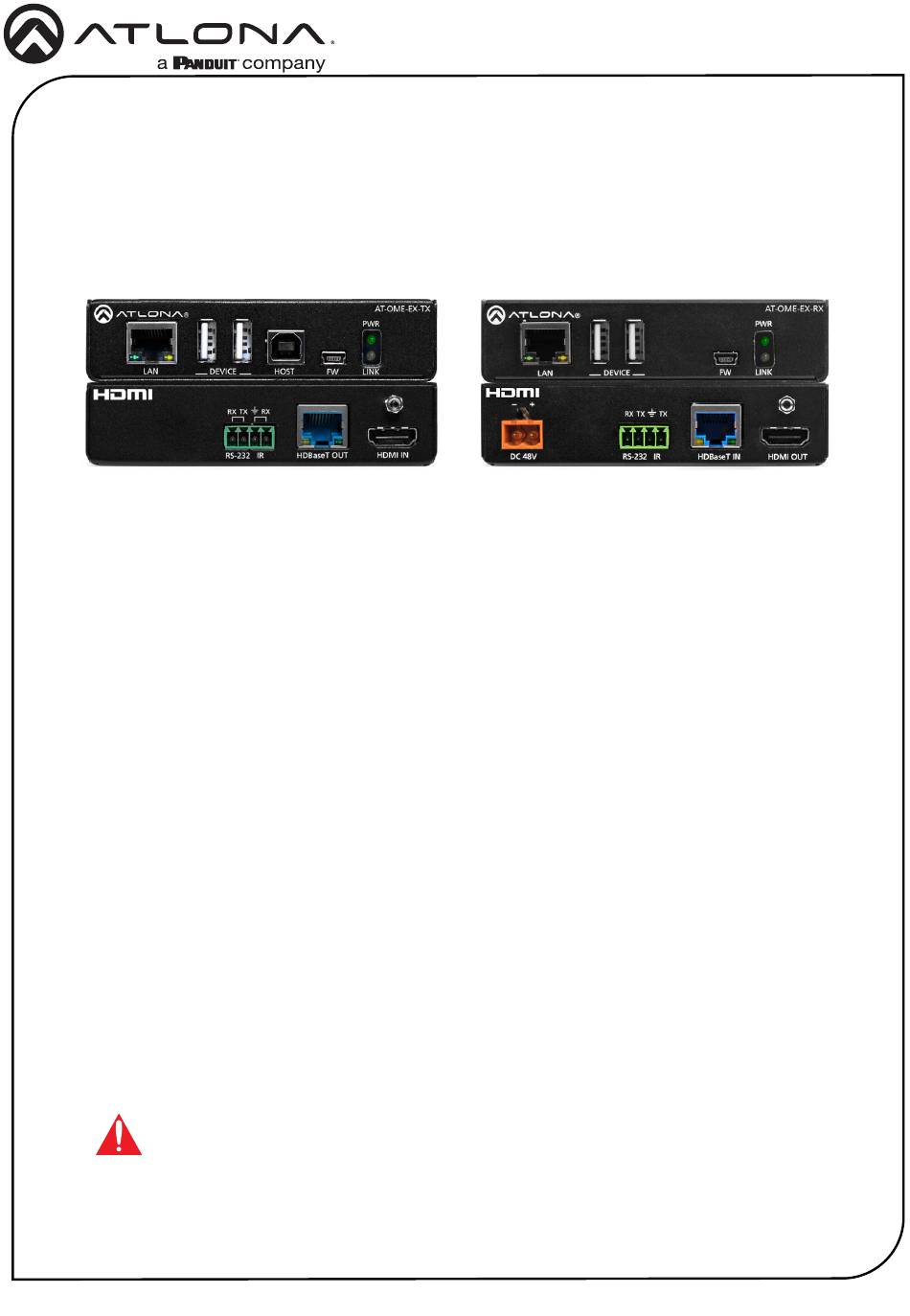

The Atlona AT-OME-EX-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus
embedded audio, control, Ethernet, and USB 2.0 over distances up to 330 feet (100 meters).
Part of the Omega
Series of integration products for modern AV communications and
collaboration, the OME-EX-KIT is HDCP 2.2 compliant and extends IR, RS-232, and IP control
signals. The integrated USB extension is ideal for software video conferencing and the use of
touch or interactive displays. The OME-EX-TX transmitter includes a USB host port for a PC,
plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. The
OME-EX-RX receiver provides two USB 2.0 interfaces for devices such as a camera or display.
The transmitter and receiver are available separately, for use with other Omega Series integration
products.*
Package Contents
1 x AT-OME-EX-TX
1 x AT-OME-EX-RX
2 x Captive screw connectors, 4-pin
1 x AT-IR-CS-TX
4 x Mounting plates
8 x Mounting screws
1 x 48 V DC power supply
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-KIT for the
latest firmware updates and User Manual.
* Both the AT-OME-EX-TX and AT-OME-EX-RX are not compatible with the AT-UHD-HDVS-300
system for extending USB.
1
Installation Guide
AT-OME-EX-KIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATLONA AT-OME-EX-KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for Panduit ATLONA AT-OME-EX-KIT

  • Page 1 HDMI Over HDBaseT TX/RX with USB, Control, and PoE AT-OME-EX-KIT The Atlona AT-OME-EX-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB 2.0 over distances up to 330 feet (100 meters). Part of the Omega Series of integration products for modern AV communications and ™...
  • Page 2 Installation Guide AT-OME-EX-KIT AT-OME-EX-TX OMEGA DEVICE HOST LINK Front LINK OMEGA AT-OME-EX-RX AT-OME-EX-TX RS-232 IR HDBaseT OUT HDMI IN Rear Connect a category cable from this port to a network switch. This cable provide IP pass- through transport control from a control system to the display (sink) device connected to the AT-OME-EX-RX.
  • Page 3 Installation Guide AT-OME-EX-KIT AT-OME-EX-RX OMEGA DEVICE LINK Front AT-OME-EX-RX DC 48V RS-232 IR HDBaseT IN HDMI OUT Rear Connect a category cable from this port to the display (sink) device. This cable provides IP pass-through transport control to the display (sink) device, from a control system connected to the AT-OME-EX-TX.
  • Page 4 Installation Guide AT-OME-EX-KIT RS-232 and IR The AT-OME-EX-KIT provides pass-through transport of RS-232 protocol and/or IR over HDBaseT, which allows communication between a control system and an RS-232 or IR device. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16”...
  • Page 5: Installation

    Installation Guide AT-OME-EX-KIT Installation Connect a UHD/HD source to the HDMI IN port on the AT-OME-EX-TX. Connect a UHD/HD display to the HDMI OUT port on the AT-OME-EX-RX. Connect a USB cable from the host computer to the HOST port on the AT-OME-EX-TX. Connect up to two USB devices (speakerphone, etc.) to the DEVICE ports on the AT-OME- EX-TX.
  • Page 6: Led Indicators

    Installation Guide AT-OME-EX-KIT LED Indicators The PWR and LINK LED indicators on both the AT-OME-EX-TX and AT-OME-EX-RX provide basic information on the current status of the AT-OME-EX-KIT. The information in the table below applies to both the AT-OME-EX-TX and AT-OME-EX-RX. Description Solid green Unit is powered.
  • Page 7: Mounting Instructions

    Installation Guide AT-OME-EX-KIT Mounting Instructions Both the AT-OME-EX-TX and AT-OME-EX-RX include mounting brackets, which can be used to attach the unit to any flat surface. Use the included screws to attach the mounting brackets. Using a small Phillips screwdriver, remove the two screws from the side of the enclosure. L IN V IC L IN...
  • Page 8 Installation Guide AT-OME-EX-KIT Repeat Steps 1 through 3 to attach the second mounting bracket to the opposite side of the unit. Mount the unit to a flat surface using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended. L I N V I C L I N...
  • Page 9 Installation Guide AT-OME-EX-KIT Analyzer Software The Analyzer software provides HDBaseT testing and debugging. The software can be downloaded from the Resource tab located at https://atlona.com/product/at-ome-ex-kit/. HDBaseT Testing Launch the Analyzer software. Make sure the system is powered and the transmitter and receiver are connected using the HDBaseT OUT and HDBaseT IN ports.
  • Page 10 Installation Guide AT-OME-EX-KIT Debug Launch the Analyzer software. Make sure the system is powered and the transmitter and receiver are connected using the HDBaseT OUT and HDBaseT IN ports. Connect an active source to the transmitter and an active display to the receiver. Set the source to the highest resolution.
  • Page 11: Updating The Firmware

    HDBaseT IN HDMI OUT DC 48V RS-232 IR HDBaseT IN HDMI OUT Installation Guide RS-232 IR HDBaseT OUT HDMI IN AT-OME-EX-KIT Updating the Firmware Requirements: • AT-OME-EX-TX • AT-OME-EX-RX • Firmware file • Computer running Windows • USB-A to USB mini-B cable •...
  • Page 12 Installation Guide AT-OME-EX-KIT Click the Browse button and select the firmware file. Once the firmware file is selected, it will appear in the Firmware File field. If the firmware file is not displayed in this field, click the Refresh button. Click the Update Firmware button.
  • Page 13 Installation Guide AT-OME-EX-KIT 10. After the update process has completed, the Copy process completed message will be displayed in the message window. The PWR LED indicator, on the front panel, will flash green while the unit is being updated. Do not disconnect the USB cable during the update process. When the PWR LED stops flashing and is solid green, the update process will be complete.
  • Page 14 Installation Guide AT-OME-EX-KIT Notes...
  • Page 15 Installation Guide AT-OME-EX-KIT Notes...
  • Page 16: Warranty

    Installation Guide AT-OME-EX-KIT Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-ome-ex-kit/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ®...
