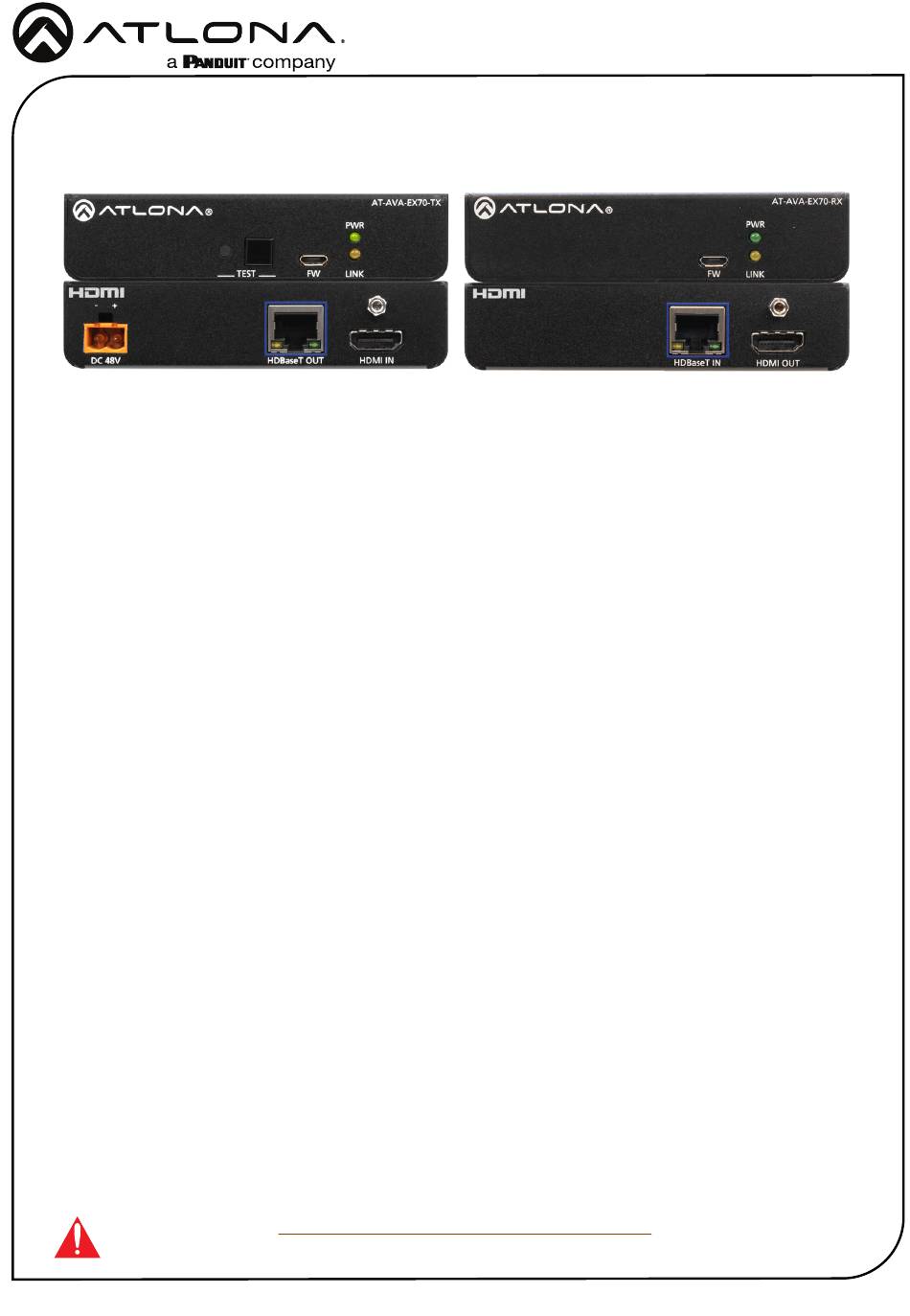

4K/UHD HDMI Extender Kit with Remote Power
AT-AVA-EX70-KIT
The Atlona AT-AVA-EX70-KIT is an Avance™ Series HDBaseT extender kit with remote power
for transmitting 4K/UHD 60Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60Hz video up to
230 feet (70 meters). In addition to video with embedded multi-channel audio signals, remote
Power is provided from the transmitter to the receiver on the single CAT6A/7 cable. Integrated
HDBaseT link status testing allows quick verification of cable, termination, and link quality. HDMI
clock stretching and EDID filtering are included to ensure the integrity of video transmission as
well as compatibility with the widest array of sources and display devices. The AT-AVA-EX70-KIT
includes both transmitter and receiver endpoints. Compact enclosures and included brackets
allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX70-KIT
delivers a cost-effective solution for extension of video, audio, and receiver power at resolutions
up to 4K/UHD.

Package Contents

1 x AT-AVA-EX70-TX
1 x AT-AVA-EX70-RX
1 x 2-pin captive screw connector
4 x Mounting brackets
IMPORTANT: Visit
updates and Installation Guide.
https://atlona.com/product/AT-AVA-EX70-KIT
1
8 x Mounting screws
1 x 48V DC power supply
1 x IEC cable
1 x Installation Guide
AT-AVA-EX70-KIT
for the latest firmware

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atlona Avance Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Panduit Atlona Avance Series

  • Page 1 Installation Guide AT-AVA-EX70-KIT 4K/UHD HDMI Extender Kit with Remote Power AT-AVA-EX70-KIT The Atlona AT-AVA-EX70-KIT is an Avance™ Series HDBaseT extender kit with remote power for transmitting 4K/UHD 60Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60Hz video up to 230 feet (70 meters).
  • Page 2 Installation Guide AT-AVA-EX70-KIT Panel Descriptions AT-AVA-EX70-RX AT-AVA-EX70-TX LINK TEST LINK HDBaseT IN HDMI OUT DC 48V HDBaseT OUT HDMI IN TEST Quick and easy test for category cables. Not used at this time. Use the button to start the test and the POWER and LINK LEDs LED to determine pass or fail.
  • Page 3 Installation Guide AT-AVA-EX70-RX AT-AVA-EX70-TX AT-AVA-EX70-KIT HDBaseT LED Descriptions LINK TEST LINK HDBaseT OUT HDMI IN HDBaseT IN HDMI OUT Green LED Yellow LED When a category cable is connected This LED displays the status of the and receiving signal this LED will be HDBaseT firmware.
  • Page 4 Installation Guide AT-AVA-EX70-KIT Mounting Instructions The AT-AVA-EX70-KIT includes two mounting brackets and four mounting screws each, which can be used to attach the units to any flat surface. Position one of the mounting brackets, as shown below, aligning the holes on Included screws the side of the enclosure with one set of holes on the mounting bracket.
  • Page 5 Installation Guide AT-AVA-EX70-KIT Use the 18/2 AWG stranded wires to connect each extender into the wago splicers, ensuring that the same wire color is connected to each wago splicer. The colors are generally black/red, so it is best to connect the black wire to the ground/- port and splicer with the black wire from the power supply and use the red to connect to the power/+ port and the splicer with the white wire from the power supply.
  • Page 6 Installation Guide AT-AVA-EX70-KIT TEST The transmitter has the ability to test the HDBaseT cable quality through the front panel. Press the test button on the front panel of the transmitter to start the test, the LED will display the testing results. AT-AVA-EX70-TX TEST TEST...
  • Page 7 Installation Guide AT-AVA-EX70-KIT Notes...
  • Page 8 Installation Guide AT-AVA-EX70-KIT Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-ava-ex70-kit/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
