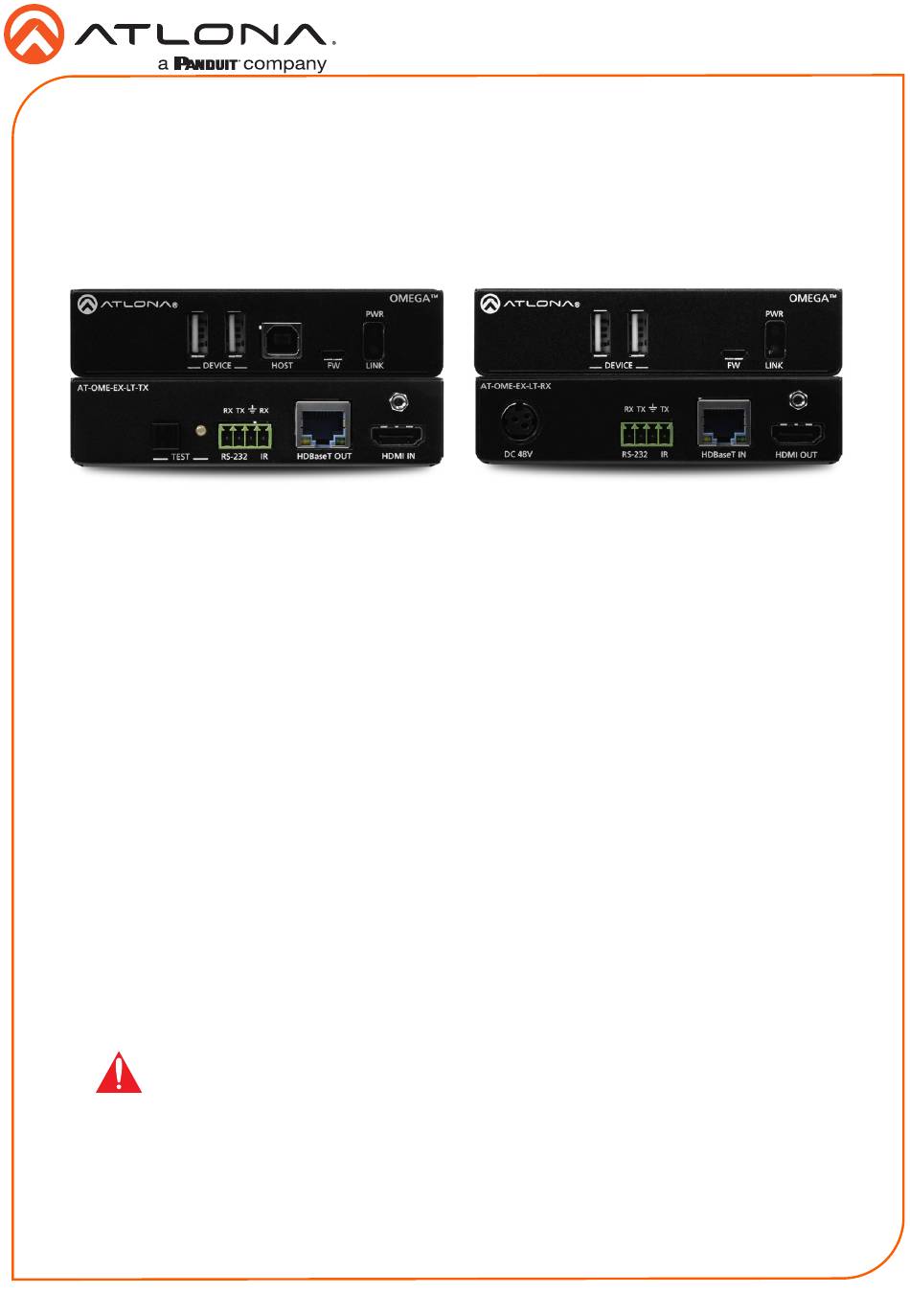

Omega
4K/UHD
HDMI Over HDBaseT TX/RX with USB
AT-OME-EX-KIT-LT
The Atlona AT-OME-EX-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus
embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up
to 230 feet (70 meters) for 1080p/60 video. Part of the Omega™ Series of integration products for
modern AV communications and collaboration, the OME-EX-KIT-LT is HDCP 2.2 compliant and
extends IR and RS-232 control signals. The integrated USB extension addresses the challenge
of connecting between USB devices at remote locations, and is ideal for software video
conferencing and touch or interactive displays. The transmitter includes a USB 2.0 host interface
for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and
mouse. The receiver provides two USB interfaces for devices such as a camera, soundbar, or
display.*
Package Contents
1 x AT-OME-EX-LT-TX
1 x AT-OME-EX-LT-RX
2 x Captive screw connectors, 4-pin
2 x Mounting plates
4 x Mounting screws
1 x 48 V DC power supply
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-KIT-LT for the
latest firmware updates.
* Both the AT-OME-EX-LT-TX and AT-OME-EX-LT-RX are not compatible with the AT-UHD-
HDVS-300 system for extending USB.
1
Installation Guide
AT-OME-EX-KIT-LT

Advertisement

loading
Need help?

Need help?

Do you have a question about the Atlona Omega AT-OME-EX-KIT-LT Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Panduit Atlona Omega AT-OME-EX-KIT-LT Series

  • Page 1 Installation Guide AT-OME-EX-KIT-LT Omega 4K/UHD ™ HDMI Over HDBaseT TX/RX with USB AT-OME-EX-KIT-LT The Atlona AT-OME-EX-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up to 230 feet (70 meters) for 1080p/60 video.
  • Page 2 Installation Guide AT-OME-EX-KIT-LT AT-OME-EX-LT-TX OMEGA DEVICE HOST LINK Front AT-OME-EX-TX-LT AT-OME-EX-RX-LT DC 48V TEST RS-232 HDBaseT OUT HDMI IN Rear DEVICE Connect up to two USB devices (e.g. mouse, keyboard, etc.) to these ports. These ports provide 2.5 W per USB device interface. HOST Connect a USB cable from this port to the host computer.
  • Page 3 Installation Guide AT-OME-EX-KIT-LT AT-OME-EX-LT-RX OMEGA OMEGA DEVICE LINK Front AT-OME-EX-RX-LT DC 48V RS-232 HDBaseT IN HDMI OUT HDMI IN Rear DEVICE Connect up to two USB 2.0 devices (e.g. mouse, keyboard, etc.) to these ports. These ports provide 2.5 W per USB device. Connect a mini USB-to-USB cable from this port, to a computer, to update the firmware.
  • Page 4 Installation Guide AT-OME-EX-KIT-LT RS-232 and IR The AT-OME-EX-KIT provides pass-through transport of RS-232 protocol and/or IR over HDBaseT, which allows communication between a control system and an RS-232 or IR device. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16”...
  • Page 5: Installation

    Installation Guide AT-OME-EX-KIT-LT Installation Connect a UHD/HD source to the HDMI IN port on the AT-OME-EX-LT-TX. Connect a UHD/HD display to the HDMI OUT port on the AT-OME-EX-LT-RX. Connect a USB cable from the host computer to the HOST port on the AT-OME-EX-LT-TX. Connect up to two USB devices (speakerphone, etc.) to the DEVICE ports on the AT-OME- EX-LT-TX.
  • Page 6: Led Indicators

    Installation Guide AT-OME-EX-KIT-LT LED Indicators The PWR and LINK LED indicators on both the AT-OME-EX-LT-TX and AT-OME-EX-LT-RX provide basic information on the current status of the AT-OME-EX-KIT. The information in the table below applies to both units. Refer to Testing the HDBaseT Connection (page 7) more information on the TEST LED indicator.
  • Page 7 Installation Guide AT-OME-EX-KIT-LT Testing the HDBaseT Connection Make sure the AT-OME-EX-KIT-LT is powered. It is unnecessary to disconnect the source and display from the system. Press and release the TEST button on the front panel of the AT-OME-EX-LT-TX. TEST button AT-OME-EX-RX-LT AT-OME-EX-TX-LT DC 48V...
  • Page 8: Mounting Instructions

    Installation Guide AT-OME-EX-KIT-LT Mounting Instructions Both the AT-OME-EX-LT-TX and AT-OME-EX-LT-RX provide two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosures.
  • Page 9 Installation Guide AT-OME-EX-KIT-LT Repeat these steps to attach the second mounting bracket to the opposite side of the unit. Mount the unit to a flat surface using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended. L I N V I C L I N...
  • Page 10: Updating The Firmware

    Installation Guide AT-OME-EX-KIT-LT Updating the Firmware Requirements: • AT-OME-EX-LT-TX • AT-OME-EX-LT-RX • Firmware file • Computer running Windows • USB-A to USB mini-B cable NOTE: The procedure outlines the update process for the AT-OME-EX-LT-TX. However, the same procedure applies to the AT-OME-EX-LT-RX. The AT-OME- EX-LT-TX and AT-OME-EX-LT-RX can be updated in any order.
  • Page 11 Installation Guide AT-OME-EX-KIT-LT Notes...
  • Page 12 Installation Guide AT-OME-EX-KIT-LT Toll free US International atlona.com 877.536.3976 41.43.508.4321 • • © 2020 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.
