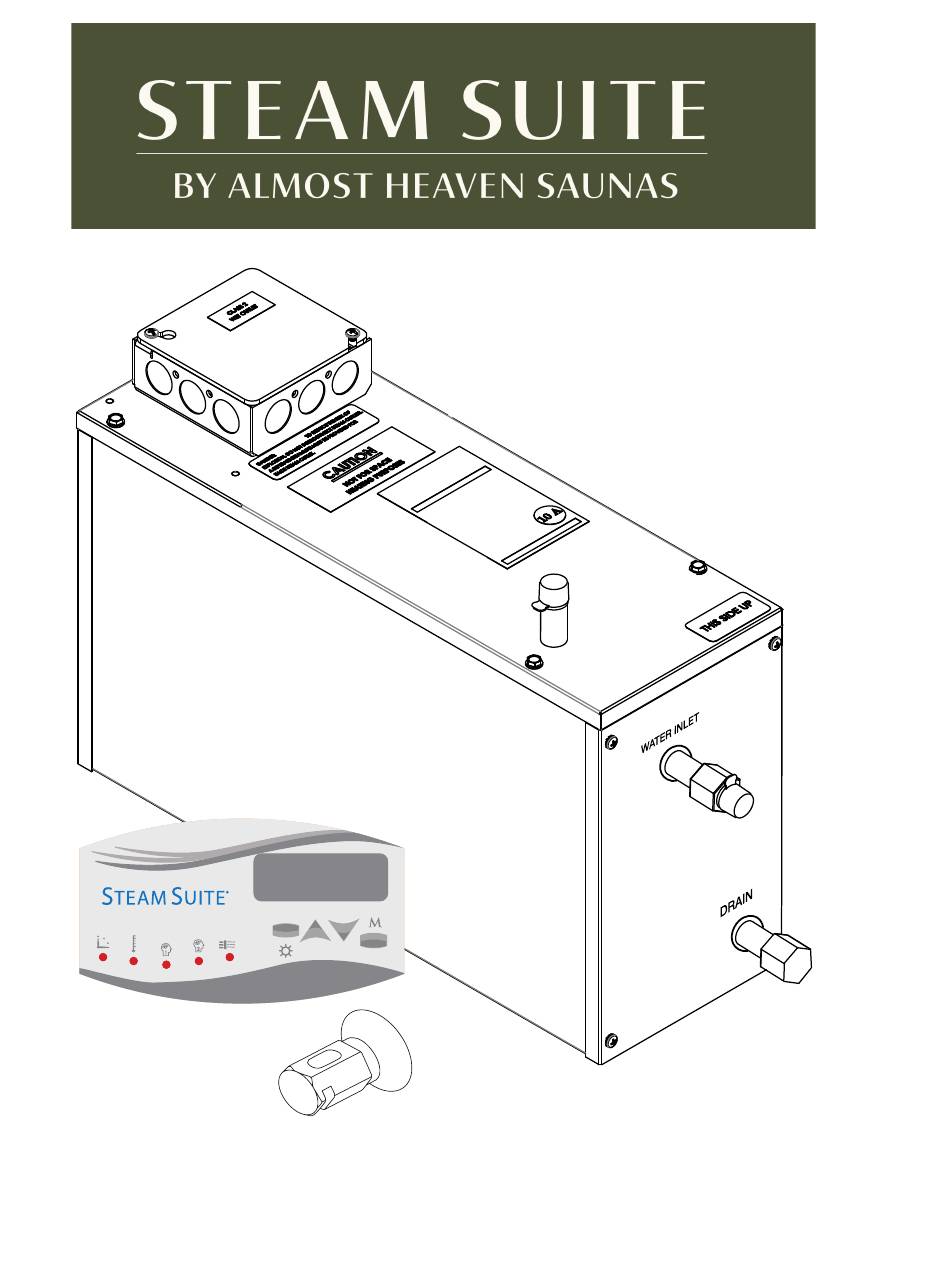

- Page 1 Steam Suite Series I Models: LS1-130-xx LS1-375-xx Installation Operation Manual...
-
Page 2: Important Installation Information
Important Installation Information Make sure the walls, ceiling and floor materials are suitable for use with steam. If using acrylic walls, they must be steam rated from their manufacturer. Almost Heaven only recommends specific generators for acrylic modules. Ensure electrical power is turned off for the dura- tion of the installation PLEASE REVIEW WARNINGS BELOW AND LEAVE THIS MANUAL WITH HOMEOWNER. -
Page 3: Electrical Wiring
Sizing the Unit When planning to install a unit, make sure the unit is sized properly. Calculate the shower area (Length x Width x Height = Cubic Feet) The model chart below has the cubic feet rating of each generator. SteamSuite generators can be placed up to 50 feet from the shower;... - Page 4 Placing the Generator Select a location near the steam shower. Typical Generator must be installed within 50 feet of the steam locations include: closet, vanity cabinet, climate controlled shower and must be in a dry, non-combustible, well attic or basement. Must be within 50 feet. ventilated space with 6"...
- Page 5 Water Supply and Drain Pan DO NOT use galvanized fittings. Use copper or brass fittings only! Connect a tee to the existing cold water line. DO NOT use PEX or PVC tubing. Install copper pipe from the tee to create inlet line for unit. DO NOT plumb the pressure relief valve (if equipped) into the steam Install a brass shut off valve on the water inlet line line.
- Page 6 Steam Line and Steamhead Determine the steamhead placement in the shower to run the steam line from the generator to the steamhead. There are a couple of things to know about the placement of the steamhead and steam line itself. DO NOT install any valve in the steam line.
- Page 7 Steamhead Location DO NOT install the steamhead near the seating area or the Connect a 1/2" NPT brass pipe or copper tubing to the user. steam outlet union (not included) on the generator, running the pipe to the steamhead location in the wall to Install the steamhead 12"...
- Page 8 Steam Suite Control INSTALLATION INSTRUCTIONS...
- Page 9 Important Installation Information The Control must be installed inside the shower. The control should be installed 60" from the floor of the shower and away from the steamhead. PLEASE REVIEW WARNINGS BELOW AND LEAVE THIS MANUAL WITH HOMEOWNER. DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED WITH YOUR DOCTOR AND RECEIVED WRITTEN PERMISSION TO DO SO. USE OF THIS PRODUCT MAY BE HAZARDOUS TO YOUR HEALTH.
- Page 10 Tools and Materials Parts enclosed Steamhead Controller Silicone Installation instructions, warranty, Control coupler static cling warning label Materials needed: Tools needed: o Steam Suite control o 1-1/16" drill o Silicone o Drill motor o Other materials as required o Other tools as required...
-
Page 11: Control Installation
Control Installation Step 1: Position the control four to six feet from the floor inside the steam room. Drill one 1-1/16" hole in the wall. Step 2: Run the control wire from the generator through the 1-1/16" hole. Carefully connect the wire to the controls connector. -
Page 12: Operation
Operation To set the clock time To set the time press the “M” button and the colon will stop flashing. Use the up/down buttons to modify the time. Press and hold for a faster rate 12 : 00 of change. Once you have reached the current time, press the “M” button again and the colon will start flashing again. - Page 13 Operation continued program To set memory programs To set the memory press the “M” button three times until “P1” (program one) is displayed. Do not press any buttons for six seconds, and the time light will flash. Then use the up/down arrows to adjust to the desired length.
- Page 14 STEAM SUITE LS1 SERIES UNITS HAVE A 2 YEAR AT FACTORY WARRANTY ALMOST HEAVEN will repair the specific failure on your ALMOST HEAVEN generator manufactured after October 1, 2024, for two years. All expenses required to remove and send the unit to the factory, return and reinstall the unit is the responsibility of the owner. Proof of purchase/installation date are required for warranty.
