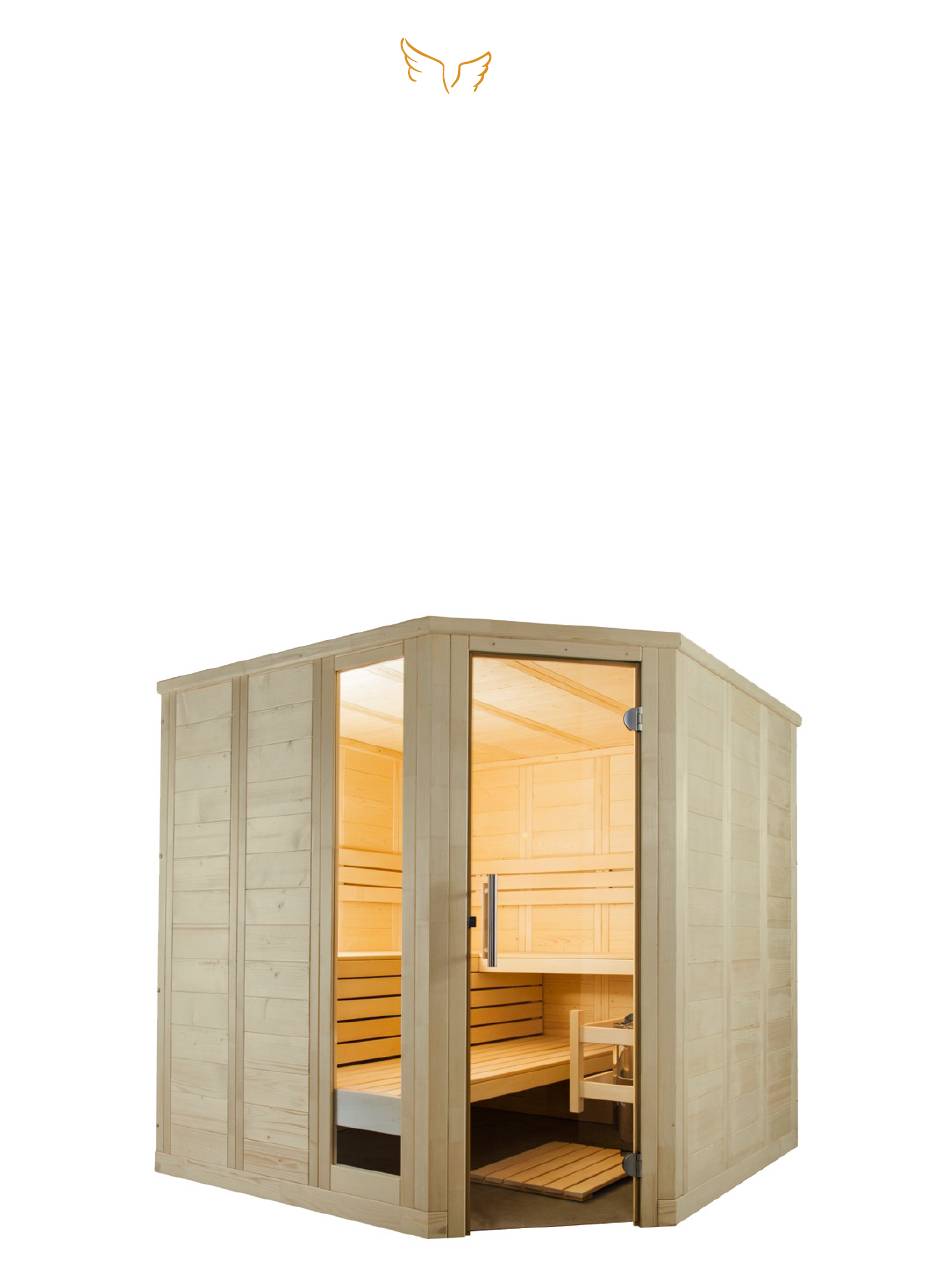

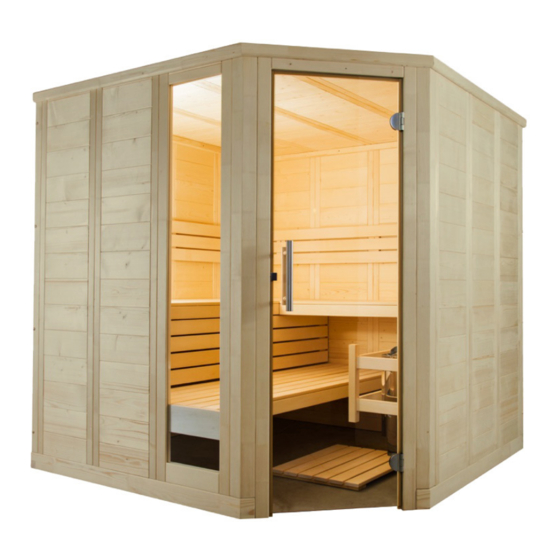

- Page 1 Almost Heaven Saunas ® T H E A U T H E N T I C S A U N A E X P E R I E N C E Patterson Sauna Installation & Owner’s Manual...
-
Page 2: Electrical Requirements
It is suggested that you lay out all of the components so that it is easy to identify the pieces once you get started with assembly. You will need the following tools to assemble your Patterson Sauna: Rubber mallet... - Page 3 Wall Element Sections N=Narrow W=Wide P=Post Almost Heaven Saunas STEP 3 ® - Find a wide wall element and position on the left of the rear sauna bottom rail. (On all T H E A U T H E N T I C S A U N A E X P E R I E N C E wall elements the flat edge is the top and the groove that will fit over the tongue on the bottom rails is on the bottom.) With one person holding this wall element have another person position...
- Page 4 STEP 4 - Verify that the element wall sections are square to the rails, perpendicular to each other, and that the flat top of the wall elements and corner posts align. STEP 5 - Using a cordless drill with the appropriately sized bit (included) use 6x20 screws and secure the 90°...
- Page 5 STEP 7 - Place another 90° corner post to the end element and secure with 6x20 screws. STEP 8 - Continue the addition of wide wall elements (W) by adding (4) of the wide wall element sections along the second long rail.
- Page 6 STEP 10 - Continue to assemble the front short wall by adding (2) of the narrow wall element sections (N) followed by (1) of the narrow wall element sections with the edge clips facing to the door opening. STEP 11 - Install (1) of the narrow wall elements (N) on the other short wall (this will connect to the wall element you installed in step 3.)
- Page 7 Clips slide into each other. Loosen slightly if necessary. STEP 13 - Install the (2) 45° corner posts to the narrow wall elements (one wood, the other glass) that frame the door opening. Once the corner post is in place you can nudge it into place with a rubber mallet.
- Page 8 STEP 16 - In the same way you installed the 45° corner posts, you will now install the doorframe. Raise both sides of the doorframe - you MUST use two people and keep the doorframe level – several inches above the 45° corner posts and then follow the same procedure as in step 13.
- Page 9 STEP 19 - You will now install the bench supports. On the shorter left sauna wall and longer right sauna wall of the sauna, from the floor measure 34” and make a pencil mark. Position the top of the 23” upper bench support at the mark and use a level to insure that the support is level to the ground.
- Page 10 STEP 22 - Place the upper bench onto the upper bench supports. Once the upper bench is in place screw it into the right and left bench supports using (4) 4x60 screws, two on each side and in between the slats. Then, use (4) 4x60 screws and attach the rear of the bench to the rear wall from below the bench.
- Page 11 STEP 25 - Position the side bench by placing the one end on the bench support you installed in step 24. With one person holding the bench, position the other end so that it is level with the rear upper bench. Using 5x70 screws, attach the side bench to the rear bench from the bottom side.
- Page 12 STEP 28 - Locate the vent cover and position over the wall opening. Attach with (40) 3.5x40 screws. STEP 29 - Locate the exterior roof trim pieces. These will attach to the exterior top perimeter of the sauna. The pieces create an “L” around the top edge and will be screwed to the roof sections from the top using 3.5x40 screws.
- Page 13 STEP 31 - Find the board you set aside in step 15. Please it on the floor of the door opening and the place the glass door with hinges on this board. (This allows you to install the glass door with a gap at the floor) Screw the hinges into the frame of the door using the screws that were included with...
-
Page 15: Operation
Dress only after you have cooled down completely. NOTE: Whatever your sauna regimen, it is important that you keep yourself hydrated by drinking plenty of water! Almost Heaven Saunas ®...
