Bridgeport Sauna
Installation &
Owner's Manual
Revised February 2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bridgeport and is the answer not in the manual?

Questions and answers

Related Manuals for Almost Heaven Saunas Bridgeport

Summary of Contents for Almost Heaven Saunas Bridgeport

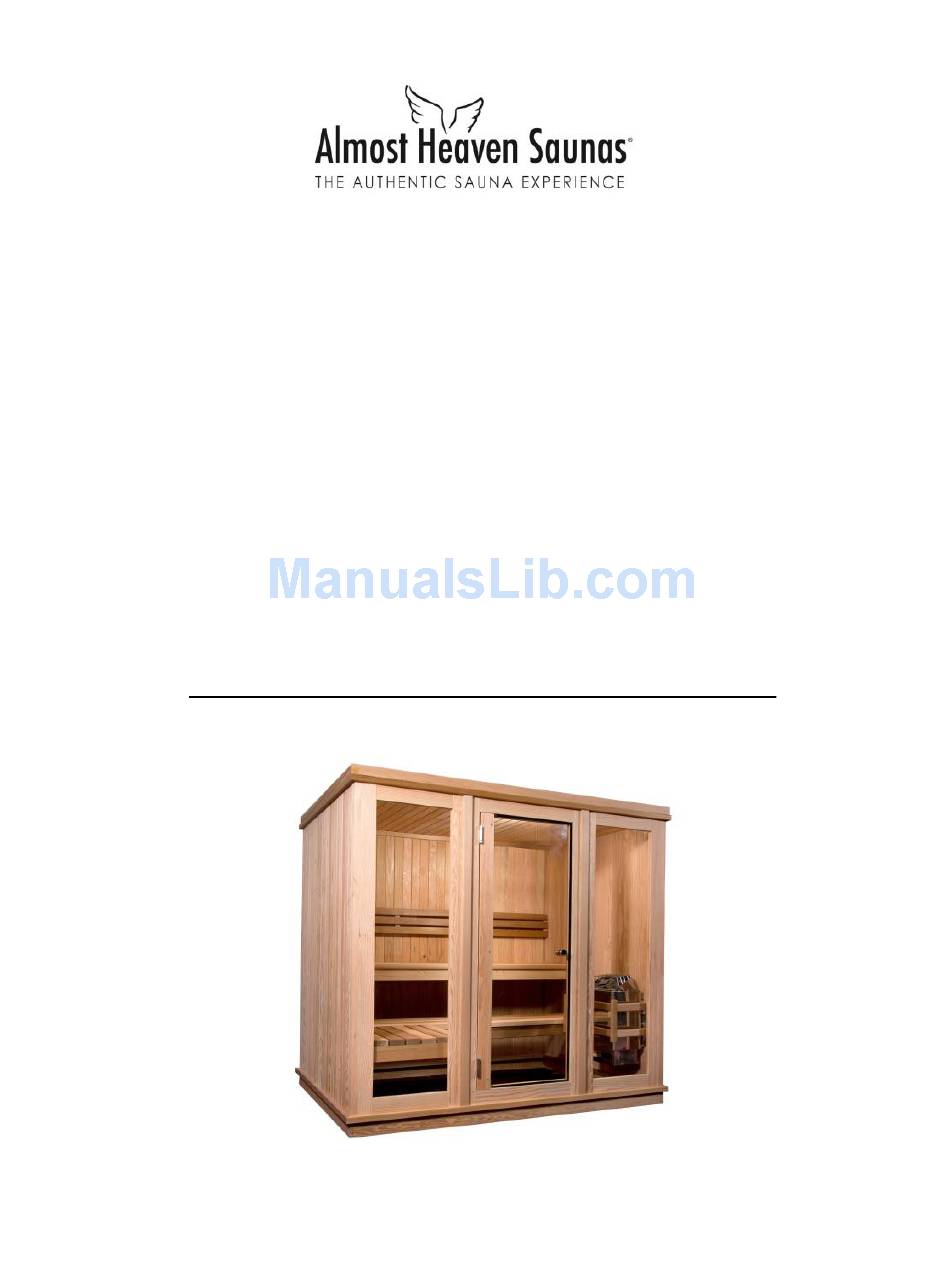

  • Page 1 Bridgeport Sauna Installation & Owner’s Manual Revised February 2017...
  • Page 2 ASSEMBLY You should use two people for the assembly of the Bridgeport Sauna. The wall and roof sections are large and need two people to lift and hold in place during assembly. BASIC TOOLS...
  • Page 3 1. Connect the 4 FLOOR RISERS Your existing floor will serve as the floor for your sauna. The pre-fabricated rails and risers will be placed on your existing floor and provide the structural support for the sauna room. The 4 floor risers are pre-drilled and are assembled with 2”...
  • Page 4 ILLUSTRATION 1 The 10 wall sections, A– J, will be positioned in the grooves of the completed wall support section as shown. Completed Wall Support 4. Position WALL SECTION A & B Position Wall Sections A & B in the groove of the rail on the left rear corner of the sauna according to the guide on ILLUSTRATION 1.
  • Page 5 7. Position WALL SECTION D Position Wall Section D on the right rear of the sau- na according to the guide on ILLUSTRATION 1. NOTE: Wall Section D will attach to Wall Section C by way of the tongue and groove profile but will not be fastened with screws.
  • Page 6 11. Position DOOR SECTION H Position Door Section H on the center front of the sauna according to the guide on ILLUSTRATION 1. 12. Position WINDOW SECTION I Position Window Section I on the left front of the sauna according to the guide on ILLUSTRATION 1.
  • Page 7 15. Attach ROOF SUPPORT over walls Position the completed Roof Support over the wall sections. Once in place on all 4 sides, use 2” screws to attach Roof Support to wall sections. Use 4 evenly spaced screws per rail. NOTE: Tap the Roof Support firmly in place with a rubber mallet so wall sections are fully in- serted into the groove before screwing into place.
  • Page 8 18. Attach ROOF TRIM Find the package of 4 Roof Trim pieces and attach to the raw edge of the Roof Sections with finish nails. NOTE: The trim pieces are not pre-drilled. You may install using finish nails. Attach Roof Trim pieces 19.
  • Page 9 Once you have attached the Lower Side Bench to the Lower Long Bench and the support boards to the wall panels, it will all look like this. 21. Attach LOWER LONG BENCH to bench supports. Front support board (Rear support board is hidden) Using 2”...
  • Page 10 26. Attach LONG BACK 24. Measure Height 25. Drill Hole for LIGHT REST for LONG BACK CORD Use 2” screws and pre- REST The LED lighting comes in- drilled holes to attach the Measure the desired stalled on the back of the Back Long Back Rest to Wall position at which you Rest.

  • Page 11: Heater Installation

    29. HEATER INSTALLATION Mount the heater as shown in the manufacturer's instructions. The heater should be mounted on Wall Section F, over the vents and 7” from the floor of the sauna. All the necessary hardware is supplied with the heater. Drill a hole below and behind the heater to run the wire and/or conduit according to local electri- cal codes.
  • Page 12 34. Attach DOOR KNOB Take the two sections of the door knob and insert the thread through the hole in the door. Tighten so that handles are snug to glass. NOTE: Hand tighten only and be sure rubber gas- ket is between knob and glass. Attach Door Knob to Door...

  • Page 13: Operation

    OPERATION After the sauna has been installed, sweep down the inside to remove any sawdust and wood shavings, and then vacuum completely. Using a damp cloth and warm water, wipe down the entire sauna including the benches to remove any remaining dirt, dust and debris. Rinse off the sauna stones and install them in or on the heater in accordance with the heater manufacturer’s instructions.
