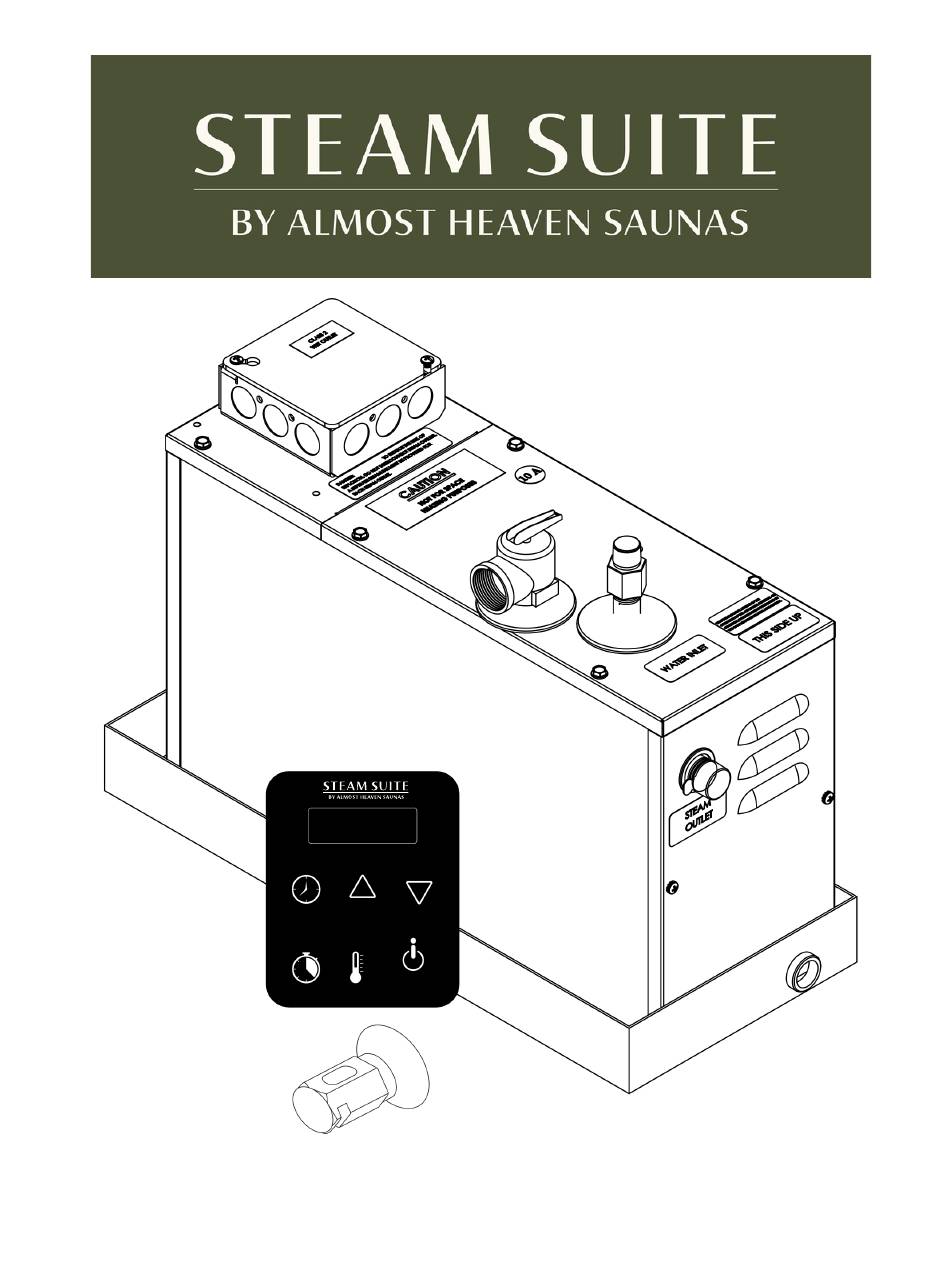

- Page 1 ON / OFF Steam Suite Series II Models: LS2-130-xx LS2-375-xx Installation Operation Manual...
-
Page 2: Important Installation Information
Important Installation Information Make sure the walls, ceiling and floor materials are suitable for use with steam. If using acrylic walls, they must be steam rated from their manufacturer. Almost Heaven only recommends specific generators for acrylic modules. Ensure electrical power is turned off for the dura- tion of the installation. -
Page 3: Electrical Wiring
Sizing the Unit When planning to install a unit, make sure the unit is sized properly. Calculate the shower area (Length x Width x Height = Cubic Feet) The model chart below has the cubic feet rating of each generator. ThermaSol’s generators can be placed up to 50 feet from the shower;... - Page 4 Placing the Generator Select a location near the steam shower. Typical locations Generator must be installed within 50 feet of the steam include: closet, vanity cabinet, climate controlled attic or shower and must be in a dry, non-combustible, well basement. Must be within 50 feet. Be sure to install unit ventilated space with 6"...
- Page 5 Water Supply and Drain Pan DO NOT use galvanized fittings. Use copper or brass fittings only! DO NOT use PEX or PVC tubing. Connect a tee to the existing cold water line. Install copper pipe from the tee to create inlet line for unit. DO NOT plumb the pressure relief valve (if equipped) into the steam line.
- Page 6 Steam Line and Steamhead Determine the steamhead placement in the shower to run the steam line from the generator to the steamhead. There are a couple of things you need to know about the placement of the steamhead and steam line itself. DO NOT install any valve in the steam line.
- Page 7 Steamhead Location DO NOT install the steamhead near the seating area or the Connect a 1/2" NPT brass pipe or copper tubing to the user. steam outlet union (not included) on the generator, Install the steamhead 12" from the floor or bathtub rim running the pipe to the steamhead location in the wall to connect with the steamhead.
- Page 8 ON / OFF Steam Suite Control INSTALLATION INSTRUCTIONS...
- Page 9 Important Information before You Install The Control must be installed inside the shower. The control should be installed 60" from the floor of the shower and away from the steamhead. PLEASE REVIEW WARNINGS BELOW AND LEAVE THIS MANUAL WITH HOMEOWNER. DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED WITH YOUR DOCTOR AND RECEIVED WRITTEN PERMISSION TO DO SO.
- Page 10 Tools and Materials Parts enclosed ON / OFF Steamhead Controller Silicone Installation instructions, warranty, Control coupler static cling warning label Materials needed: Tools needed: o Steam Suite control o 1-1/16" drill o Silicone o Drill motor o Other materials as required o Other tools as required...
-
Page 11: Control Installation
Control Installation Step 1: Position the control four to six feet from the floor inside the steam room. Drill one 1-1/16" hole in the wall. Step 2: Run the control wire from the generator through the 1-1/16" hole. Carefully connect the wire to the controls connector. -
Page 12: Operation
Operation To set the clock time Turn the control on by pressing the power button. Press and release the 12:00 clock button; the time will display and flash. Use the up/down buttons to modify the time. After four seconds of no buttons being pushed, the time Up/Down will be stored and control will display the current room temperature. - Page 13 Operation PowerFlush Press and hold the timer and the up/down buttons for five seconds to run PFLU the PowerFlush cycle, then release PFLU will appear on display, and the PowerFlush PowerFlush will begin in three minutes. The complete cycle will last 45 Press and hold minutes.
-
Page 14: Warranty Exclusions
STEAM SUITE LS2 SERIES UNITS HAVE A 3 YEAR AT FACTORY WARRANTY ALMOST HEAVEN will repair the specific failure on your ALMOST HEAVEN generator manufactured after October 1, 2024, for 3 years. All expenses required to remove and send the unit to the factory, return and reinstall the unit is the responsibility of the owner. Proof of purchase/installation date are required for warranty.
