Summary of Contents for Vicon ANAVIO VA-DVF05A-512

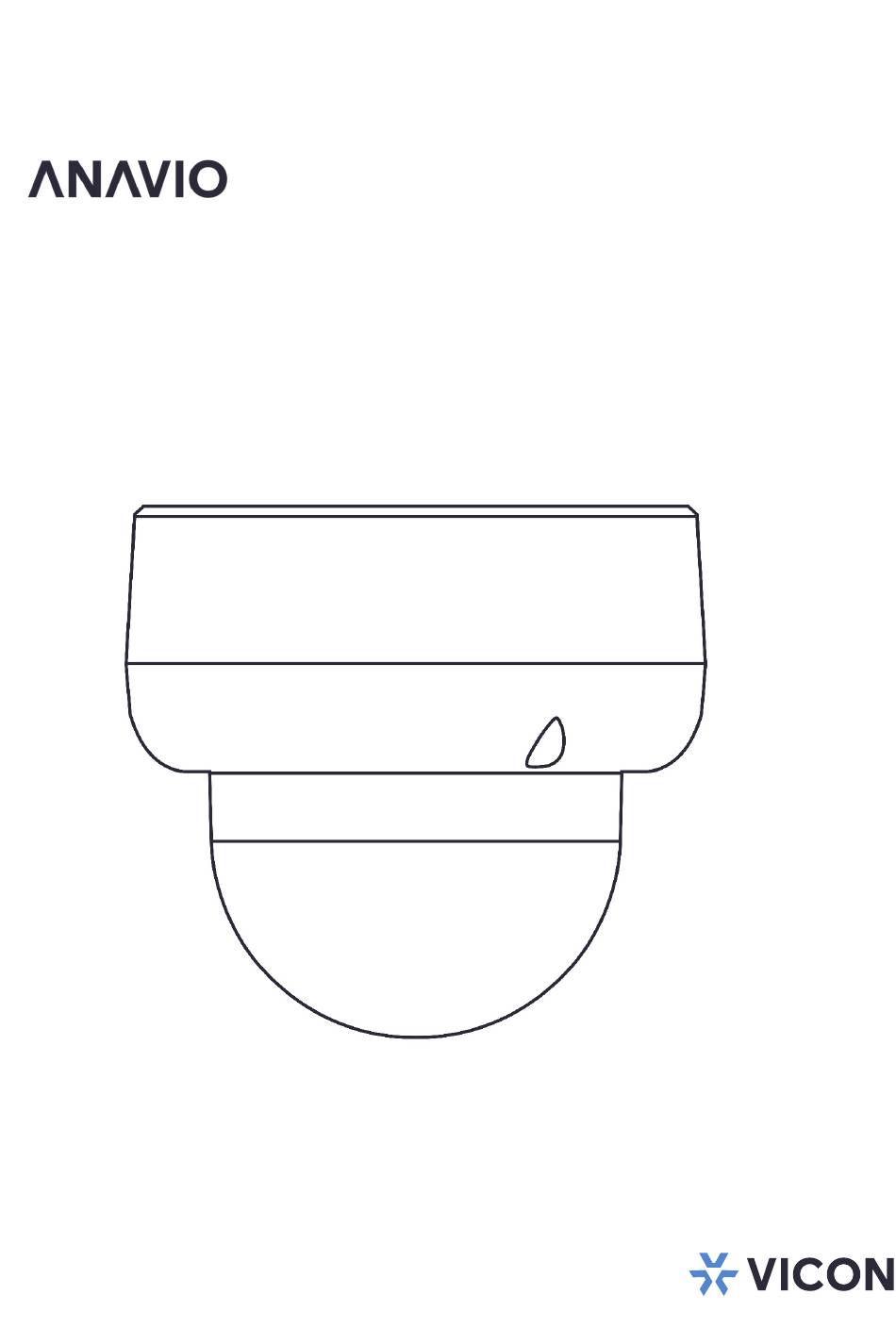

- Page 1 Quick Install Guide Dome Cameras VA-DVF05A-512 VA-DVF08A-1TB...
- Page 2 WARNING • This camera operates at 12 VDC/24 VAC/PoE (IEEE 802.3af Class 3). • Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. • We are NOT liable of any damage arising either directly or indirectly from inappropriate installation which is not depicted within this documentation.
-
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT Information to the user: This unit has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Table Of Contents
TABLE OF CONTENTS PRODUCT OVERVIEW PHYSICAL CHARACTERISTICS INSTALLATION AND MOUNTING PACKAGE CONTENTS INSTALLATION CHECKING APPEARANCE DISASSEMBLING THE CAMERA INSTALLING THE DESICCANT CONNECTING THE CABLES MOUNTING THE CAMERA POSITIONING THE CAMERA REASSEMBLING THE CAMERA LOWER DOME DEFOG... -
Page 5: Product Overview
1. PRODUCT OVERVIEW PHYSICAL CHARACTERISTICS 3.27 (83) 5.31 (135) FIGURE 1-1: PHYSICAL DIMENSIONS [IN. (MM)]... - Page 6 FIGURE 1-2: PARTS...
- Page 7 Camera Base Side Conduit Hole Base of the dome camera. The side hole for cable entry. Camera Module Bottom Conduit Hole The physical main body of the The bottom hole for cable entry. camera. Camera Cover Screws Black Conduit Hole Rubber Grommet Screws (3X) for affixing the camera For water and dust ingress protection;...
- Page 8 Typical Audio Input Wiring FIGURE 1-3: CAMERA INTERFACES...
-
Page 9: Video Output
Alarm/Audio Inputs and Outputs Default and Reset Button DI/DO (Digital Input/Digital Output) ports Press the D button for 6 seconds to are provided for external devices, e.g., restore the camera settings to factory door contacts, smoke detector, audible default. alarm, etc. Press the R button for less than 1 second •... -
Page 10: Installation And Mounting
2. INSTALLATION AND MOUNTING PACKAGE CONTENTS Ensure all items listed below are included in the packing box. • Dome Camera (Qty 1) • Plastic Anchor (Qty 4) • Pan Head Screw (TP4) (Qty 4) • T20 Security Torx Bit (Qty 1) •... -
Page 11: Checking Appearance
CHECKING APPEARANCE When unpacking, check to see if there is any visible damage to the appearance of the camera and its accessories. Remove the protective materials from the camera after every item is properly checked in accordance with the list in Package Contents. DISASSEMBLING THE CAMERA 1. -
Page 12: Installing The Desiccant
INSTALLING THE DESICCANT Lift to open the shroud. Secure the desiccant (via the sticker that is attached to the desiccant) on the inside part of the shroud as shown in the following figure. Desiccant FIGURE 2-2: INSTALLING THE DESICCANT Return the shroud back to its default position after desiccant installation. -
Page 13: Connecting The Cables
CONNECTING THE CABLES The I/O interfaces are on the front of the camera module. Make the appropriate cable connections. 1. Based on your needs, connect the power cable to the power port via one of the following 3 options. • 24 VAC: Connect a power cable that supplies 24 VAC power source to the power terminal. - Page 14 FIGURE 2-3: USING RUBBER GROMMET...
-
Page 15: Mounting The Camera
MOUNTING THE CAMERA 1. Place the supplied mounting template on a mounting surface. Drill 6 mm (0.2”) outer holes at the T1 (double gang box) or T2 (single gang box) template positions on the mounting surface. Insert 2 or 4 supplied plastic anchors into the holes. 3. - Page 16 5. Based on your installation requirements, use the bottom or side conduit hole on the camera base for cable entry and feed the cables through the camera base first. Then mount the camera base on a wall surface by tightly securing 4 TP4 screws (supplied) into the inserted plastic anchors.
-
Page 17: Positioning The Camera
POSITIONING THE CAMERA • Pan Adjustment (A): Rotate the lens camera assembly to the desired field-of-view. Note that the camera lens should not be rotated further than the point where the side conduit hole of the camera base is located. •... -
Page 18: Reassembling The Camera
REASSEMBLING THE CAMERA Assemble the camera cover with the camera base, both of which have red dots for indicating alignment; then fasten the 3 screws of the lower dome with the T20 security torx bit to complete the installation. NOTE: To avoid moving the tilt position, take care to angle the camera cover below the camera module when installing it. -
Page 19: Lower Dome Defog
CAMERA COVER DEFOG A Defog function, which heats up the camera to overcome certain extreme weather conditions (e.g., snow or frost) that may harm the operation of camera, is embedded within this camera. This defog heater ring is on between 140º to -40º F (60º... - Page 20 Vicon Industries Inc. does not warrant that the functions contained 24-Hour Technical Support: in this equipment will meet your requirements or that the operation 800-34-VICON (800-348-4266) will be entirely error free or perform precisely as described in the UK: 44/(0) 1489-566300 Toll Free: 800-645-9116 documentation.
