User Guide
EVALUATION BOARD SOFTWARE
SETUP FILES
Introduction
The AD9959 can be configured to perform many operations in various combinations. Preconfigured setup files have been included with the
AD9959 evaluation software that show the device in all three modes of operation: single tone, modulation, and linear sweep. These example
setup files serve as a reference and/or starting point when trying to configure the device for a desired setup for the first time.

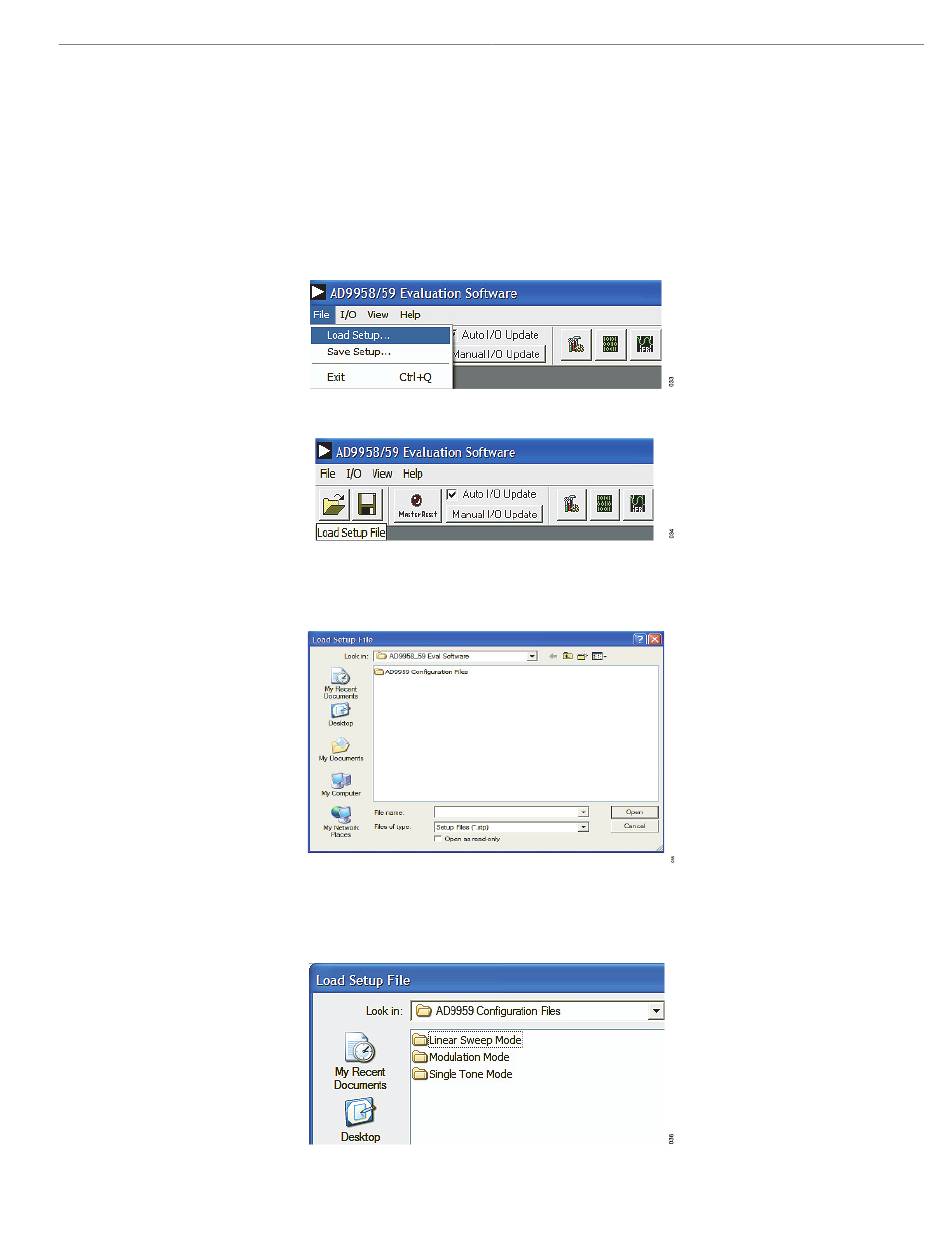

To load these setup files click File, and select Load Setup...
Next, open the AD9959 Configuration Files folder
Then select which mode of operation setup file(s) you would like to view (see
Single Tone Mode.
analog.com
(Figure 33), or click the open folder
Figure 33.
Figure 34.
(Figure 35).
Figure 35.
Figure
Figure 36.
EVAL-AD9959
(Figure 34) to access these files.
36). Select Linear Sweep Mode, Modulation Mode, or
Rev. A | 17 of 27
