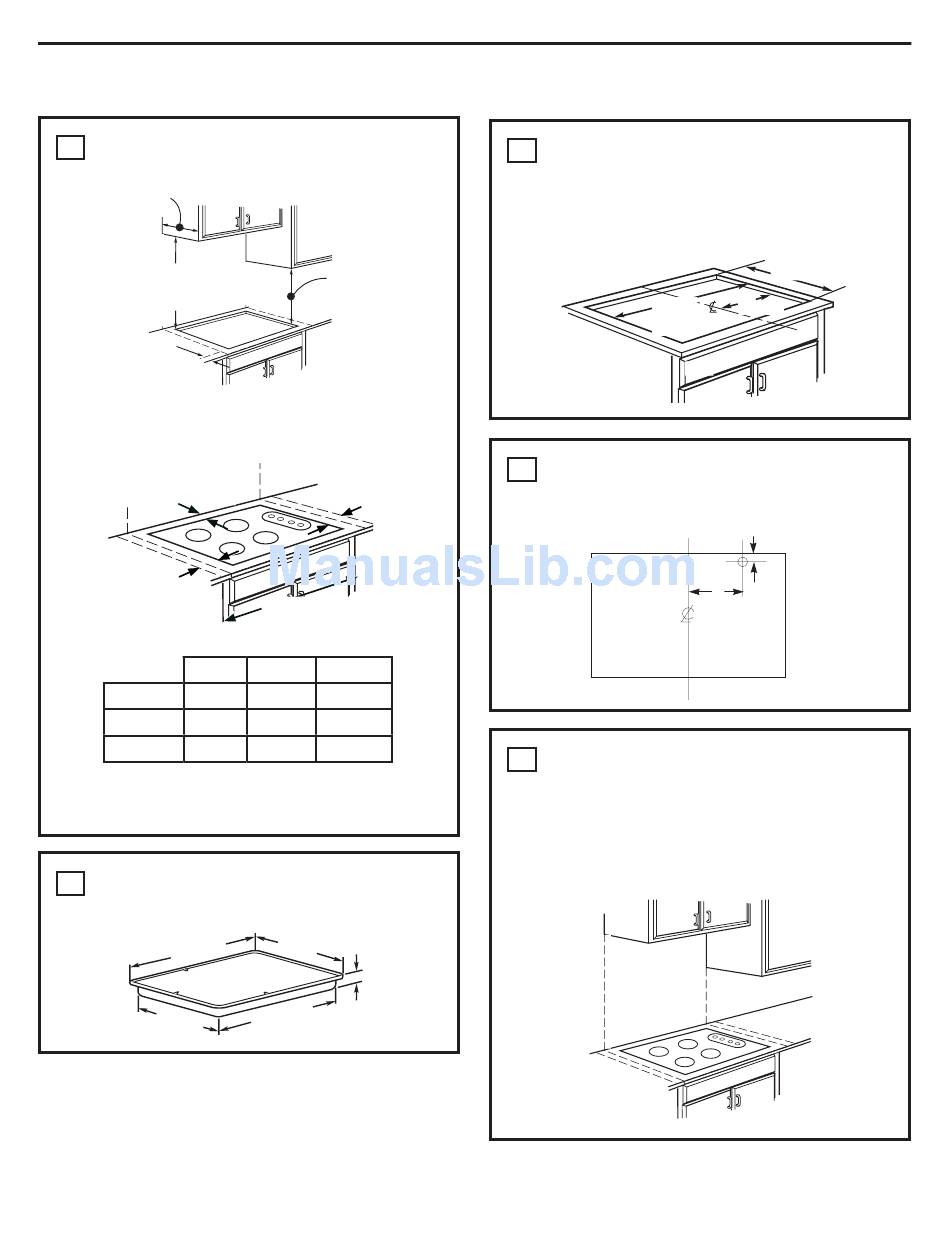

PREPARING THE OPENING

1 MAINTAIN THE FOLLOWING
MINIMUM CLEARANCE DIMENSIONS
13" MAX. Depth of unprotected
overhead cabinets
30" MIN. clearance from countertop
to unprotected overhead surface
NOTE: All gas cooktop models require 7/16" free
area below cooktop bottom to combustible material.
C - MIN. from
cooktop to rear
vertical combustibles
B - MIN. from
cooktop to left
vertical combustibles
A
PGP953
5"
PGP959
11"
CPG350
11"
ALL HORIZONTAL CLEARANCES MUST BE MAINTAINED
FOR A MINIMUM OF 18" ABOVE THE COOKING SURFACE.
2 OVERALL COOKTOP DIMENSIONS
30"
Cooktop
19-3/8"
Installation Instructions
3 3/4 MIN.
18" MIN. height
from countertop to
nearest cabinet on
either side of unit
A - MIN. from
cooktop to right
vertical combustibles
30" or wider
cabinet base
B
C
3"
1-5/16"
11"
2"
11"
2"
21"
3-1/4"
28-1/4"
3 CUTOUT DIMENSIONS OF
COUNTERTOP
To ensure accuracy, it is best to make
a template when cutting the opening
in the counter.
4 RECOMMENDED GAS SUPPLY
LOCATION FROM BACKWALL
Recommended
gas supply
location
5 MAKE SURE WALL COVERINGS,
COUNTERTOP AND CABINETS
AROUND COOKTOP CAN
WITHSTAND HEAT (UP TO 200°F)
GENERATED BY COOKTOP
Wall covering,
cabinets and
countertop must
withstand heat
up to 200°F
4
19-5/8" width cut
28-1/2"
14-1/4"
length
of cut
1" Min. From Backwall
7"
From Cutout
Center Line
