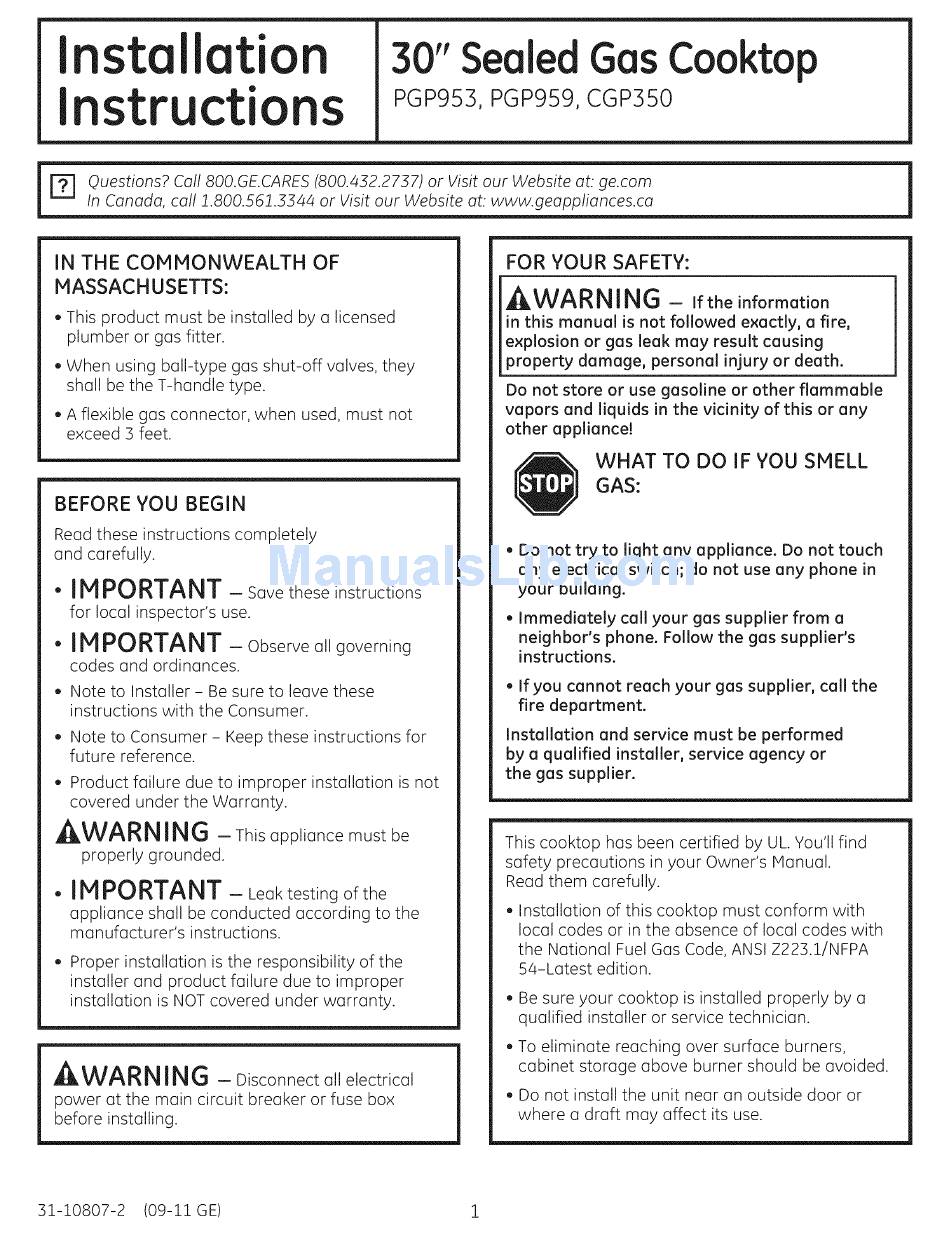

I stallatio
I structio s
30" SealedGas Cooktop
PGP953, PGP959, CGP350
i
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
r_
In Canada, call 1.800.561.3344
or Visit our Website at: www.geappliances.ca
i
IN THE COMMONWEALTH
OF
MASSACH USETTS:
, This product
must be installed by a licensed
plumber
or gas fitter.
, When using ball-type gas shut-off
valves, they
shall be the T-handle type.
, A flexible gas connector,
when used, must not
exceed 3 feet.
BEFORE YOU BEGIN
Read these instructions
completely
and carefully.
.IMPORTANT
- Save these
instructions
for local inspector's
use.
, IMPORTANT - Observe all g overning
codes and ordinances.
, Note to Installer-
Be sure to leave these
instructions
with the Consumer.
Note to Consumer
- Keep these instructions
for
future reference.
, Product failure due to improper
installation
is not
covered under the Warranty.
AWARNING
- Thisappliancemust be
properly grounded.
.
IMPORTANT
- Leak testing of the
applianceshall be conducted accordingto the
manufacturer's
instructions.
, Proper installation
is the responsibility
of the
installer and product failure due to improper
installation
is NOT covered under warranty.
WARN ING - Disconnect
all electrical
power at the main circuit breaker or fuse box
before installing.
FOR YOUR SAFETY:
AWARNING
- iftheinformation
in this manual
is not followed
exactly,
a fire,
explosion
or gas leak may result causing
property
damage,
personal
injury or death.
Do not store or use gasoline
or other flammable
vapors and liquids
in the vicinity
of this or any
other appliance!
WHAT
TO DO IFYOU SMELL
GAS:
Do not try to light any appliance.
Do not touch
any electrical
switch;
do not use any phone in
your building.
Immediately
call your gas supplier
from a
neighbor's
phone. Follow the gas supplier's
instructions.
, If you cannot
reach your gas supplier,
call the
fire department.
Installation
and service must be performed
by a qualified
installer,
service agency or
the gas supplier.
This cooktop
has been certified
by UL. You'll find
safety precautions
in your Owner's Manual.
Read them carefully.
Installation
of this cooktop
must conform
with
local codes or in the absence of local codes with
the National Fuel Gas Code, ANSI Z223.1/NFPA
54-Latest
edition.
Be sure your cooktop
is installed properly by a
qualified
installer or service technician.
To eliminate
reaching over surface burners,
cabinet storage above burner should be avoided.
Do not install the unit near an outside door or
where a draft may affect its use.
31-i0807-2 (09-11GE)
1
