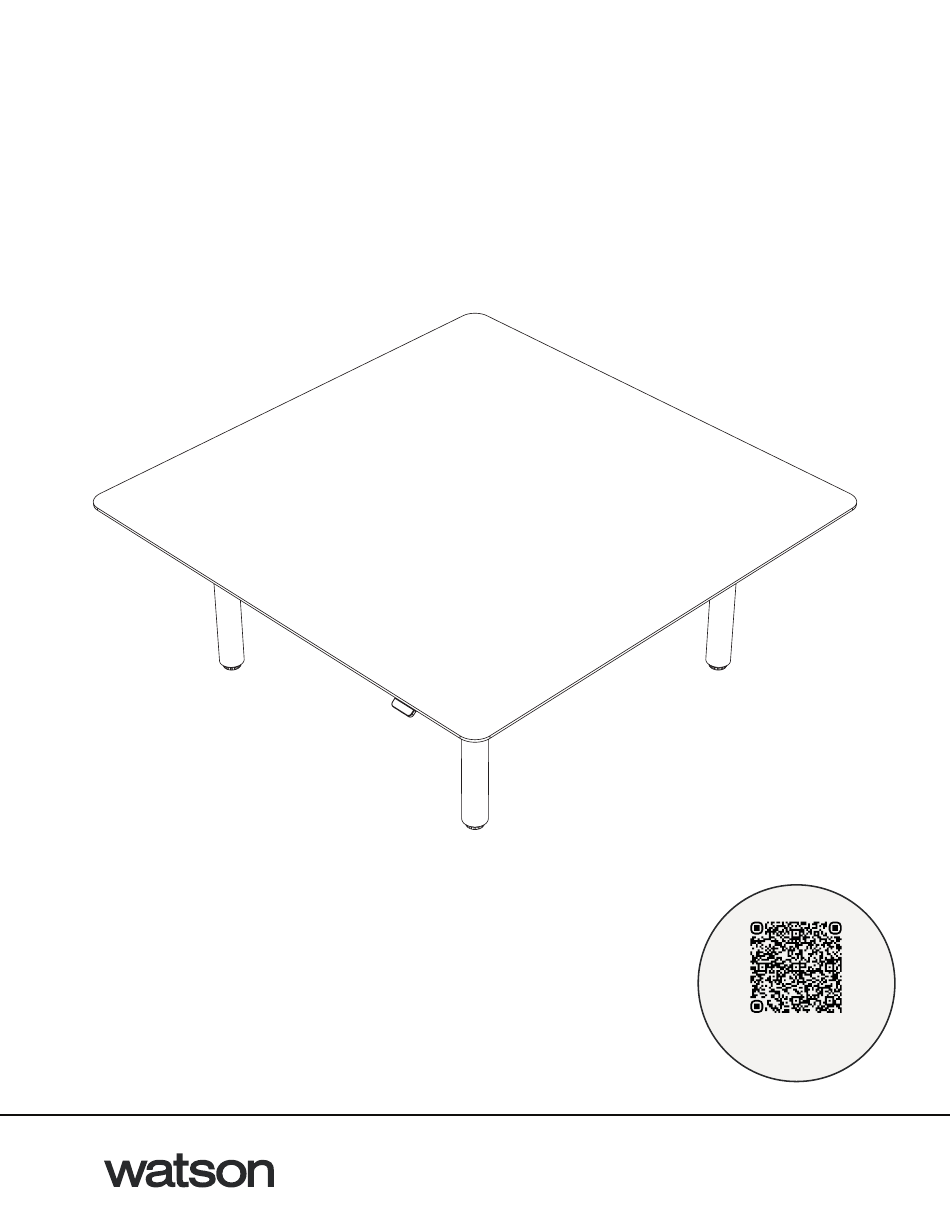

- Page 1 ASSEMBLY Allé Meet-Up Table View Digitally V.25.2 2/2025 360.394.1300 watsonfurniture.com...
-
Page 2: Important Safety Instructions
Important Safety Instructions This product is for commercial use only. Maximum intended load for this desk is 350 lbs (158 kg) When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). When more than one power supply cord is connected, unplug all cords before movement, testing, or repair of the product. - Page 3 If Using Optional Utility Power - The electrical desk plug must be plugged into the utility power when present. This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrated in sketch A (see Figure 77.1).
- Page 4 Hardware #8 X 5/8 Flat #8 X 1-1/4 Flat #10 X 5/8 Pan M6-1.0 X 12MM Button Head Head Screw, Black Head Screw, Black Head Screw, Zinc Screw, Black or Zinc dependent (116754) (122805) (122800) on desk color (125285/125290) #8 X 1/2 Pan M8 X 12MM Black Switch Cable Clip Cable Clips...
- Page 5 Parts Sur face Cross Rail Side Rail Foot Bracket Embedded Two Button Anti-Collision Dongle Cable Extender Power Cable Switch Undersur face Cable Splitter DL11 Lif ting Column Control Box Shroud Paddle Switch Linak Motor Cable 5 ‘ Patch Cable Splitter Cable Length Varies 5 ALLÉ...
-
Page 6: Attach Feet
Attach Feet Attach the foot bracket to the DL11 lifting column using two M8 x 12mm button head screws. Then attach the glide to the foot bracket. Repeat for other feet. M8 X 12MM Black Button Head Screw (0000016) 6 ALLÉ MEET-UP TABLE ASSEMBLY INSTRUCTIONS... -
Page 7: Attach Shrouds
Attach Shrouds If the powder finish doesn’t match an available lifting column color, the lifting columns will be covered with a shroud. A: Insert the finishing ring into the open end of the shroud. Finishing Ring White, Black, or Silver dependent B: Slide the open end of the shroud over the lifting column. - Page 8 Attach Side Rail to Lifting Columns Place side rail top down on a clean blanket or carpet that is free of debris. Drop lifting columns into the ends of the support rail. Attach lifting columns with eight button head screws, two on each side of each leg. Repeat for other side rail.
- Page 9 Attach Cross Rail to Lifting Columns Attach cross rails to lifting columns with eight button head screws, two on each lifting column. M6-1.0 X 12MM Button Head Screw, Black or Zinc dependent on desk color (125285/125290) 9 ALLÉ MEET-UP TABLE ASSEMBLY INSTRUCTIONS...
-
Page 10: Control Box Assembly
Control Box Assembly A. Flip the base over. Plug the power cable into the control box, and route power cord through the strain relief channel on the underside of the control box. B. Place the assembly centered on the support rail, and route the power cable through the inner cutout in the support rail, as shown. -
Page 11: Control Box Wiring
Control Box Wiring A. Plug the anti-collision dongle into port A1. Plug the splitter cable into port A2 and into the cable splitter on the side with one port. Plug the 5 patch cable into the cable splitter B. Guide the end of the switches’ cables through the desk as shown in the diagram on page 13. - Page 12 Control Box Wiring C. Plug the longest Linak motor cables into ports 1 and 2 of the control box. Route the motor cables through the rails as shown in the diagram to the two lifting columns farthest away from the control box, and plug the motor cables into the lifting columns.
- Page 13 Control Box Wiring 13 ALLÉ MEET-UP TABLE ASSEMBLY INSTRUCTIONS...
- Page 14 Attach Top to Base Place the surface onto the base and align the holes in the surface and base. Secure the base to the surface with eight screws per side rail and three or five screws per cross rail. M6-1.0 X 12MM Button Head Screw, Black or Zinc dependent on desk color (125285/125290)
- Page 15 Undersurface Paddle Switch Assembly Secure the undersurface paddle switch to the pilot holes on the underside of the surface with (2) flat head screws per switch. #8 X 1-1/4 Flat Head Screw, Black (122805) x2 per switch 15 ALLÉ MEET-UP TABLE ASSEMBLY INSTRUCTIONS...
- Page 16 Two-Button Embedded Switch Assembly Insert the switch assembly into the cutout on the underside of the surface and secure to the surface using (2) flat head screws per switch. #8 X 5/8 Flat Head Screw, Black (116754) x2 per switch 16 ALLÉ...
- Page 17 Switch Cable Clips Secure switch cable to surface using (2) switch cable clips and (2) pan head screws. #8 X 1/2 Pan Switch Cable Clip Head Screw, Black (038000) (127000) 17 ALLÉ MEET-UP TABLE ASSEMBLY INSTRUCTIONS...
