WATSON Alle Assembly Instructions Manual

Work desk and meet table
Hide thumbs Also See for Alle:

Advertisement

Quick Links

ASSEMBLY
Allé Work Desk and Meet Table
View Digitally
V.24.0 11/2024
360.394.1300
watsonfurniture.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alle and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WATSON Alle

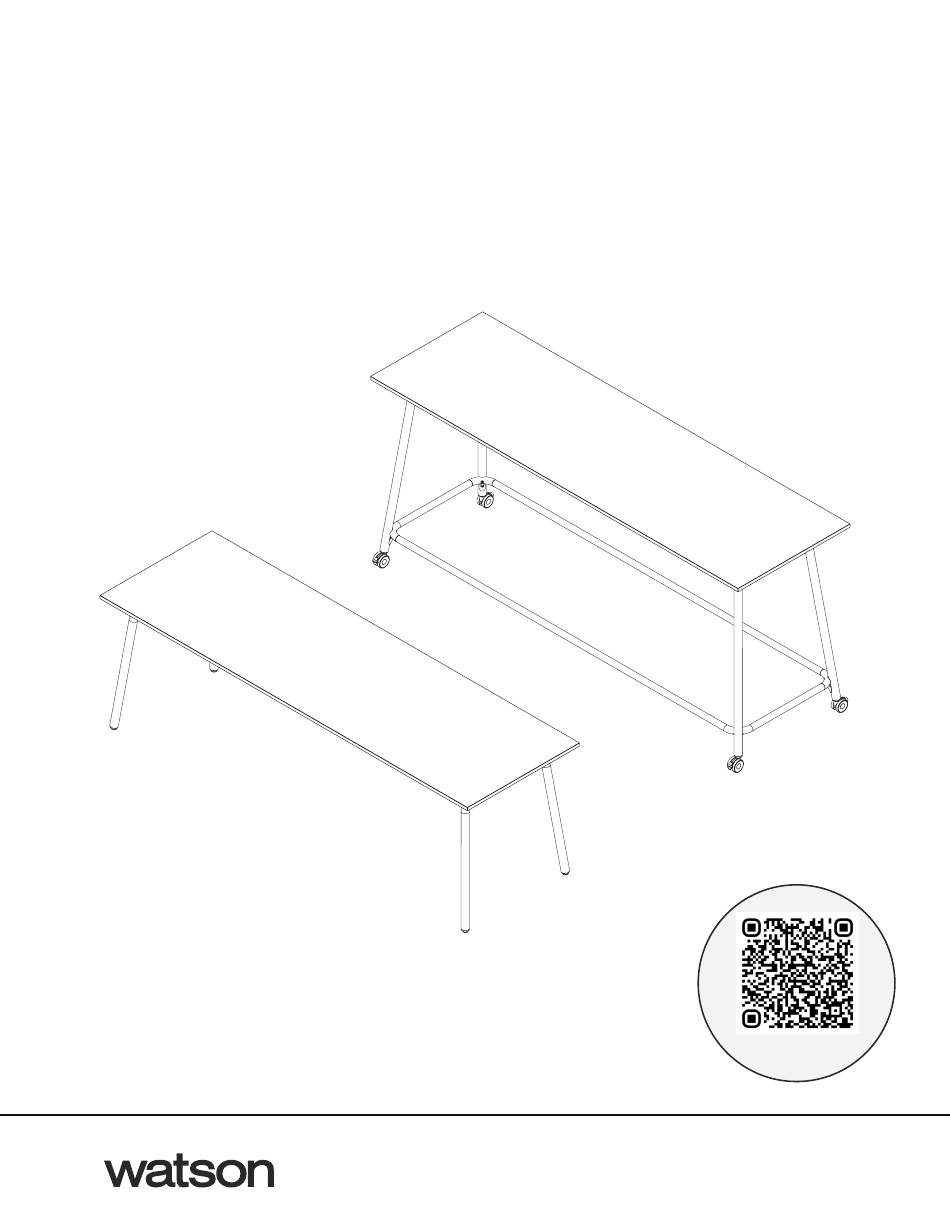

  • Page 1 ASSEMBLY Allé Work Desk and Meet Table View Digitally V.24.0 11/2024 360.394.1300 watsonfurniture.com...
  • Page 2 Hardware Space, Selab Work/Meet/ Screw M4-0.7 x 12MM Screw, Wood #9 x 1” Might MT Flat Head Flat Head (0002813) (0000879) (0002783) Screw, M8-1.25 x 35MM Clip, Single Side Screw #10 x 5/8 BK, Tor x (0002629) Wire Manager (0002148) (486911) Side Suppor t, Selab (0002814)
  • Page 3 Components Footbar Castings Footbar Tubes (Optional) (Optional) Mobile Table Legs Suppor t Tubes (Optional) Work Sur face Fixed Table Legs (Optional) 3 ALLÉ WORK DESK AND MEET TABLE ASSEMBLY INSTRUCTIONS...
  • Page 4 Connect Support Tubes to Frame Legs For tables 30” or deeper, located the two support tubes and place them so that the large access cuts are both facing inwards towards eachother and the side with the larger set of holes is facing upwards.
  • Page 5 24” D Support Tube Supports For tables that are 24” in depth, secure Qty: 4 of the side support pieces (0002814) to the underside of the worksurface using QTY: 2 of the #10 x 5/8” wood screws (0002148) per support. Screw #10 x 5/8 BK, Tor x Side Suppor t, Selab (0002148)
  • Page 6 Attach Frame to Work Surface Place the work surface on a clean blanket or carpet, ensuring that the area is free of debris. Flipping the frame upside down, align the pilot holes in the top with the holes in the frame. Secure the frame to the work surface using the #9 x 1”...
  • Page 7 Assemble Optional Foot Bar Lay out the foot bar tubes for pre-assembly, ensuring that all of the holes are facing upwards. Insert the corner castings into the tubes so that the holes in the tubes align with the holes in the castings. Secure the castings to the tube using Qty: 4 of the M4 x 12mm flat head screws (0000879) per casting.
  • Page 8 Attach Optional Foot Bar Carefully lower the assembled foot bar into place inside the legs of the table until the holes in the corner castings align with the nuts located in the bent tube frame legs. Secure the footbar to the leg frame using Qty: 2 of the M8 x 35mm screws (0002629) per corner.
  • Page 9 Attach Cable Clips Secure single sided cable clips (486911) to the undersurface with Qty: 1 #10 x 5/8 Pan Head screw (0002148) per clip. Clip, Single Side Screw #10 x 5/8 BK, Tor x Wire Manager (0002148) (486911) 9 ALLÉ WORK DESK AND MEET TABLE ASSEMBLY INSTRUCTIONS...
