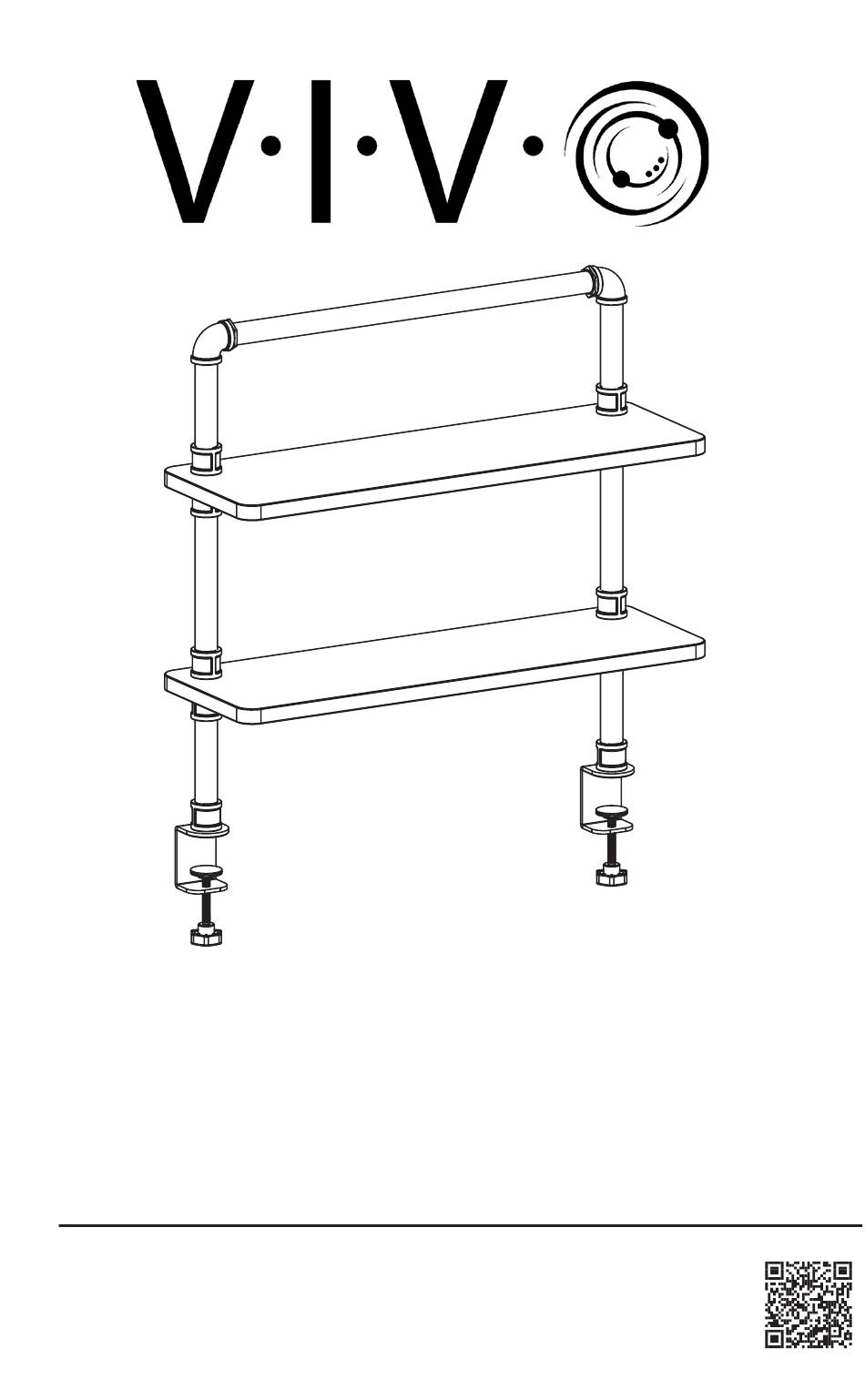

- Page 1 Clamp-on 24” Industrial Pipe Shelves SKU: DESK-SHELF24-2N Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-shelf16-2n...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x2) Top Pipe Middle Pipe D (x2) C (x2) Pipe with Shelf Clamp Included Tools T-A (x1) 5mm Allen Wrench Weight Capacity 33lbs 66lbs (15kg) (30kg) Per Shelf Total... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Place one Shelf (C) over threaded ends of Middle Pipes (B). Thread Middle Pipes into Top Pipe (A), ensuring that Shelf is in-between Top and Middle Pipes. STEP 2 Place remaining Shelf (C) over threaded ends on Pipes with Clamp (D). Thread Pipes with Clamps onto Middle Pipes (B). - Page 5 STEP 3 1: Loosen knobs on Clamps (D1) until the gap is slightly larger than the mounting surface. NOTE: Desktop thickness range is 10mm to 50mm. 2: Use 5mm Allen Wrench (T-A) to loosen Clamps (D1) and rotate to the correct position shown in Fig.
- Page 6 STEP 3 - Cont’d 3: Place Clamps (D1) on the desk and tighten knobs to secure shelf assembly.
- Page 7 ASSEMBLY COMPLETE Installation is now complete and your shelf is ready for use. Each shelf can hold 33 lbs/15 kg for a combined 66 lbs/30 kg support.
- Page 8 LAST UPDATED: 5/13/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
