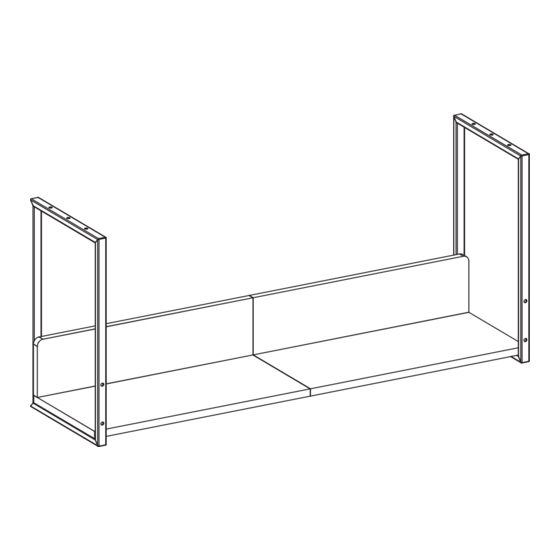

Black 30" Under Desk Shelf
Instruction Manual
SKU: DESK-SHELF30-UB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-shelf30-ub
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-SHELF30-UB
Summary of Contents for Vivo DESK-SHELF30-UB
- Page 1 Black 30” Under Desk Shelf Instruction Manual SKU: DESK-SHELF30-UB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-shelf30-ub GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! PACKAGE CONTENTS If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Join Left and Right Base Panels (B,C) together using Wooden Dowel Pins (S-A). Join Left and Right Back Panels (D,E) using Wooden Dowel Pins (S-A). STEP 2 STEP 3 Secure Left and Right Base Panels (C,B) together Join Base Panels (B,C) and Back Panels (D,E) together using Connecting Bracket (G) and ST4.2x13mm using Connecting Bar (F) and ST4.2x20mm Screws Screws (S-B). - Page 4 STEP 4 Continue to secure Base Panels (B,C) and Back Panels (D,E) together using ST4.2x20mm Screws (S-C) and a Phillips screwdriver. Attach Mounting Brackets (A) to Base Panels (B,C) and Back Panels (D, E) using ST4.2x20mm Screws (S- C). Tighten with a Phillips screwdriver. STEP 5 (Option A) STEP 5 (Option B) Spacing mounting brackets off desktop to help clear possible...
- Page 5 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
