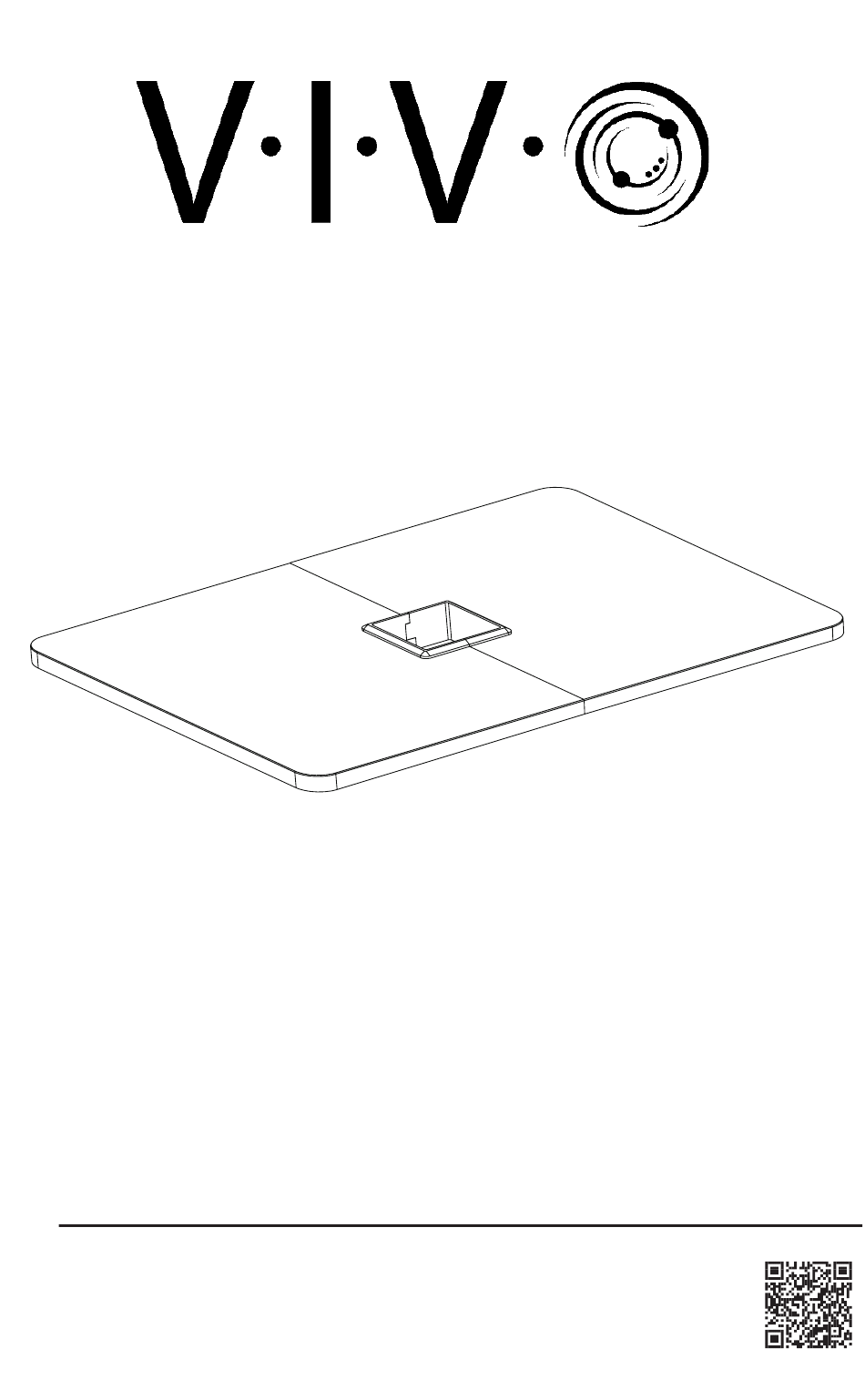

- Page 1 Black Under Desk Leg Shelf SKU: DESK-SF02LU Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-sf02lu...
- Page 2 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 4 Package Contents A (x2) B (x2) C (x2) Shelf Corner Protector Shelf Bracket D (x2) E (x2) Support Bar Side Bracket Included Hardware & Tools S-B (x8) S-C (x8) S-D (x4) S-A (x4) M6x15mm Screw M5x12mm Screw M8x40mm Screw Wooden Dowel Pin T-A (x1) 5mm Allen Wrench Tools Needed:...
- Page 5 ASSEMBLY STEPS STEP 1 Loosen the Clamping Screws on the sides of Shelf Brackets using 5mm Allen Wrench (T-A). Clamping Screws...
-
Page 6: Assembly Notes
STEP 2 Place both Shelf Brackets (C) onto your desk leg with the Slots facing down. Fasten brackets together using the M8x40mm Screws (S-D) and 5mm Allen Wrench (T-A). Assembly Notes: Slots on Shelf Brackets should be facing down. Slots InMake sure to pass the screws through the unthreaded holes on one... - Page 7 STEP 3 Attach the Support Bars (D) to the Shelf Brackets (C) using the M6x15mm Screws (S-B) and the 5mm Allen Wrench (T-A). DESK LEG Please Note: Screws should NOT be fully tightened to allow for adjustment in a later step. STEP 4 Fasten the Side Brackets (E) to the Support Bars (D) using the M6x15mm Screws (S-B) and 5mm Allen Wrench (T-A).
- Page 8 STEP 5 Insert the 4 Wooden Dowel Pins (S-A) into one of the Shelf (A) pieces. STEP 6 Place the two Shelf (A) pieces together on top of the Side Brackets (E), and connect them together with the Wooden Dowel Pins (S-A).
- Page 9 STEP 7 Fasten the Shelf (A) to the Side Brackets (E) using a Phillips screwdriver and the M5x12mm Screws (S-C). STEP 8 Line up the Corner Protectors (B) around the leg and press them into them into the Shelf (A).
- Page 10 STEP 9 Once the assembly is complete, tighten all remaining loose bolts.
- Page 11 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK]...
- Page 12 LAST UPDATED: 07/11/2024 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
