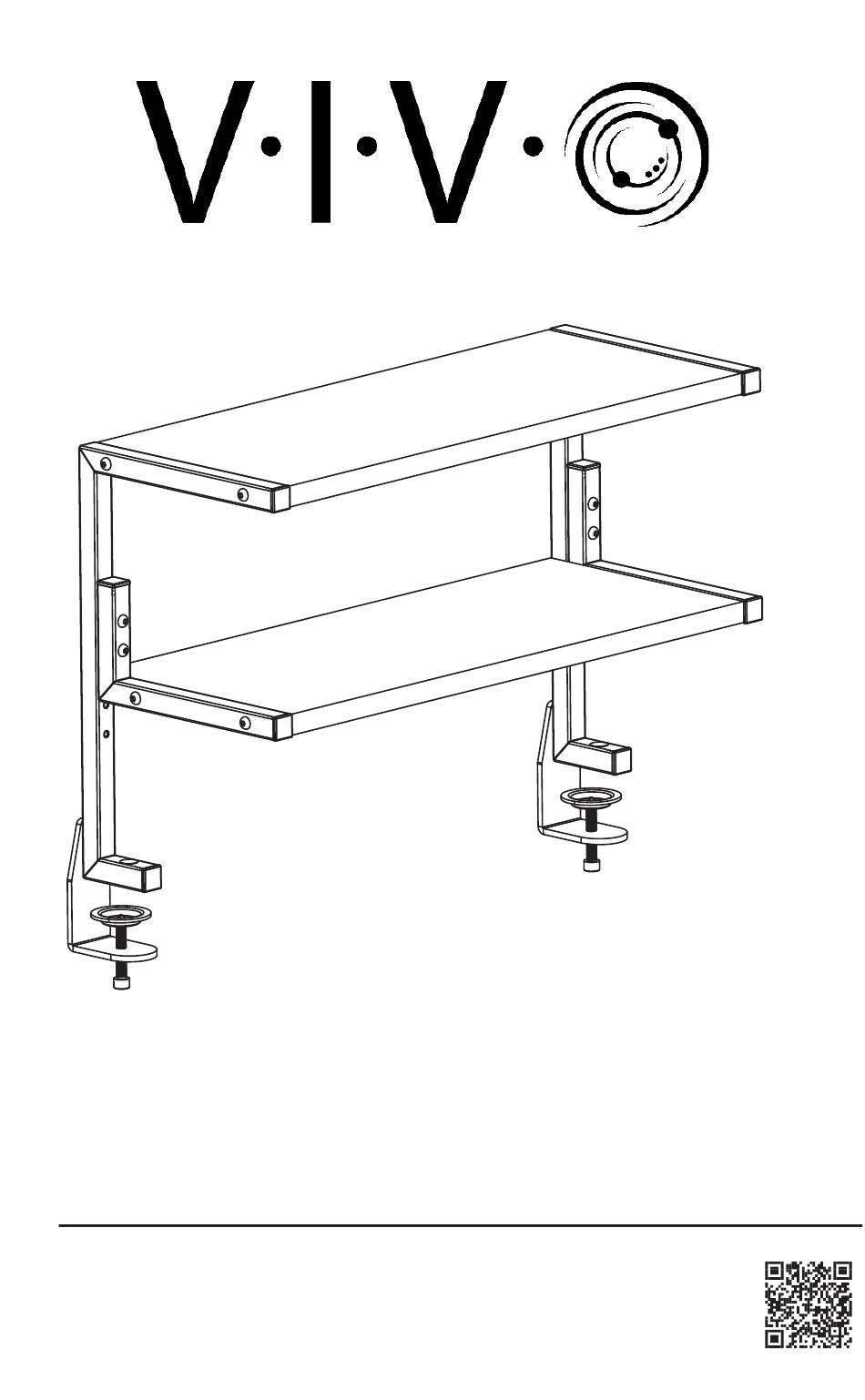

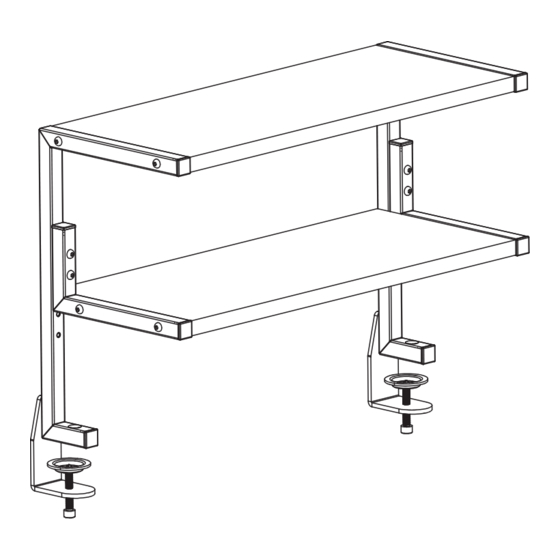

- Page 1 Above/Below Clamp-on 24” Dual Shelf SKU: DESK-SHELF24C Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-shelf24c...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 STEP 3 ASSEMBLY STEPS Attach Shelf Bracket (C) to middle holes of Vertical Support (B) using M6x30mm Screws (S-C) and STEP 1 4mm Allen Wrench (T-A). Select mounting holes based on desired shelf height. Secure Shelf (A) into top holes on Vertical Support (B) using M6x30mm Screws (S-C) and 4mm Allen Wrench (T-A).
- Page 4 --- Above Desk Assembly --- ** READ BEFORE PROCEEDING * * STEP 4a Two Assembly Options Thread M8x50mm Screws (S-D) into Clamp Braces (D) with Clamp Plate (E), M4x10mm Screws (S-A) This desk shelf can be installed to sit above or below your desk. Choose your and M4 washer (S-E).
- Page 5 STEP 6a STEP 7a Secure the shelf assembly above the desktop by tightening M8x50mm Screws (S-D) using 6mm Allen Mount the clamp assemblies to Vertical Supports (B) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-B). Wrench (T-A). Remove adhesive backing from Soft Pads (F) and apply to Vertical Supports (B) as shown below.
- Page 6 --- Below Desk Assembly --- STEP 5b STEP 4b Remove adhesive backing from Soft Pads (F) and apply them to Clamp Braces (D) as shown below. Thread M8x50mm Screws (S-D) into Vertical Supports (B) with Clamp Plates (E), M4x10mm Screws (S-A) and M4 Washers (S-E).
- Page 7 LAST UPDATED: 10/16/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
