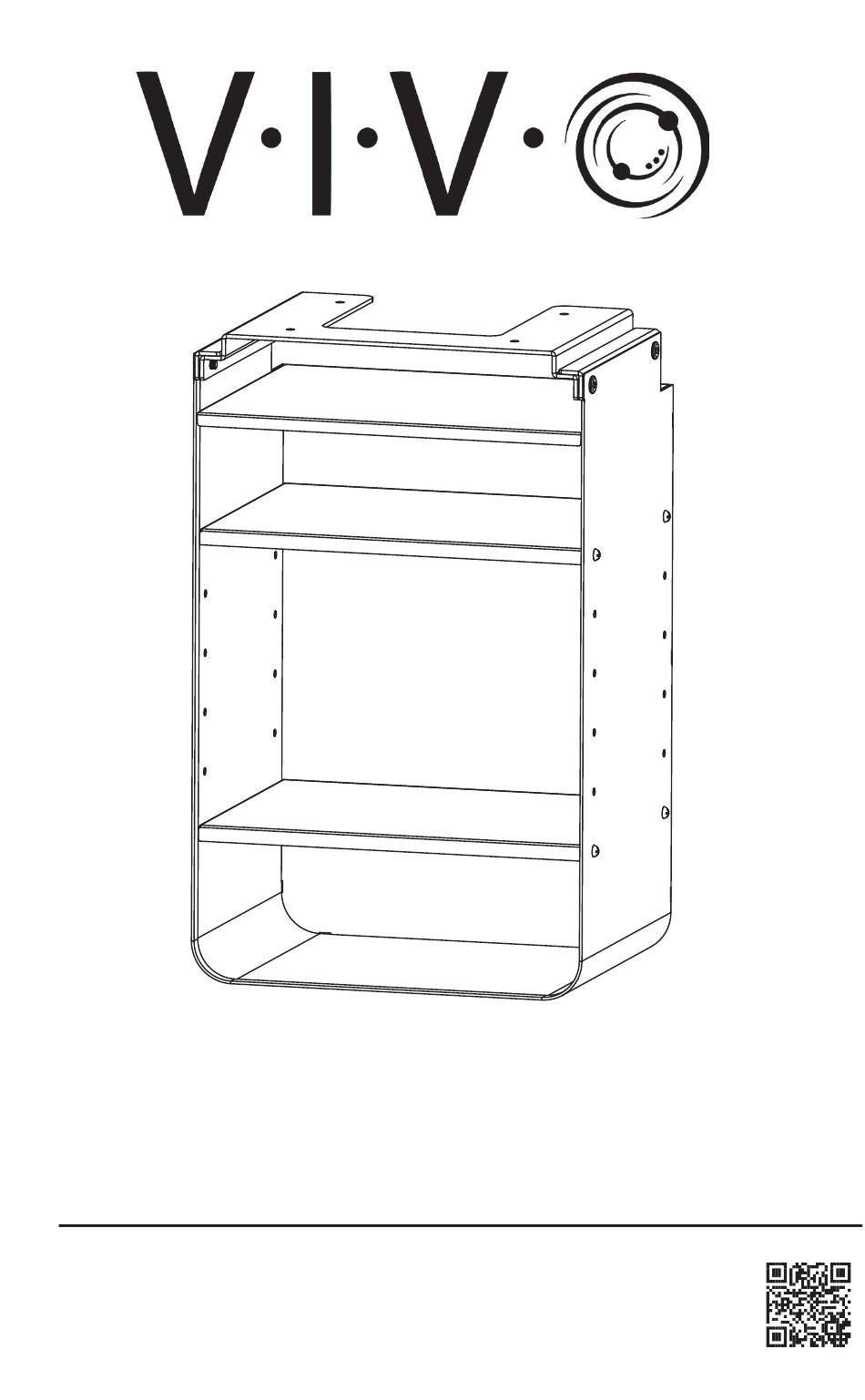

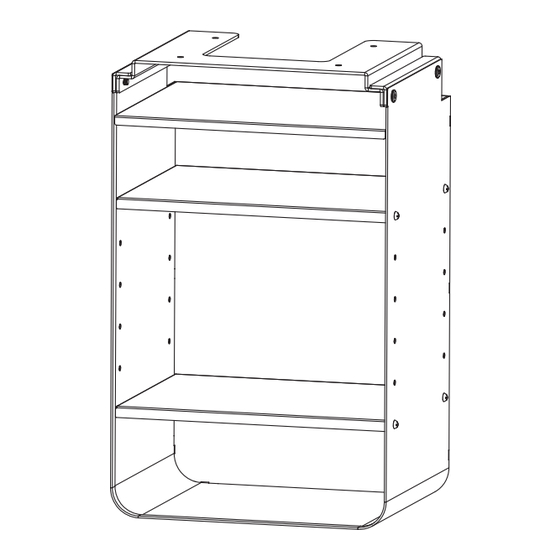

- Page 1 Under Desk Shelving Unit SKU: DESK-SC01 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-sc01...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x1) B (x1) Shelving Unit Mounting Bracket Included Hardware & Tools S-A (x4) S-B (x4) T-A (x1) M6x12mm Screw ST5.5x19mm Screw 4mm Allen Wrench Tools Needed: Weight Capacity: 44 lbs (20 kg) Phillips Screwdriver...
- Page 4 Preassembly (Optional) Adjusting Shelf Height Follow instuctions below to adjust the height of shelves. If no changes are desired, please proceed to Assembly Steps on the next page. Remove the pre-installed screws on Shelving Unit (A) using a Phillips screwdriver and relocate the Shelves to the desired positions.
- Page 5 ASSEMBLY STEPS STEP 1 Align Mounting Bracket (B) underneath desktop, along the front edge and use a pencil to mark pre-drill hole locations. Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 9/64” (3.5mm) Hole Depth: 0.6” (15mm)
- Page 6 STEP 2 Secure Mounting Bracket (B) to the desktop using ST5.5x19mm Screws (S-B) and a Phillips screwdriver.
- Page 7 STEP 3 Slide Shelving Unit (A) onto the Mounting Bracket (B). Secure Shelving Unit to the Mounting Bracket using M6x12mm Screws (S-A) and 4mm Allen Wrench (T-A).
- Page 8 LAST UPDATED: 7/25/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
