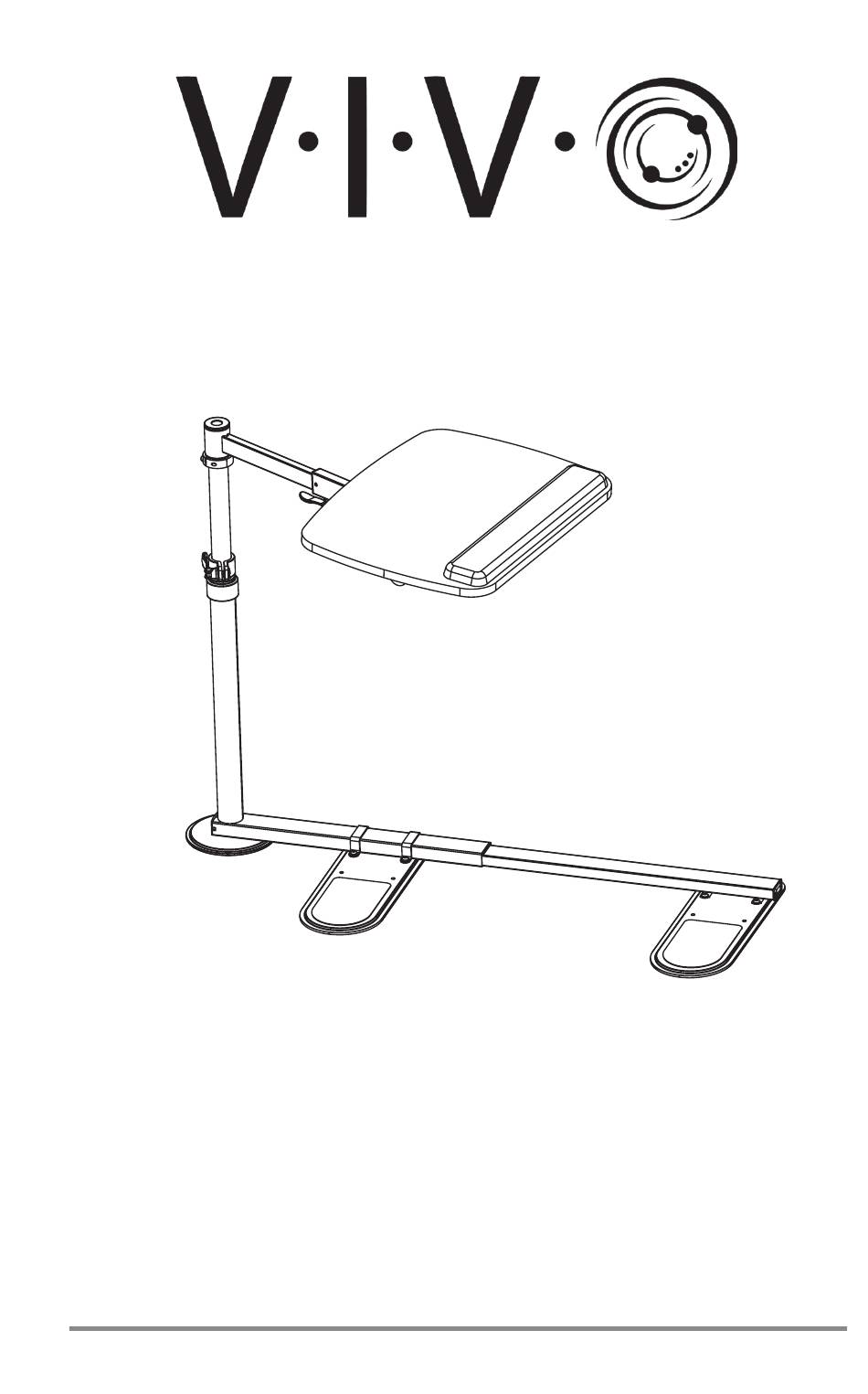

- Page 1 20” x 15” Swivel Couch Desk DESK-ST02C Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Package Contents B (x1) C (x1) A (x1) D (x1) Wrist Pad Tray Pole E (x1) F (x2) G (x1) H (x2) Crossbar Crossbar Bracket Base Feet J (x1) K (x2) L (x1) I (x2) Lower Foot Pad Base Pad Pole Cap Tray Bracket Included Hardware &... -
Page 4: Assembly Steps
Assembly Steps STEP 1 Attach the Pole (D), Crossbar (E), and Base (G) together using one M6x40mm Screws (S-A) and 4mm Allen Wrench (T-A), as shown. The remaining M6x40mm Screws will be used in the next part of this step. Ensure the two brackets are on the bottom. - Page 5 STEP 2 Use 4mm Allen Wrench (T-A) to loosen Set Screws and pull Inner Bar out. Set Screw Inner Bar ***Read Before You Proceed*** Choose the Desired Side of Your Couch The assembly’s Feet will be attached to the Crossbars in an orientation based on the desired side of your couch.
- Page 6 STEP 3 Attach one Foot (H) to the Crossbar (E) using Crossbar Brackets (F), M6x8mm Screws (S-C), and M6 Washers (S-D). Attach the other Foot to the two bottom brackets on Crossbar using M6x8mm Screws and M6 Washers. Tighten using the 4mm Allen Wrench (T-A). Left Side of Couch...
- Page 7 STEP 4 Adjust the Crossbar (E) until Feet (H) line up with the feet of your couch. Tighten Set Screws with Allen Wrench (T-A) to secure Crossbar Assembly in place. Set the feet of the couch onto the Assembly’s Feet. Couch Set Screw STEP 5...
- Page 8 STEP 6 Loosen the Levers (I1) on Tray Brackets (I) and slide them on either side of Arm (C). Loosen Adjusting the Tray Bracket Tray Brackets can be loosened by turning the Lever counter-clockwise. They can then be retightened by turning the Lever clockwise.
- Page 9 STEP 7 Adjust the Arm (C) to the desired length by loosening Lever (C1), adjusting, then re-tightening. Lever getting in the way? The pre-installed Lever can be removed by opening and turning it counterclockwise until fully unthreaded. Insert M6x10mm Screw (S-E) in its place and tighten with 4mm Allen Wrench (T-A).
- Page 10 STEP 9 Slide the Arm (C) onto the Pole (D) so that it rests on the Pole Collar (D1). Insert Pole Cap (L) into top of Pole. Tighten the adjustment screw with 3mm Allen Wrench (T-B) to secure Arm in place. STEP 10 Remove the adhesive backing from Wrist Pad (B) and apply to Tray (A) where desired.
- Page 11 Adjustments Use the Levers (C1,D1) to adjust Arm (C) and Pole (D). The Arm can be rotated 360° around the pole. If the Table Plate is loose, use the Wrench (T-C) to tighten the nut located underneath it. 360° Open Close Loosen Pole Won’t Slide?
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
