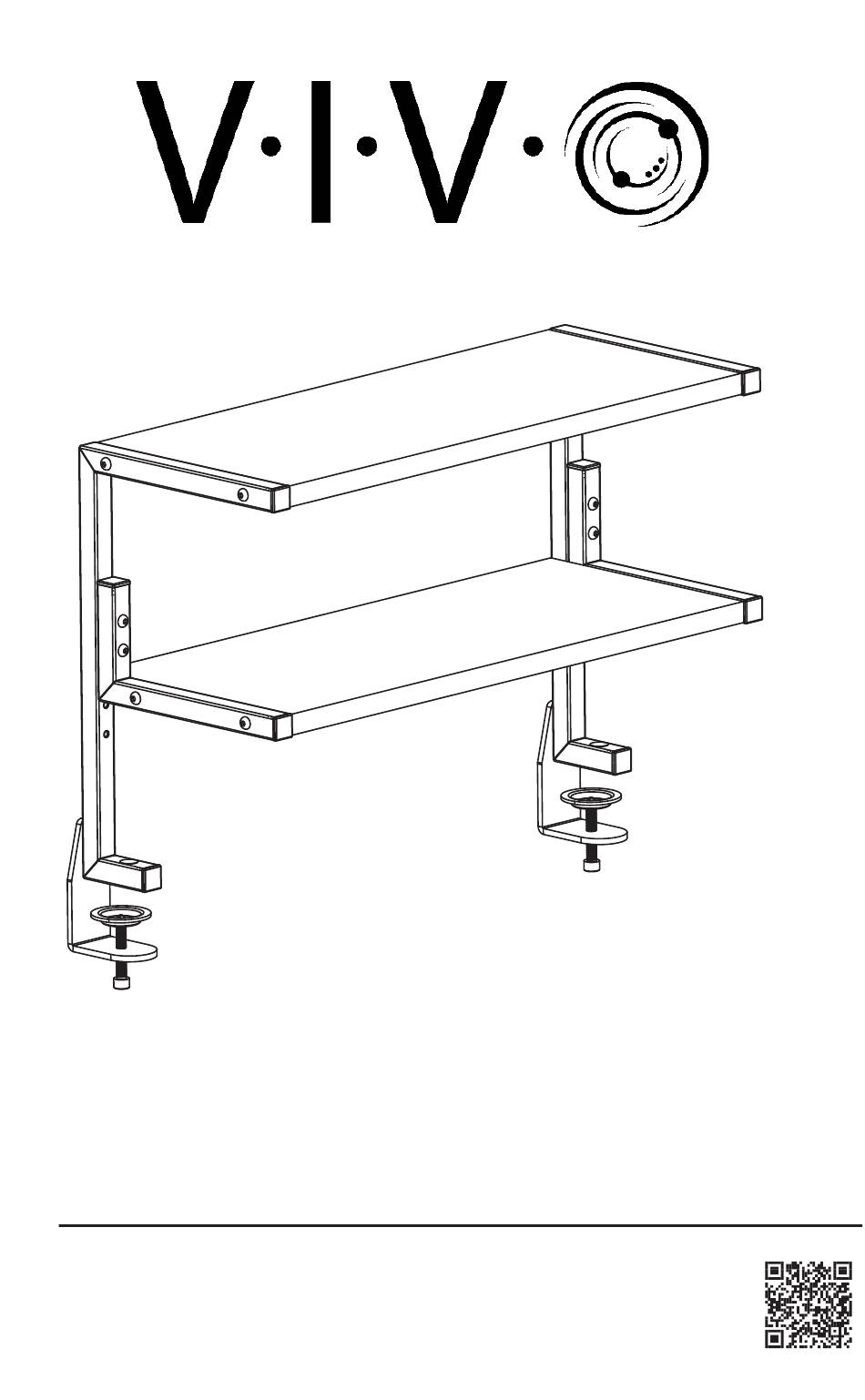

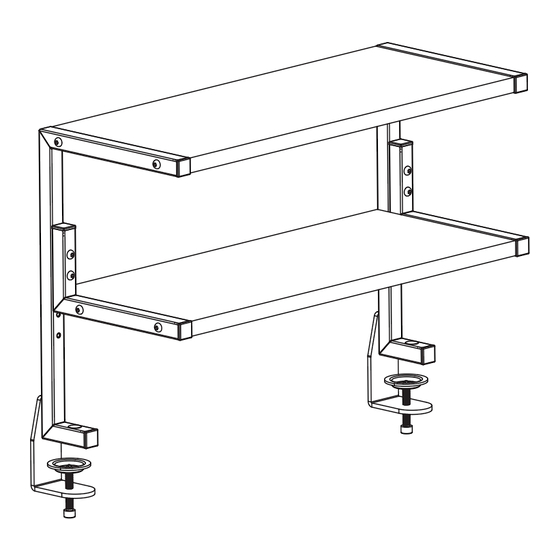

- Page 1 Above/Below Clamp-on 24” Dual Shelf SKU: DESK-SHELF24C/C-W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-shelf24c...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x2) B (x2) C (x2) Shelf Vertical Shelf Support Bracket D (x2) E (x2) F (x2) Clamp Brace Clamp Plate Soft Pad Included Hardware & Tools S-A (x2) S-B (x4) S-C (x12) S-D (x2) S-E (x2) M4x10mm Screw M6x12mm Screw M6x30mm Screw M8x50mm Screw... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Secure Shelf (A) into top holes on Vertical Support (B) using M6x30mm Screws (S-C) and 4mm Allen Wrench (T-A). S-C (x4) STEP 2 Secure remaining Shelf (A) to Shelf Bracket (C) using M6x30mm Screws (S-C) and 4mm Allen Wrench (T-A). - Page 5 STEP 3 Attach Shelf Bracket (C) to middle holes of Vertical Support (B) using M6x30mm Screws (S-C) and 4mm Allen Wrench (T-A). Select mounting holes based on desired shelf height. S-C (x4) 4 HEIGHT SETTINGS...
- Page 6 ** READ BEFORE PROCEEDING * * Two Assembly Options This desk shelf can be installed to sit above or below your desk. Choose your desired use and follow the appropriate steps on the next pages. A. ABOVE DESK Page 7-9 B.
- Page 7 --- Above Desk Assembly --- STEP 4a Thread M8x50mm Screws (S-D) into Clamp Braces (D) with Clamp Plate (E), M4x10mm Screws (S-A) and M4 washer (S-E). Tighten using 6mm Allen Wrench (T-B) and a Phillips Screwdriver. S-A (x2) S-D (x2) S-E (x2) STEP 5a Remove adhesive backing from Soft Pads (F) and apply to Vertical Supports (B) as shown below.
- Page 8 STEP 6a Mount the clamp assemblies to Vertical Supports (B) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A). Remove adhesive backing from Soft Pads (F) and apply to Vertical Supports (B) as shown below. S-B (x4) Desk Thickness Assembly Second Set First Set 0- 27.59mm/0 - 1.08”...
- Page 9 STEP 7a Secure the shelf assembly above the desktop by tightening M8x50mm Screws (S-D) using 6mm Allen Wrench (T-B). Assembly Complete!
- Page 10 --- Below Desk Assembly --- STEP 4b Thread M8x50mm Screws (S-D) into Vertical Supports (B) with Clamp Plates (E), M4x10mm Screws (S-A) and M4 Washers (S-E). Tighten using 6mm Allen Wrench (T-B) and a Phillips Screwdriver. S-A (x2) S-D (x2) S-E (x2) Secure Clamp Brace (D) to the back of Vertical Desk Thickness Assembly...
- Page 11 STEP 5b Remove adhesive backing from Soft Pads (F) and apply them to Clamp Braces (D) as shown below. STEP 6b Secure the shelf assembly below the desktop by tightening M8x50mm Screws (S-D) using 6mm Allen Wrench (T-B). Assembly Complete!
-
Page 12: Last Updated
LAST UPDATED: 5/14/24 REV1.1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
