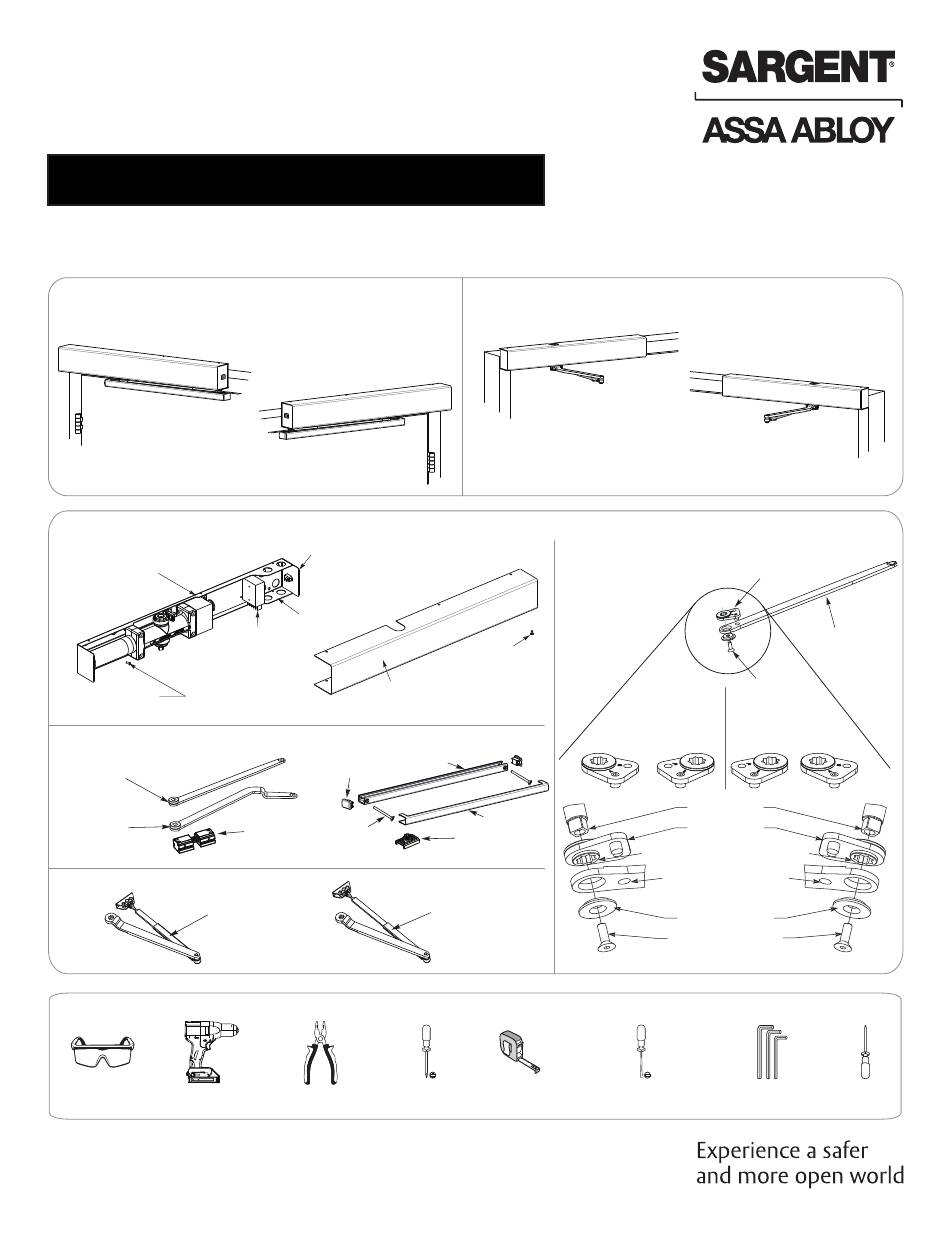

Installation Instructions
2300 Series
Models 2310, 2330, 2360, 2370, and 2390
Multi-Point Hold Open Electrified Closer and Holder
Pull Side Applications with Slide Track
Models 2310 (Pull Side), 2330 (Pull Side, Double Egress), &
2360 (Pull Side, Free Swing)
RH - Right Hand Door
LHR - Left Hand Reverse
Closer/Holder Components
Closer/Holder Unit
Assembly
(Handed)
Power Supply
(120V units only)
Backplate
Mfg. Screw
Included with Pull Side or Double Egress
2310 Main Arm
(63-4414)
2330 Main Arm,
Handed
(63-4416. Right Hand
63-4417, Left Hand)
Included with Push Side
2370 Arm Assembly
Safety Glasses
Drill
1-800-727-5477 • www.sargentlock.com
Copyright © 2024, Sargent Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written
permission of Sargent Manufacturing Company is prohibited.
A8398 08/24 Rev 1
63-8398-6000-999
LH - Left Hand Door
RHR - Right Hand Reverse
Test/Power
Switch
Backplate
Cover
Slide Track
Track End
(63-4413)
Cap (2)
Cushion Stop
Track Mtg
Assembly
Screw (2)
(63-4420)
(63-4418)
Tools Required
Wire Stripper
#2 Phillips Head
Screwdriver
Approved 2025-01-27
Push Side Applications with Double Lever Arms
Models 2370 (Push Side) & 2390 (Push Side, Deep Reveal)
RH - Right Hand Door
LHR - Left Hand Reverse
NOTE: Use of an auxiliary door stop, by
others, is required for these applications.
Components
Included with Free Swing Arm (63-4415)
Cover
Mfg. Screw
Track Cover
Slide Assembly
(63-4422)
2390 Arm Assembly
(63-4419)
Tape Measure
Small Flathead Screwdrivers
(Potentiometer and Terminal size)
LH - Left Hand Door
RHR - Right Hand Reverse
Arm Driver
Arm Screw
Connected Free
Rigid Arm Only
Swing Only
Right Hand
Left Hand
Right Hand
Letter "A"
Letter "B"
Letter "B"
Pinion Flat
Arm Driver
(63-4421)
Index
Index
Mark II
Mark I
This hole used for Rigid
Arm function only
Disc Washer
Main Arm Screw
Allen Wrench
Set (inch)
Main Arm
Left Hand
Letter "A"
Punch
Advertisement
Table of Contents
Related Manuals for Assa Abloy SARGENT 2300 Series
Summary of Contents for Assa Abloy SARGENT 2300 Series
- Page 1 Installation Instructions 2300 Series Models 2310, 2330, 2360, 2370, and 2390 Multi-Point Hold Open Electrified Closer and Holder Pull Side Applications with Slide Track Push Side Applications with Double Lever Arms Models 2310 (Pull Side), 2330 (Pull Side, Double Egress), & Models 2370 (Push Side) &...
-
Page 2: Table Of Contents
2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Contents Requirements ................... 2 Standards . -
Page 3: Push Side Installation - Double Lever Arm (Models 2370 & 2390)
2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Push Side Installation - Double Lever Arm (Models 2370 & 2390) A. Prepare frame. Ceiling Line (22) 19-3/4 3-1/2 (502) Min. (89) 11-1/4 (22) DIA THRU (102) (286) 11/16 For Concealed 5/16 (18) - Page 4 2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Push Side Installation - Double Lever Arm (Models 2370 & 2390) -cont. C. Mount arm shoe. Mount closer arm shoe to door face as shown. D. Attach arm. Pinion Flat Mark Align the pinion flat with the...
- Page 5 2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Push Side Installation - Double Lever Arm (Models 2370 & 2390) - cont. G. Adjust closer. Closing Speed Controls “S” “L” Sweep Latch y Valve “S” Controls Sweep Range from full open to 5°.
-
Page 6: Pull Side Installation - Track Mount (Models 2310, 2330, & 2360)
2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Pull Side Installation - Track Mount (Models 2310, 2330, & 2360) A. Prepare frame. Ceiling Line (22) 3-1/2 Min. (89) (584) DIA THRU 14-1/2 1-3/8 (22) 1-1/16 (368) For Concealed (35) 3-1/4 (27) - Page 7 2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Pull Side Installation - Track Mount (Models 2310, 2330, & 2360) - cont. C. Mount arm. Use main arm to rotate pinion Align the pinion flat as shown. until flat is visible. Pinion Flat RIGHT LEFT...
- Page 8 2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Pull Side Installation - Track Mount (Models 2310, 2330, & 2360) - cont. F. Connect arm to track. Secure arm to slider assembly using 3/16" wrench. Turn wrench counter clock wise to tighten HINGE Open door to maximum desired swing...
- Page 9 2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Pull Side Installation - Track Mount (Models 2310, 2330, & 2360) - cont. H. Adjust closer. Closing Speed Controls “S” “L” y Valve “S” Controls Sweep Range from full Sweep Latch open to 5°.
-
Page 10: Electrical Connections
2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Electrical Connections Surface mount power input: Clearance Remove appropriate shaded area from for Strain Relief cover for surface wired installations only. Cover surface Repaint cut edges as necessary to prevent facing ceiling. -
Page 11: Selective Hold Open (Sho) Cam Adjustment
2300 Series Models 2310, 2330, 2360, 2370, and 2390 Installation Instructions Selective Hold Open (SHO) Cam Adjustment Setting Hold Open Angle 5/32" hex wrench y Make all required electrical connections and turn power switch to “ON”. y Open and hold the door to desired hold open angle. - Page 12 WARNING This product can expose you to lead which is known to the state of Cali- fornia to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov. WARNING Attention Installer: Improper installation may result in damage to the product and void the factory warranty.
