Assa Abloy SARGENT FIREGUARD 2900 Manual

Assa Abloy SARGENT FIREGUARD 2900 Manual

Electromechanical closer-holder
Hide thumbs

Advertisement

Table of Contents

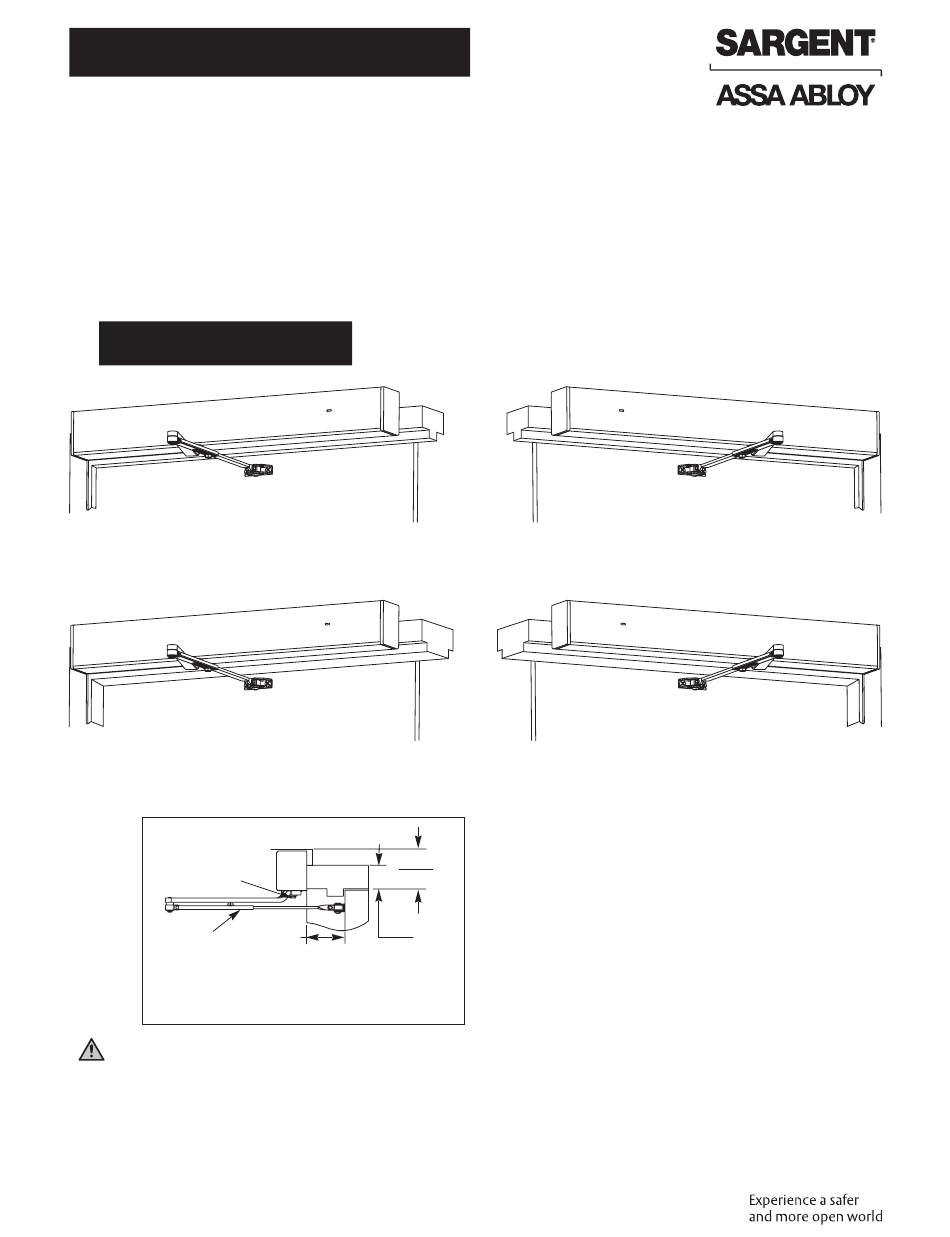

Installation Instructions
2900 FIREGUARD
Electromechanical Closer-Holder
2990 Multipoint Hold Open with Double Lever Arm
Pull (Hinge) Side
Hinge edge of door
Hinge edge of door
Screw &
Washer
Rod
Assembly
For Frame Reveal Range:
*4" Min. to 8-5/8" Max and 180° door opening
WARNING
This product can expose you to lead
which is known to the state of California
to cause cancer and birth defects or other
reproductive harm. For more information
go to www.P65warnings.ca.gov.
1-800-810-WIRE (9473) • www.sargentlock.com
Copyright © 2005, 2010, 2021, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole
or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
Regular Arm for Reveals Up to 7"
Models 2991, 2992, 2993
Deep Reveal Arms
Models 2994, 2995
Ceiling Line
3-1/2
(89)
2
*Reveal
Min
(51)
INSTALLER: LEAVE INSTRUCTIONS FOR BUILDING OWNER
®
(OY or OYA)
General Notes:
1.
Devices are handed and must be the same hand
Min
as door.
2.
Rod assembly portion of arm assembly increases
in length for deeper reveals.
3.
Frame face must be a minimum of 2".
4.
Ceiling clearance must be a minimum of 3-1/2"
closer.
Hinge edge of door
Hinge edge of door
A7397C 09/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SARGENT FIREGUARD 2900 and is the answer not in the manual?

Questions and answers

Related Manuals for Assa Abloy SARGENT FIREGUARD 2900

Summary of Contents for Assa Abloy SARGENT FIREGUARD 2900

  • Page 1 Installation Instructions 2900 FIREGUARD ® Electromechanical Closer-Holder 2990 Multipoint Hold Open with Double Lever Arm Pull (Hinge) Side Hinge edge of door Hinge edge of door Regular Arm for Reveals Up to 7" Models 2991, 2992, 2993 Hinge edge of door Hinge edge of door Deep Reveal Arms (OY or OYA)

  • Page 2: Table Of Contents

    2900 FIREGUARD Electromechanical Closer-Holder ® 2990 Hold-Open Double Lever Arm/Push (Stop) Side Mounting Installation Instructions Table of Contents Install Body and Backplate Assembly..........2 Install Arm .

  • Page 3: Install Arm

    2900 FIREGUARD Electromechanical Closer-Holder ® 2990 Hold-Open Double Lever Arm/Push (Stop) Side Mounting Installation Instructions Install Arm Regular Arm: 1. Attach foot to door with foot pivot AWAY from Foot hinge edge of door. Move foot pivot to hole nearest hinge for additional closing power for Foot Pivot all models.

  • Page 4: Final Adjustment And Regulating Procedures

    2900 FIREGUARD Electromechanical Closer-Holder ® 2990 Hold-Open Double Lever Arm/Push (Stop) Side Mounting Installation Instructions Final Adjustment and Regulating Procedures Adjust Spring Power According to Chart Maximum Clockwise (Figure 7) Width of Turns of Door Interior Adjusting Turn spring adjustment nut clockwise the Only required number of turns to match door width as indicated in chart.

  • Page 5: Typical Wiring

    2900 FIREGUARD Electromechanical Closer-Holder ® 2990 Hold-Open Double Lever Arm/Push (Stop) Side Mounting Installation Instructions Typical Wiring CAUTION 1. Disconnect all power before beginning installation to prevent electrical shock and equipment damage. 2. Installer must be a trained, experienced service person. 3.

  • Page 6: Optional 80- Prefix Bypass Hold Open Switch

    2900 FIREGUARD Electromechanical Closer-Holder ® 2990 Hold-Open Double Lever Arm/Push (Stop) Side Mounting Installation Instructions Optional 80- Prefix Bypass Hold Open Switch for 2960, 2970 & 2990 FIREGUARD ® General Information The 80 prefix switch allows initial hold open point to be adjustable from 20 degrees through full door opening.

  • Page 7: Template

    2900 FIREGUARD Electromechanical Closer-Holder ® 2990 Hold-Open Double Lever Arm/Push (Stop) Side Mounting Installation Instructions Template 1-800-727-5477 • www.sargentlock.com A7397C 09/21 Copyright © 2005, 2010, 2021, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.
  • Page 8 SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511 USA 800-727-5477 www.sargentlock.com Founded in the early 1800s, SARGENT ® is a market leader in locksets, cylinders, door closers, exit devices, electro-mechanical products and access control systems for new construction, renovation, and replacement applications.
