281 Series
Non Handed Door Closer
281 Series Hold Open Arm Models (25-H, 25-HZ, 25-HZA, 25-PH9), Adjustable from Sizes 1 thru 6, Complies with ADA Requirements.

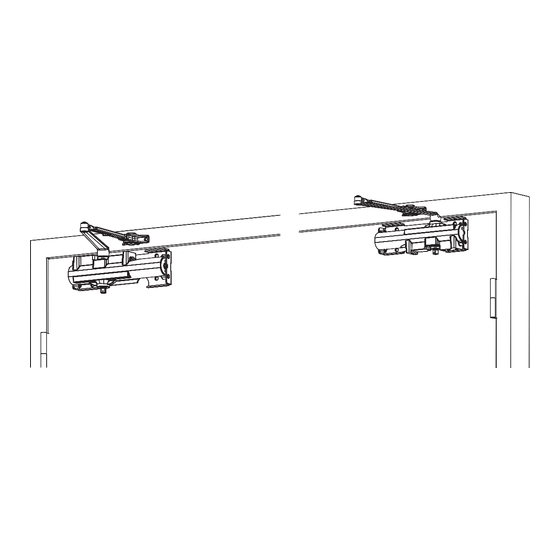

Standard Mount
Closer mounts on hinge side of door
Right Hand Door - RH
Top Jamb Mount
Closer mounts on frame of stop side of door
Left Hand Door - LH
Parallel Arm Mount
Closer mounts on stop side of door
Left Hand Door - LH
Included
Components
Removable
Insert
281 Case
1/8" Hex
Wrench
Plastic or
Metal Cover
1-800-727-5477 • www.sargentlock.com
Copyright © 2003, 2008, 2014, 2020, 2022, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the
express written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
Left Hand Door - LH
Right Hand Door - RH
Right Hand Door - RH
Mounting
Dial Screw
Dial
Bracket
Swivel Arm
Foot
Assembly
Screw
Pack
Main Arm &
Swivel Assembly
Approved 2022-12-08
Foot
Arm
Mounting
Screw
Screw
Foot Bracket
Used with PH9
Parallel Arm Only
Legacy Friction Hold Open Arm
NOTE: Legacy FHO
arm has installation
orientation.See
80-9300-0010-000,
available online.
H8 Mortise Friction Hold Open Arm
NOTE: H8 arm is handed same as door.
See template A7233, available online.
PH4 Friction Hold Open Arm
NOTE: PH4 parallel arm is used for flush
frame applications. See template A7229,
available online.
Tools Needed
To Determine Your Hand of Door:
Right Hand
Reverse
RIGHT
LEFT
HAND
HAND
DOOR
DOOR
To Identify Your Closer:
Model ID:
+ = optional DA
Manufacture Date:
Week / Year
A7313E 12/22 Rev 5
Left Hand
Reverse
