Assa Abloy ACCENTRA 2110(F) Installation Instructions Manual

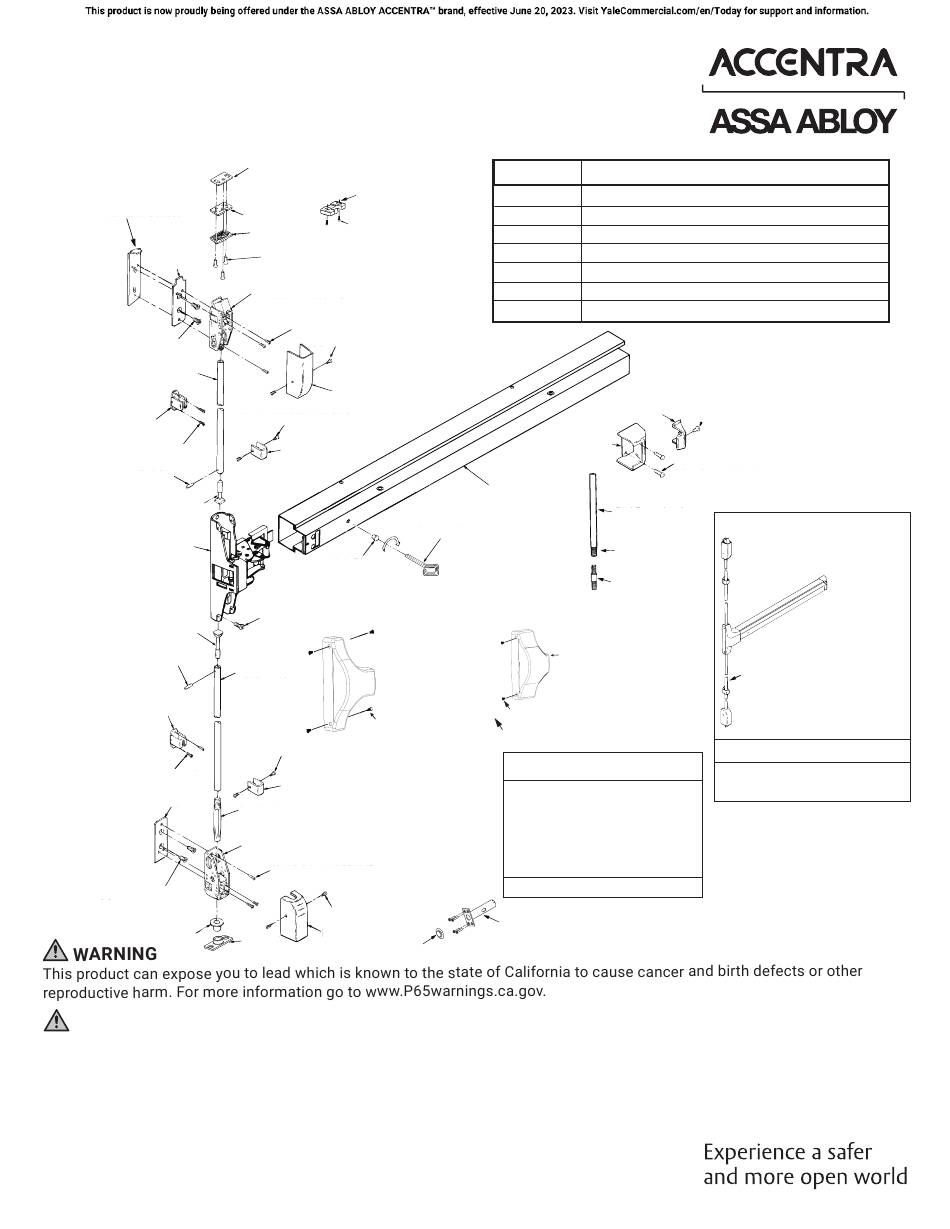

2110(F), 2170(F)(LBR), 1810(F)
Surface Vertical Rod Exit Devices
Installation Instructions
Shim (2 supplied)
Top Strike Angle
and Mounting Plate
for "LBR" Devices
Top Mounting
Plate
(2) 1/4-20 x 3/4" PFHMS
Top Rod
Rod Guide
(2) 8 x 1/2" PRH "AB" SMS
Roll Pin
Top Rod Connector
Center Case
Bottom Rod Connector
Roll Pin
Rod Guide
(2) 8 x 1/2" PRH "AB" SMS
Bottom Mounting Plate
(2) 1/4-20 x 3/4" PFHMS
790 Strike
(Optional Fire Strike)
WARNING
Attention Installer: Any retrofi t or other fi eld modifi cation to a fi re rated opening can potentially impact the fi re rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specifi c
situation. When retrofi tting any portion of an existing fi re-rated opening, or specifying and installing a new fi re-rated opening,
please consult with a code specialist or local code offi cial (Authority Having Jurisdiction) to ensure compliance with all appli-
cable codes and ratings.
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 1999, 2012, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is
prohibited.
#726
Top Strike
for LBR Devices
Strike Plate
12-24 FHPMS
791 Strike
(3) 10-24 x 3/4" PFHMS
or (3) 10 x 1" PFHWS
2110(F), 1810(F) Top Latch
(3) 10-24 x 1/4" PPHMS
(2) 8-32 x 1/4" PFHMS
Latch Cover
(2) 6 x 3/8" PTH "AB" SMS
Guide Cover
Hole Plug
(Fire Devices)
(2) 1/4-20 x 3/4" PRHMS
(Special Head)
Narrow Cover
Bottom Rod
Used With 2110(F),
2170(F)
(4) 8-32 x 5/16" PFHUMS
(2) 6 x 3/8" PTH "AB" SMS
Guide Cover
Deadbolt
2110(F), 1810(F) Bottom Bolt Case
(3) 10-24 x 1/4" PPHMS
(2) 8-32 x 1/4" PFHMS
Latch Cover
794 Strike
Cap Plug
ABBREVIATION
PPH"AB"SMS PHILLIPS PAN HEAD TYPE "AB" SHEET METAL SCREW
PFHUMS
PHILLIPS FLAT HEAD UNDER CUT MACHINE SCREW
PFHMS
PHILLIPS FLAT HEAD MACHINE SCREW
PHILLIPS ROUND HEAD TYPE "AB" SHEET METAL SCREW
PRH"AB"SMS
PHILLIPS TRUSS HEAD TYPE "AB" SHEET METAL SCREW
PTH"AB"SMS
PPHMS PHILLIPS PAN HEAD MACHINE SCREW
PFH"AB"SMS PHILLIPS FLAT HEAD TYPE "AB" SHEET METAL SCREW
End Cap Bottom
Bar Assembly
(See Chart)
Dogging Key
Wide Cover
Used with
1810(F)
(2) 8-32 x 5/16" PFHUMS
Dogging
Feature to hold bolts retracted and
touchpad depressed, for push-pull door
operation.
To Dog Device
1. Insert dogging key.
2. Hold touchbar depressed.
3. Turn key 1/4 turn clockwise.
(Not a feature of fire labeled devices.)
NOTE: All dimensions are in inches (mm) unless otherwise
Popper
(Fire Rated Less Bottom
noted.
Rod Devices Only)
FASTENER DESCRIPTION
(1) 10-24 x 1/2" PPH"F"TCS
End Cap Top
(2) 1/4-20 x 3/4" PRHMS
(Special Head)
Rod Extension Assy
Packed for Reinforced Metal Doors,
Optional Sex Nuts Required for
Unreinforced Metal, Composite
Extension Link
Fusible Extension Link
for Fire Door Over 8'
in Height
Bottom Rod & Latch Components
Not Supplied With LBR (Less
Bottom Rod) Devices
NOTE: This Installation Instructions
cover only standard product. To install
options use installation packed with
optional component, or contact the
factory.
Outside Trim
Device is packed ready for any
wide stile trim.
& Wood Doors
2110, 1810
(Panic Label)
2110F, 1810F
(Fire Label)
80-9421-0010-000 04/24
