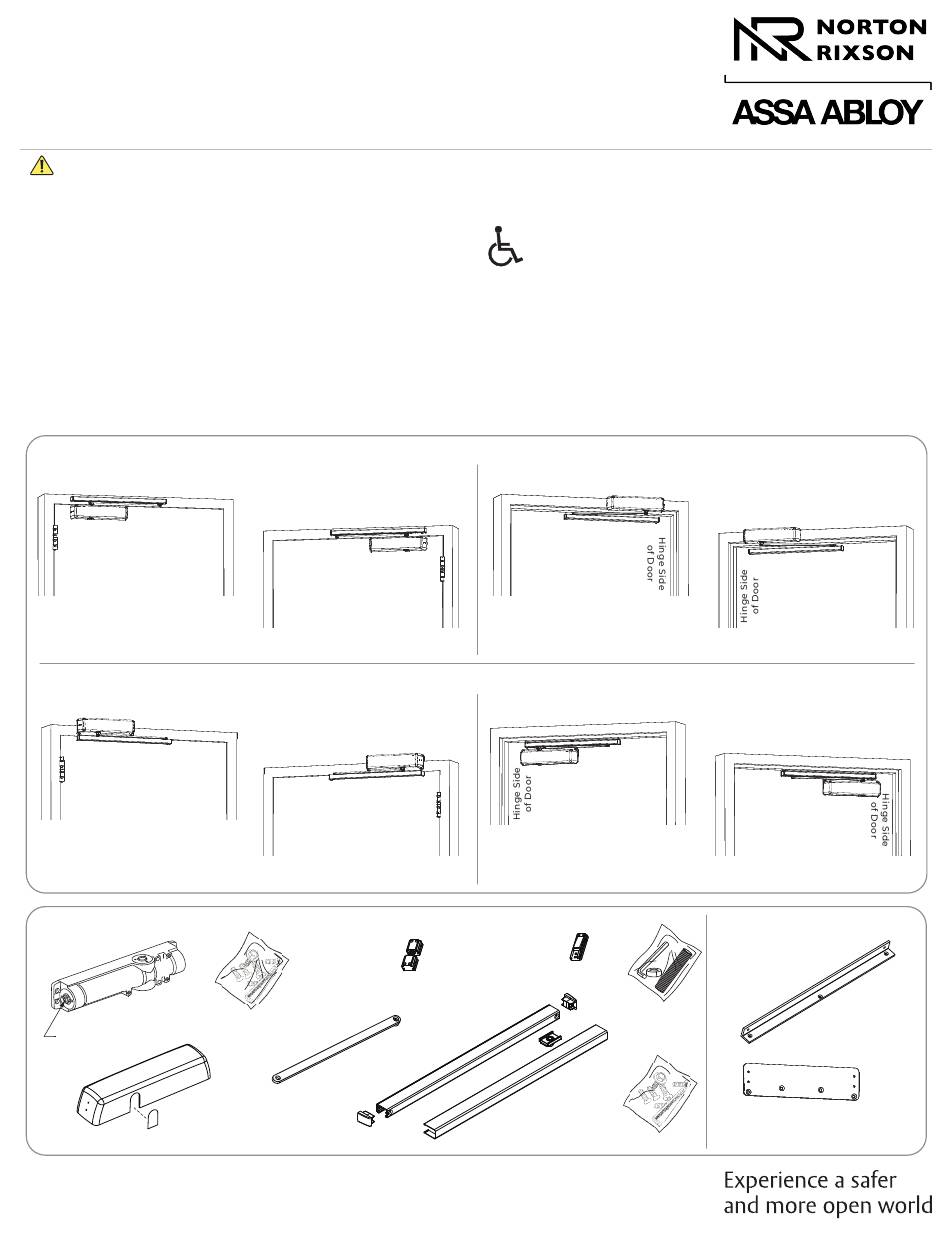

Assa Abloy NORTON RIXSON 2800ST Installation Instructions Manual

2800ST Cam Action Door Closer
Push and Pull Side, Door or Frame Mounted
Non-Hold Open and Hold Open
Installation Instructions
WARNING
This product can expose you to lead which is known to the
state of California to cause cancer and birth defects or other
reproductive harm. For more information go to:
www.P65warnings.ca.gov.
CAUTION
An incorrectly installed or improperly adjusted door closer can
cause property damage or personal injury. These instructions
should be followed to avoid the possibility of misapplication or
misadjustment.
Hold open units are not permitted to be installed in fire door
assemblies.
NOTES:
‒ For special applications a separate door and frame preparation template is packed with these instructions.
‒ Use this instruction sheet for installation sequence and closer adjustments only.
‒ Use of an auxiliary door stop is always recommended.
Pull Side Door Mount
Right Hand Door - RH
Left Hand Reverse - LHR
Pull Side Frame Mount
2888 Back Plate required if frame face is less than 3" (76mm).
Right Hand Door - RH
Left Hand Reverse - LHR
Included Components
Closer Body
Power
Adjustment
Shaft
Full Cover
with Insert
Copyright © 2023, 2024, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9328-0002-020 Rev 3 02/24
Standard Applications
Left Hand Door - LH
Right Hand Reverse - RHR
Optional Applications
Left Hand Door - LH
Right Hand Reverse - RHR
Closer Body
Screw Pack
Spring Stop
Slide Track
Arm
Slide Track
Assembly
Approved 2024-02-26
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
The closing force for Series 2800ST door closers is
adjustable from a size 1 to a size 6, as outlined in ANSI
Standard A156.4. When these series of door closers
are installed and adjusted to conform to ADA reduced
opening force requirements (5 lbs max.) for interior
doors, they may not have adequate closing force to
reliably close and latch the door. Power adjustments
charted on Page 2 are recommended where possible,
to ensure proper door control.
Push Side Frame Mount
Right Hand Door - RH
Left Hand Reverse - LHR
Push Side Door Mount
28STPB Angle Bracket required.
Left Hand Door - LH
Right Hand Reverse - RHR
Hold Open Device
(Standard with
Hold Open model)
Spline Shaft
Screw Pack
Track Mounting
Screw Pack
Left Hand Door - LH
Right Hand Reverse - RHR
Right Hand Door - RH
Left Hand Reverse - LHR
Optional Components
28STPB
Slide Track
Angle Bracket
(required for push
side door mounted
applications)
2888 Back Plate
(required for pull side frame
mounted applications)
