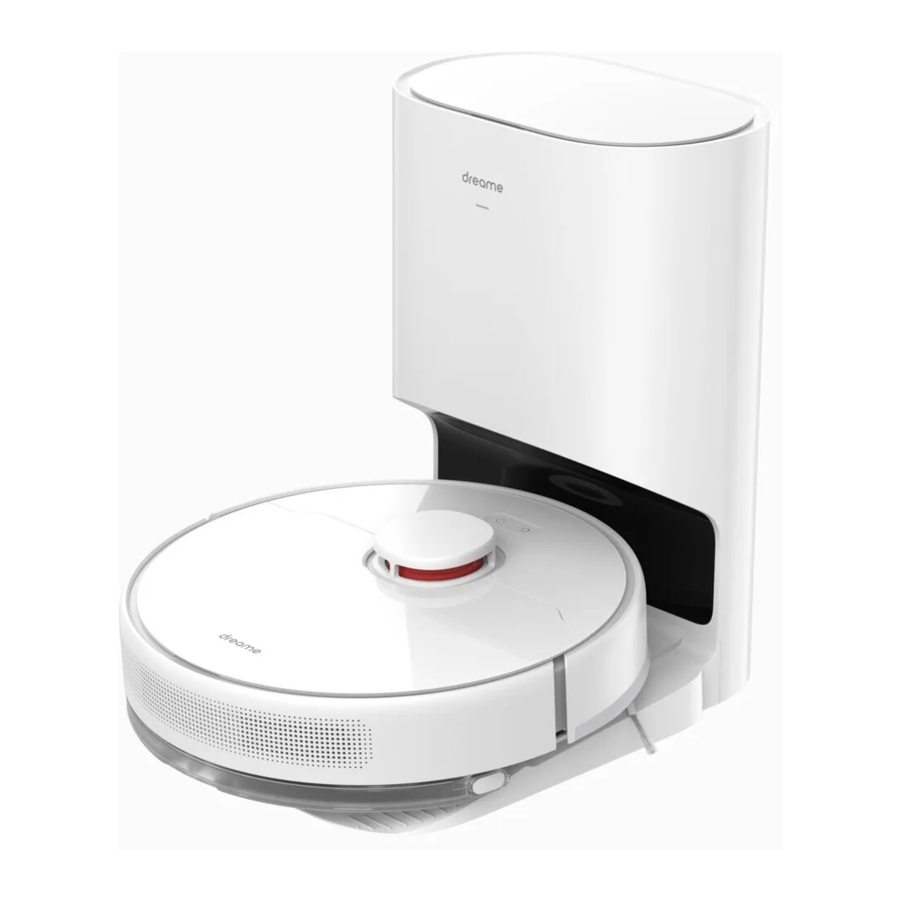

Dreame D10 Plus RLS3D Manual
Also See for D10 Plus:

Advertisement

Dreame D10 Plus RLS3D Manual

Device Overview

Accessories

Pre-Installed Accessories
Overview - Part 1 - Pre-Installed Accessories

Other Accessories
Overview - Part 2 - Other Accessories

Robot

Overview - Part 3 - Robot

Overview - Part 4

Robot Sensors
Overview - Part 5 - Robot Sensors

Auto-Empty Base

Overview - Part 6 - Auto-Empty Base

Back
Overview - Part 7

Open the Upper Cover
Overview - Part 8

Bottom
Overview - Part 9

Dust Bin

Overview - Part 10 - Dust Bin

Dust Collection Bag

Note: Due to the factory setting, a new dust collection bag has been installed inside already.

Mopping Module

Water Tank
Overview - Part 12 - Mopping Module

Mop Pad
Overview - Part 13

Clearing Home Environment

  • To improve the working efficiency of your robot, remove any loose cords, rags, slippers, toys, or other objects from the floor.
  • Before cleaning, place a physical barrier at the edge of stairs and near sofas to ensure safe and smooth operation of the robot.
  • Open the door of the room that needs to be cleaned, and place furniture in its proper position to create more space for the robot to navigate.
  • To prevent the robot from failing to recognize the areas that need to be cleaned, do not stand in front of the robot, doorways, hallways, or narrow spaces.

Preparation Before Use

Remove the protective strips

  • Carefully remove the protective strips from the robot.

Install the side brush

  • Install the side brush by aligning it with the slot and pressing it in until it clicks into place.

Connect to a power outlet and start charging

Connect to a power outlet and start charging

  • Place the charging base on level ground, against a wall, and plug it into a power outlet.
  • Position the robot on the base to start charging automatically.
  • It is recommended to fully charge the robot before using it for the first time.

Note:

  • Keep the immediate area around the base clear: at least 1.5 m in front, 0.5 m on both sides, and 0.5 m behind.
  • Ensure no objects block the signaling area.

About the Auto-Empty Base

  • The robot should set out from the base before starting the cleaning cycle.
  • Do not move the base while the robot is cleaning to ensure it can return to the base smoothly.
  • Once the robot completes cleaning and returns to the base, the base will automatically begin the auto-emptying process.
  • Additional settings can be configured through the app.

Connect with Dreamehome or Mi Home/Xiaomi Home App

This product is compatible with the Dreamehome or Mi Home/Xiaomi Home app, allowing you to control your robot remotely.

Download the Dreamehome or Mi Home/Xiaomi Home App

  • Scan the QR code on the robot or search for "Dreamehome," "Mi Home," or "Xiaomi Home" in your app store to download and install the app based on your preference.

www.apple.com

play.google.com

Add Device

  • Mi Home/Xiaomi Home App: Open the Mi Home/Xiaomi Home app, tap the "+" icon in the upper right corner, and scan the QR code again to add "Dreame Bot D10 Plus." Follow the prompts to complete the Wi-Fi connection.
  • Dreamehome App: Open the Dreamehome app, tap "+" in the upper right corner, go to the "Add Device" page, and select "Dreame Bot D10 Plus." Follow the prompts to complete the Wi-Fi connection.

Note:

  • Only 2.4 GHz Wi-Fi is supported.
  • The version of the app may be updated. Please follow the instructions based on the latest version available.

Reset Wi-Fi

  • Simultaneously press and hold the power button and home button until you hear the voice prompt: "Waiting for the network configuration."
  • Once the Wi-Fi indicator is blinking slowly, the Wi-Fi has been successfully reset.
    Reset Wi-Fi

Note: If your robot is unable to connect to the app, reset the Wi-Fi and follow the steps again to add the device.

How to Use

Turn On/Off

  • Press and hold the button () for 3 seconds to turn on the robot. Once the power indicator turns solid white, the robot is in standby mode. To turn off the robot, press and hold the button () for 3 seconds when the robot is not moving.

Start Cleaning

  • Briefly press the button () to activate the robot. Upon activation, the robot will accurately map out a cleaning route, methodically cleaning along edges and walls before finishing the room in an S-shaped pattern to ensure thorough coverage.

Cleaning Mode

  • The Dreame Bot D10 Plus offers multiple cleaning modes: Quiet, Standard, Strong, and Turbo. The default mode is Standard. You can customize the cleaning mode in the Dreamehome or Mi Home/Xiaomi Home app.

Pause/Sleep Mode

  • Pause: Press any button briefly to pause the robot during cleaning.
  • Sleep Mode: If the robot remains paused for more than 10 minutes, it will automatically enter Sleep Mode. The power indicator and charging indicator will go off. To wake the robot, press any button.

Note:

  • The robot will turn off automatically if left in Sleep Mode for more than 12 hours.
  • If the robot is paused and placed on the base, the current cleaning task will end.

Spot Clean Mode

  • When the robot is paused or in Standby Mode, press and hold the button for 3 seconds to activate Spot Clean Mode. In this mode, the robot will clean a square-shaped area of 1.5 x 1.5 meters directly around the robot. Once spot cleaning is complete, the robot will return to its original location and power off.

Note: Activating Spot Clean Mode will end the current cleaning task.

Additional App Functions

Follow the instructions on the app interface to access additional features. The version of the app might be updated, so follow the instructions based on the current app version.

Use the Mopping Function

  • It is recommended that all floors are vacuumed at least three times before the first mopping session to ensure a better cleaning effect.

Steps for Mopping:

  • Dampen the mop pad: Wring out excess water. Insert the mop pad into the slot of the water tank as shown, and paste the pad firmly.
    Use the Mopping Function
  • Fill the water tank: Open the water tank lid, fill it with water, and securely close the lid.

Note: Do not use detergent or disinfectant.

Attach the mopping module: Align the mopping module as indicated, then slide it into the back of the robot until it clicks into place. Press the button () or use the Dreamehome or Mi Home/Xiaomi Home app to begin cleaning.

Note:

  • It is not recommended to use the mopping function on carpets.
  • Use the app to adjust the water flow as needed.

Remove the water tank: Press the two side clips inward and slide the water tank backward to remove it from the robot.

Note:
When the robot is not in use, or during charging, remove the mopping module and pour out the remaining water in the tank. Clean the mop pad to prevent mildew or odors.

Routine Maintenance

Clean the Dust Bin

(Clean after each use)
Cleaning - Step 1 - Clean the Dust Bin

  • Open the robot cover, then press the dust bin clip to remove the dust bin.
  • Open the bin cover and empty the bin as shown in the diagram.
  • Clean the dust intake.

Clean the Filter

Cleaning - Step 2 - Clean the Filter

  • Remove the filter and gently tap its basket.
  • Do not wash the filter. Only the dust bin is washable. Thoroughly dry the bin before reinstalling.

Note:

  • Do not attempt to clean the filter with brushes or fingers.
  • Rinse the dust bin with clean water only. Do not use detergent.
  • Only use the dust bin and filter when they are completely dry.
  • The filter should be cleaned every two weeks and replaced every three months.

Clean the Mopping Module

  • Press the two release clips on the sides of the water tank, remove the mopping module, and pull the mop pad off.
    Cleaning - Step 3 - Clean the Mopping Module
  • Pour out the water from the tank. Clean with water only and allow it to air dry before reinstalling.
  • Clean the mop pad with water and leave it to air dry before re-installing.

    Note:
    • Remove the mop pad from the module before cleaning it and ensure dirty water does not flow back into the water outlet to avoid clogging.
    • Replace the mop pad every 3-6 months for optimal performance.
  • If slow water flow occurs, or if water distribution is uneven, clean the air hole in the water tank cover.

Note: Do not expose the tank to direct sunlight.

Clean the Main Brush

  • Press the brush guard clips inward to remove the brush guard and lift the brush out.
    Cleaning - Step 4 - Clean the Main Brush
  • Pull out the brush covers as shown. Use the included cleaning tool to remove any hair or debris tangled in the brush.

Note: Do not pull hair tangled in the main brush excessively, as it may damage the brush.

Clean the Side Brush

  • Pull out the side brushes and use the cleaning tool to remove any hair tangled in the brush.

Clean the Main Wheel/Universal Wheel

  • Use a small screwdriver to separate the axle and tire of the universal wheel.

Note: Wet cloths can damage sensitive elements within the robot and base. Please use dry rags for cleaning.

Replace the Dust Collection Bag

According to the status indicator (blinking orange) and app prompts, replace the dust collection bag when full. It is recommended to replace the bag every 4-6 weeks.

  • Discard the old dust collection bag.
    Replace the Dust Collection Bag
    Note: When taking out the dust collection bag, close the dust bag handle to avoid dust leaking out.
  • Wipe the filter with a dry cloth.
  • Install a new dust collection bag.
  • Close the upper cover of the auto-empty base.

Note: Do not close the base forcefully if the upper cover cannot close properly or if the dust collection bag is not installed.

Clean the Air Duct

If the air duct is blocked, follow these steps:

  • Unscrew the mounting screws on the air duct cover and remove the cover plate.
  • Check for any foreign objects blocking the air duct and clean them.
  • Reinstall the air duct cover as shown.

Robot Restarting: If the robot stops responding or cannot be turned off, press and hold the button (ON/OFF) for 10 seconds to force a shutdown. Then press and hold the button (ON/OFF) for 3 seconds to restart.
Battery Care: The robot contains a high-performance lithium-ion battery. Ensure it remains well charged for daily use to maintain optimal performance. If the robot will not be used for an extended period, fully charge it, turn it off, and store it away. Recharge the robot at least once every three months to prevent damage from over-discharging.

Status Indicator

The following table lists possible causes and solutions for different light statuses. For more support, please refer to the section "FAQ" in this manual.

Light Status Possible Cause Solution
Off No power supply Check and ensure that the power supply for the base is normal.
The robot is in the DND period /
The robot with full charge in sleep mode /
White The robot is not on the base /
Breathing White The robot is charging /
Blinking Orange Error Check whether a dust collection bag is installed. If not, install one.
Check whether the dust collection bag is in place.
Check whether the upper cover is closed. If not, close the upper cover tightly.
Check whether the bag is full. If so, replace it.
Remove debris around the dust intake of the robot and base.
Unplug the power cord of the base and check if any foreign objects are blocking the air duct. If any, clean them.
Check whether the dust bin of the robot is installed.
For other errors, contact qualified technicians or after-sales service.

FAQ

Problem Type Solution
Robot does not turn on The battery level is low. Recharge the robot on the base, then try again.
The ambient temperature is too low (below 0°C) or too high (above 40°C). The operating temperature of the robot is 0°C to 40°C.
Robot cannot recharge The base is not receiving power. Confirm that both ends of the power cord are plugged in correctly.
Poor contact. Clean the charging contacts of the base and robot.
Robot cannot return to the base There are too many obstructions around the base. Place the base in a more open area.
Please clean the signaling area of the base.
Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot is too far from the base, manually place it on the base.
Robot is malfunctioning Turn off the robot and then reactivate it.
Robot is making a strange noise A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the robot and remove the debris.
Robot no longer cleans efficiently or leaves dust behind The dust bin is full. Clean the dust bin and dust intake.
The filter is blocked. Please clean it.
A foreign object is caught in the main brush. Please clean it.
Robot cannot connect to Wi-Fi There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of the Dreamehome or Mi Home/Xiaomi Home app, then try reconnecting.
Location permission is not open. Ensure location permission is enabled in the Dreamehome or Mi Home/Xiaomi Home app.
Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.
5GHz Wi-Fi is not supported. Ensure the robot connects to 2.4GHz Wi-Fi.
The username or password for Wi-Fi is incorrect. Enter the correct username and password.
Robot does not perform scheduled cleaning The robot has low battery. Scheduled cleaning will not start unless the robot has been recharged in time.
Leaving the robot on the base consumes power if it is already fully charged? Leaving the robot on the base after it is fully charged consumes very little electricity and helps maintain optimal battery performance.
No water comes out of the mopping module, or only a little bit comes out Check whether there is water inside the water tank.
Clean the mop pad if it becomes dirty.
Ensure the mop pad is installed correctly according to the user manual.
Clean the blowhole on the top of the water tank.
Robot doesn't resume cleaning after charging Ensure the robot is not set to Do Not Disturb mode (DND), which prevents it from resuming cleaning.
The robot does not resume cleaning if it is manually recharged or placed on the base.
Robot returns to the base without performing auto-empty tasks DND mode prevents the robot from performing auto-empty tasks.
The dust collection bag is full Check if the dust collection bag is full. If so, replace it with a new one. It is recommended to replace the bag every 4-6 weeks. Remove any blockage before use.
The auto-empty duration can be unacceptably long sometimes When the robot has been performing auto-empty tasks for a long period, or when the air duct does not function smoothly, the auto-empty duration is extended to prevent blockage.
The upper cover of the base fails to be closed Check whether a dust collection bag is installed. If not, install one.

Specifications

Robot

Model RLS3D
Battery 5200 mAh (Nominal Capacity)
Charging Time Approx. 6 hours
Wireless Connectivity Wi-Fi IEEE 802.11b/g/n 2.4 GHz
OS Compatibility Android 4.4 & iOS 10.0 or above
Rated Voltage 14.4 V⎓
Rated Power 46 W
Operation Frequency 2400-2483.5 MHz
Maximum Output Power < 20 dBm

Auto-Empty Base

Model RCS7
Rated Input 220-240 V~ 50-60 Hz
Rated Output 19.8 V⎓ 1 A
Rated Power 600 W

Note: Under normal usage conditions, this equipment should be kept at a distance of at least 20 cm between the antenna and the user.

Safety Information

Read this manual carefully before use and keep it for future reference.

Usage Restrictions

  • This product should not be used by children younger than 8 years old or persons with physical, sensory, or intellectual deficiencies, or limited experience or knowledge without the supervision of a parent or guardian to ensure safe operation and to avoid any risks. Cleaning and maintenance shall not be performed by children without supervision.
  • Children shall not play with this product. Ensure children and pets are kept at a safe distance from the robot while it is operating.
  • This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting.
  • Do not use the robot in an area suspended above ground level without a protective barrier.
  • Do not place the robot upside down. Do not use the LDS cover, robot cover, or bumper as a handle for the robot.
  • Do not use the robot at an ambient temperature above 40°C or below 0°C or on a floor with liquids or sticky substances.
  • Pick up any cables from the floor before using the robot to prevent it from dragging them while cleaning.
  • Remove fragile or small items from the floor to prevent the robot from bumping into and damaging them.
  • Keep hair, fingers, and other body parts away from the suction opening of the robot.
  • Keep the cleaning tool out of reach of children.
  • Do not place children, pets, or any items on top of the robot, regardless of whether it is stationary or moving.
  • Do not use the robot to clean any burning objects.
  • Do not vacuum hard or sharp objects.
  • Make sure the robot is turned off and the auto-empty base is unplugged before cleaning or performing maintenance.
  • Do not use a wet cloth to wipe or any liquid to rinse the robot and base. Washable parts must be dried completely before installing and using them.
  • Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage that arises from improper use of this product.

Batteries and Charging

  • Do not use any third-party battery or auto-empty base. Use only the RCS7 supply unit.
  • Do not attempt to disassemble, repair, or modify the battery or auto-empty base on your own.
  • Do not place the auto-empty base near a heat source.
  • Do not use a wet cloth or wet hands to wipe or clean the base's charging contacts.
  • Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an appropriate recycling facility.
  • If the power cord becomes damaged or broken, stop using it immediately and contact after sales service.
  • Make sure the robot is turned off when being transported and kept in its original packaging if possible.
  • If the robot will not be used for an extended period, fully charge it, then turn it off and store it in a cool, dry place. Recharge the robot at least once every 3 months to avoid over discharging the battery.
  • This product contains batteries that can only be replaced by qualified technicians or after sales service.

Laser Distance Sensor

  • The laser distance sensor complies with the IEC 60825-1:2014 standard for Class 1 laser products and does not generate dangerous laser radiation.

www.alza.co.uk/kontakt
+44 (0)203 514 4411
Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Dreame D10 Plus RLS3D Manual

Advertisement

Need help?

Need help?

Do you have a question about the D10 Plus and is the answer not in the manual?

Questions and answers

Table of Contents
