Dreame D9 (RLS5-WH0) - Robot Vacuum Manual

Accessories

Note: The illustrations in this manual are for reference only. Please refer to the actual product for the actual appearance.

Product Overview

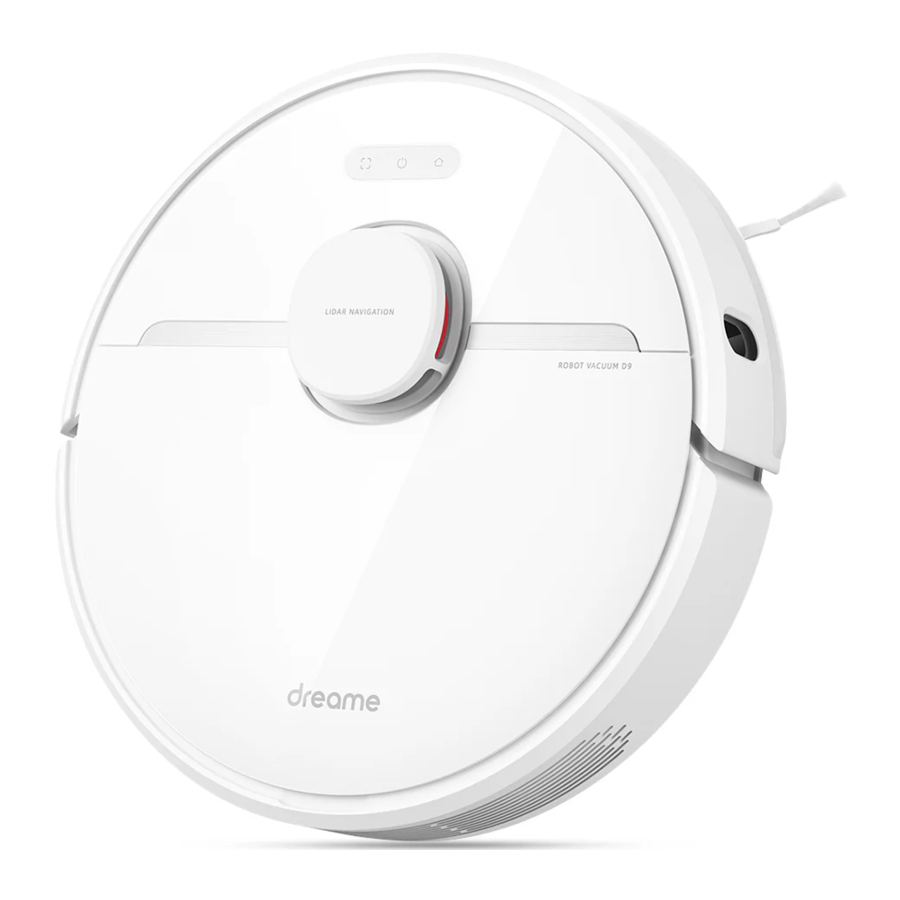

Robot

Robot Sensors

Dust Bin

Mopping Module

Charging Dock

Clearing Home Environment

To prevent your robot from getting tangled or trapped, tidy up any loose cord (including power cord of charging dock), dishcloth, slipper, toy, etc.

Before cleaning, use physical barrier at the edge of stairs and sofa to prevent your robot from getting trapped or tumbling down.

Open the door of the room to be cleaned, and put the furniture into proper place to make more space.

To prevent the robot from not recognizing the area to be cleaned, do not stand in the front of robot, threshold, hall way or narrow places.

Preparation

1. Remove the protective films on the side of collision buffer and charging dock.

2. Install the side brush

   Note: Install the side brush until it clicks into place.
3. Place the charging dock on the level ground against wall and connect to a power outlet.


Note:

• Make sure there is a distance of 0. 5 meters or more on either side of the charging dock, and more than 1. 5 meters in front of it.
• Tidy up any loose cord which could accidentally move or unplug the charging dock.
• To ensure you can well connect to the robot with your phone, make sure the robot and charging dock are in the range of Wi-Fi.
• Do not place the charging dock in an area with direct sunlight or where other objects could block its signaling area, as this may hinder the robot from returning to the charging dock.

4. Place the robot onto the charging dock to recharge. The robot will turn on automatically and charge


Battery Level Indicator

• White: Battery level is more than 15%
• Orange: Battery level is less than 15%

Note:

• Fully charge before first use.
• Don't install the mopping module while charging. Ensure the charging is in a safe environment to prevent floor damage caused by wet dishcloth.

Connecting with Mi Home/Xiaomi Home App

This product works with Mi Home/Xiaomi Home app *.

1. Download Mi Home/Xiaomi Home App
   Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search "Mi Home/Xiaomi Home" in the App Store to download and install it.

1. Add Device
   Open Mi Home / Xomi Home app, and tap "" on the upper right. Then tap top right corner scan the QR code, add "Dreame Robot Vacuum D9" and follow prompts to finish the connection.


Note

• Only 2. 4GHz Wi-Fi is supported.
• The version of the app might have been updated. please follow the instructions based on the current app version.

3. Reset Wi-Fi
   Simultaneously press and hold the buttons and until you hear a voice saying "Waiting for the network configuration". Once the Wi-Fi indicator is slowly blinking, the Wi-Fi has been successfully reset


Note: When your phone does not connect to the robot successfully, reset the Wi-Fi and add the device again

1. Turn On/Off
   Press and hold the button for 3 seconds to turn on the robot. Once the power indicator turns solid white, the robot is in standby mode. To turn off the robot, press and hold the button for 3 seconds while the robot is stationary. Turning off the robot will end the current cleaning task.
2. Start Cleaning
   Press the button briefly to turn on the robot. Upon activation, the robot will accurately map out routes, and then methodically clean each room in a way that it firstly cleans along edges and walls and then cleans floors in an S-shape pattern to ensure a thorough job.


Note: If the battery is too low, the robot will automatically return to the dock to charge. It will resume unfnished cleaning tasks after charging to the appropriate power. (Resume Cleaning mode need to open in advance on the APP. )

3. Cleaning Mode
   Four cleaning modes are available in the Mi Home/Xiaomi Home app: Quiet, Standard, Strong and Turbo. The default mode is Standard.
4. Pausing/Sleep Mode
   Pausing: Press any button to pause the robot during cleaning.
   Sleep Mode: The robot will automatically enter sleep mode after 10 minutes of inactivity, then the power and charging indicators will go off. To wake up the robot, press any button.

Note:

• The robot will turn off automatically in the sleep mode more than 12 hours.
• When the robot is paused, placing it onto the charging dock will end the current cleaning task.

5. Do Not Disturb Mode
   Do Not Disturb mode prevents the robot from automatically starting cleaning tasks, and the power indicator remains off. You can enable Do Not Disturb or modify its hours in the app. (The mode is opened by default from 22:00 to 08:00. )

Note:

• Scheduled cleanups will still be carried out during the DND period.
• The robot will continue cleaning after this period ends.

6. Spot Clean mode
   When the robot is in standby mode or paused, press and hold the button for 3 seconds to start Spot Clean mode. In this mode, it will clean a square-shaped area of 1. 5 ×1. 5 meters directly around the robot. When the spot cleaning is done, the robot will automatically return to its original location and shut off.


Note: Activating Spot Clean mode will end the current cleaning task of the robot.

7. Scheduled Cleaning
   You can schedule cleaning time in the Mi Home/Xiaomi Home app. The robot will automatically start cleaning at the designated time and then return to the charging dock to recharge when the cleaning is done.
8. More APP Functions
   Follow the instructions on the APP interface to use more functions. The version of the app might have been updated, and please follow the instructions based on the current app version.
9. Use the Mopping Function
   It is recommended that all floors are vacuumed at least three times before the first mopping session to achieve better cleaning effect.
   1. Dampen the mop pad and wring out excess water. Slide the pad all the way into the slot of the water tank until it is securely in place.

   2. Open the water tank lid, fill the tank with water, then securely close the lid.


Note: Do not use non-designated detergents or disinfectants.

3. Align the mopping module as indicated by the arrow, then slide it into the back off the robot until it clicks into place. Press the button or use MiHome/Xiaomi Home app to start cleaning.


Note:

• It is not recommended to use the mopping function on the carpets.
• Use the app to adjust the water flow as required.

4. Press the two side clips inwards and slide the water tank backwards to separate it from the robot.


Note: When the robot is charging or not in use, remove the mopping module, pour out all remaining water in the tank, and clean the mop pad to prevent mildew or lingering odors.

Clean the Dust Bin and Filter

1. Open the robot cover, then press the dust bin clip to remove the dust bin.

2. Open the dust bin cover as indicated by the diagram.

3. Remove the filter and tap it basket gently.


Note: Do not attempt to clean the flter with a brush or fnger.

4. Rinse the dust bin and filter with water until it is clean. Thoroughly dry the filter before re-installing.


Note:

• Only clean water should be used to clean the filter. Do not use detergent.
• Keep it in a well-ventilated or cool plac.

Clean the Mopping Module

1. Press the two release clips on the side of water tank, remove the mopping module and pull the mop pad off the mopping module

2. Pour out the water in the tank. Clean with water only and leave to air dry before re-installing.

   Note: Do not use any cleaning agents or disinfectants.
3. Clean the mop pad with water only and leave to air dry before re-installing.


Note

• Remove the pad from the mopping module before cleaning it, and make sure dirty water does not flow back into the water outlet to avoid clogging.
• For optimal performance, it is recommended to replace the mop pad every 3 to 6 mouths.

4. If slow water flow occurs, or the volume is not well-distributed, please clean the air hole in the cover of the water tank.


Clean the Main Brush

1. Press the brush guard clips inwards to remove the brush guard and lift the brush out of the robot.

2. Pull out the brush covers as indicated by the diagram. Use the included cleaning tool to remove any hairs tangled on the brush.


Clean the Side Brush

1. Pull out the side brushes and use the included cleaning tool to remove any hair tangled on the brush.


Note Do not pull out the hair excessively to avoid the damage of brush when the hair is tightly tangled on the brush.

Clean the Main Wheel / Omnidirectional Wheel

Note: Use tools such as a small screwdriver, etc. to separate the axle and the tire.

Note: Please use dry dishcloth for cleaning, as the robot and inner charging dock include sensitive elements. Do not use wet dishcloth to prevent damage caused by water.

Clean the Laser Distance Sensor / Returning to Charge Sensor /Edge Sensor

Clean the Charging Contact

Robot Restarting
If the robot stops responding or cannot be turned off, press and hold down the button for 10 seconds to forcefully turn it off. Then press and hold the button for 3 seconds to turn the robot on.

Battery
The robot contains a high-performance lithium-ion battery pack. Please ensure that it remains well-charged during daily use to maintain optimal battery performance. If the robot is not used for an extended period, turn it off and put it away. To prevent damage from over-discharging, the robot should be recharged at least once every three months.

FAQ

Specifcations

Robot

Model	RLS5-WH0
Battery	5200 mAh(Battery Nominal Capacity)
Charging Time	Approx. 6 hours
Wireless Connectivity	Wi-Fi IEEE 802. 11b/g/n 2. 4 GHz
Rated Voltage	14. 4 V
Rated Power	40 W
Operation Frequency	2400-2483. 5 MHz
Maximum Output Power	< 20 dBm

Charging Dock

Model	RCS0
Rated Input	100-240 V ~ 50/60 Hz 0. 5 A
Rated Output	19. 8 V 1 A

Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

For more information, please visit www. dreame-technology. com

Manufactured by: Dreame Trading (Tianjin) Co. , Ltd.
