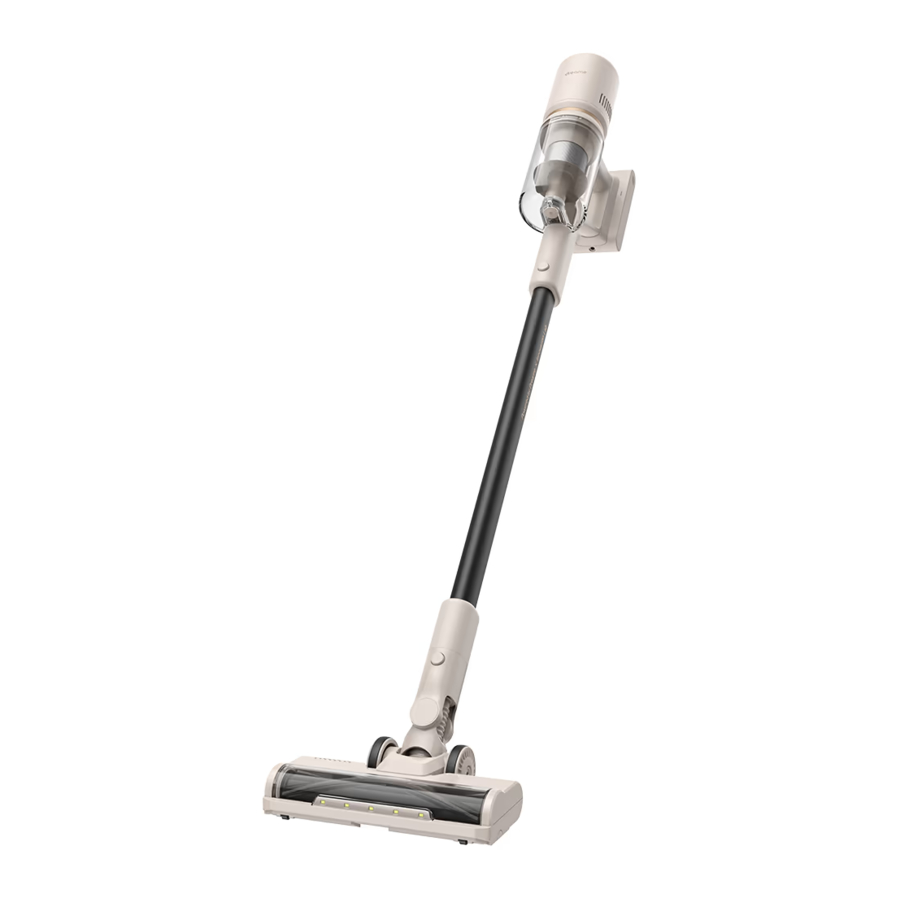

Dreame U10 - Cordless Stick Vacuum User Manual

Note: The illustrations in this manual are indicative only. The actual product may differ.

Fig. A

1. Extension Rod
2. Combination Tool
3. Charger
4. Multi-Surface Brush
5. Wall Mount (Including screw × 2, wall plug × 2)

Components

Fig. B

1. Power Button (Press to turn on/Release to turn off)
2. Suction Level Status Indicator
   Turbo MedEco
3. Suction Level Switch
4. Dust Cup
5. Dust Cup Release Button
6. Multi-Surface Brush
7. Antistatic Contact
8. Battery Status Indicator
9. Battery Pack Release Button
10. Charging Port
11. Extension Rod Release Button
12. Extension Rod
13. Brush Release Button

Installation

• Vacuum and Accessories Installation
  Fig. C-1

• Wall Mount Installation
  The mount should be installed in a cool, dry place near a power outlet. Make sure the installation area is clear of any pipes such as gas or water lines, and air ducts, electric wires and cables, or drainage lines.

1. Before installation, measure the wall in the height of 102 cm (40.2 inches) above the ground.
2. Mark and drill two 8 mm (0.315 inch) diameter holes into the wall with an electric drill. Insert the wall plugs into the holes.
3. Align the position holes on the mount with the holes on the wall. Fasten it to the wall with the included screws. Fig. C-2


Operation

Charging

• Connecting the charger to the wall mount

1. Rotate the clip in the bottom of wall mount 90 degrees counterclockwise to remove it from the mount.
2. Insert the power cord into the notch on the clip.
3. Rotate the clip 90 degrees clockwise until it clicks into place.
   Fig. D-1


• Put the vacuum cleaner on the wall mount and plug the charger into the charging port.
  Fig. D-2

• Battery Status Indicator
  Fig. D-3


Charging
Fully charged
Charging

Discharging

Battery Level 10%
Battery Level 10%

Solid white
Blinking white
off

Note:

1. The vacuum cannot be used while charging.
2. Fully charge the vacuum before using it for the first time. This will take about 3 hours.
3. Vacuuming at Turbo mode for a prolonged period will cause the battery to heat up, which increases charging time. Allow the vacuum to cool down for 30 minutes before charging it.

Working Method

Press and hold the power button to start the appliance, and release the button to stop immediately.
Fig. D-4

Switching Suction Level

Press briefly to switch between eco, med and turbo mode.
Fig. D-5

Using Different Accessories

• Multi-Surface Brush
  Suitable for vacuuming on the med/low pile carpets, tiles and floors.
  Fig. D-6

  Note:

1. The multi-surface brush can be attached directly to the vacuum.
2. When the appliance starts, the lights in front of the brush roller will automatically turn on, which is convenient for use.

• Combination Tool
  Suitable for vacuuming cracks, corners of doors and windows, stairs, and other hard-to-reach places.
  Fig. D-7

  Note:

1. If any rotating part becomes stuck, the vacuum may shut off automatically. Remove any trapped foreign objects, then resume use.
2. When the battery becomes overheated, the vacuum will automatically shut off. Wait until the battery temperature returns to normal, then resume use.

Care & Maintenance

Tips:

1. Always use genuine parts to keep your warranty from being void.
2. If the filter or nozzle becomes clogged, the vacuum will stop working shortly after being turned on. Clean it to restore functionality.
3. If the vacuum is not used for an extended period, fully charge it, unplug its charger, remove the battery, and store it in a cool, low-humidity environment away from direct sunlight. To avoid over-discharging the battery, recharge the battery at least once every three months.

Cleaning the Vacuum

Wipe the vacuum with a soft dry cloth.

Cleaning the Dust Cup, Pre-Filter, and Cyclone Assembly

Before cleaning the dust cup, disconnect the charger and keep the vacuum's power button in the off position.

• Press the dust cup release button and remove it from the vacuum.
  Fig. E-1

• Remove the pre-filter first, and then rotate the cyclone system to lift it out.
  Fig. E-2

• Empty the dust cup.
  Fig. E-3

• Rinse the cyclone assembly, pre-filter, and dust cup until they are clean. After washing, air dry for at least 24 hours.
  Fig. E-4

  Note:

1. It is recommended to clean the dust cup after use.
2. It is recommended to clean the cyclone system and pre-filter at least once every 3 to 4 months.

Installing the Dust Cup, PreFilter, and Cyclone Assembly

• Install the cyclone assembly and pre-filter into the dust cup.
  Fig. E-5

• Slightly tilt the dust cup so the slot aligns with the clip on the vacuum. Then gently push the dust cup until it clicks into place.
  Fig. E-6


Cleaning the Filter

It is recommended to clean the filter once every 4 to 6 months.

• Remove the dust cup as shown in the figure.
  Fig. E-7

• Remove the filter from the vacuum by pulling it down in the direction shown in the figure.
  Fig. E-8

• Rinse the filter with rotating it 360°. Lightly tap the filter several times to remove any debris caught in it. Fig. E-9


Note:

1. Only use clean water to wash the filter. Do not use detergent.
2. Do not attempt to clean the filter with a brush or finger.

• Allow the filter to air dry for 24 hours.
  Fig. E-10


Installing the Filter

• Insert the filter into the vacuum.
  Fig. E-11

• Reinstall the dust cup.
  Fig. E-12


Replacing the Battery Pack

The vacuum contains a removable rechargeable lithium-ion battery pack which has a limited number of recharge cycles. After extended use, the battery pack may no longer hold a charge. If this happens, it means the battery pack has reached the end of its life cycle and needs to be replaced.

• Press down the battery pack release button and slide the battery pack to the right, as illustrated, to remove it.
• Install the new battery pack.
  Fig. E-13


Cleaning the Multi-Surface Brush

• Press the roller release button until you hear a click.
  Fig. E-14

• Detach the side brush cover and remove the brush roller from the slot.
  Fig. E-15

• Use scissors to cut off hairs and fibers tangled on the brush roller. Wipe the dust from the notch and brush cover with a dry cloth or paper towel.
  Fig. E-16

• When it is dirty, rinse the brush roller with clean water until it is clean.
  Fig. E-17

• Stand the brush roller upright for at least 24 hours until it is fully dry.
  Fig. E-18


Specifications

Vacuum Cleaner
Model	VPV20A
Rated Power	310 W
Rated Voltage	25.2 V
Charging Time	approximately 3 hours
Multi-Surface Brush
Model	VMG1
Rated Power	30 W
Rated Voltage	25.2 V
Charger
Model	ZD012M300065BS
Input	100-240 V 50/60 Hz 0.5 A
Output	30 V0.65 A
Average Active Efficiency	85.36%
Efficiency at Low Load (10%)	75.35%
No-load Power Consumption	0.1 W
Rechargeable Lithium-Ion Battery Pack
Model	V2315-7S1P-SCA
Nominal Voltage	25.2 V
Nominal Capacity	2000 mAh
Rated Capacity	1800 mAh
Energy	45.36 Wh

FAQ

If the vacuum is not working properly, please refer to the table below.

• The lithium-ion battery pack contains substances that are hazardous to the environment. Before disposing of the vacuum, please remove the battery pack, then discard or recycle it in accordance with local laws and regulations of the country or region it is used in.
• The appliance must be disconnected from the power supply when removing the battery. Keep batteries out of the reach of children. Never put batteries in mouth. If swallowed, contact your physician or local poison control.
• Under abusive conditions, never contact the battery from which the liquid may be ejected. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical help immediately. Liquid ejected from the battery may cause irritation or burns.
