Dreame L10s Ultra (RLS6LADC) - Robotic Cleaner Manual

Product Overview

Package Contents

Other Accessories

Device

Note: Press any button to pause while the robot is cleaning or returning to charge.

Unit and Sensors

Dust Bin

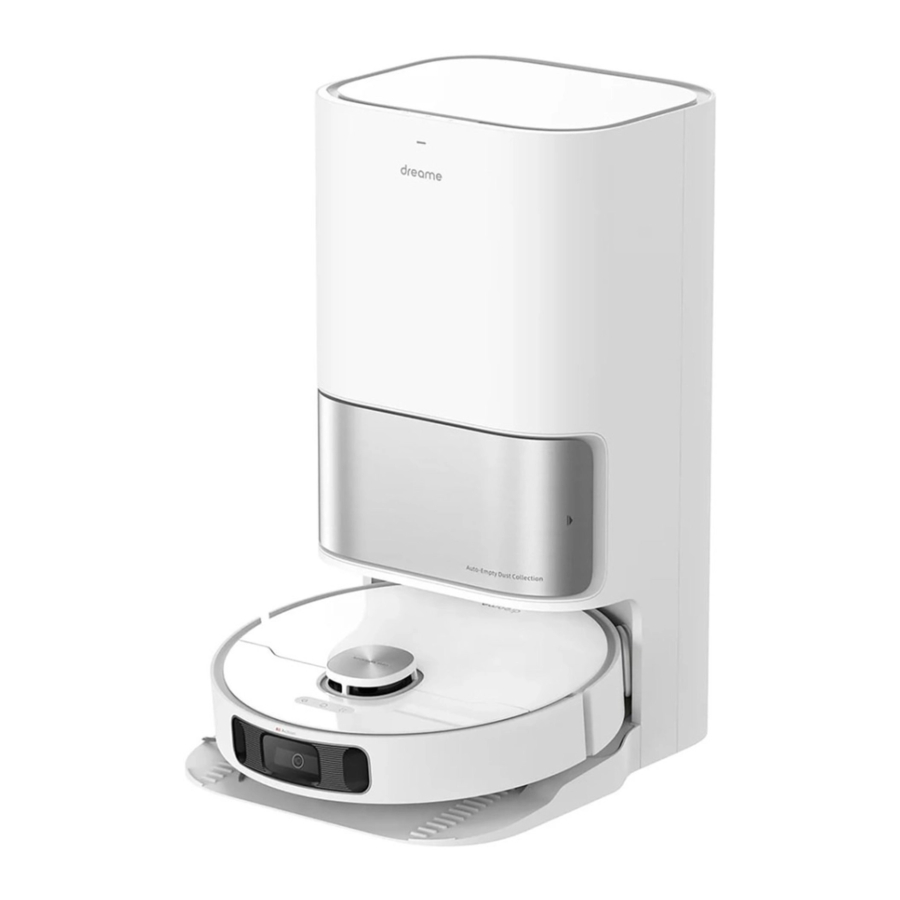

Base Station

Base Station Buttons

- Leave Button Briefly press to make the robot leave the base station.
- Clean Button Briefly press to make the robot clean all areas.
- Dry Button Briefly press to make the base station start or stop drying the mop pads.

Child Lock

Press and hold the and button for 3 seconds to activate or deactivate Child Lock. After Child Lock is activated, all buttons on the robot and the base station are locked.

Mop Assembly

Preparing Your Home

Tidy up items such as power cords, cloths, slippers, and toys to improve the efficiency of the robot.

Before cleaning, place a physical barrier at the edge of the stairs and sofa to ensure the secure and smooth operations of the robot.

Open the door of the room to be cleaned, and put the furniture in its proper place to leave more space.

With the AI visual sensors, the robot can better recognize and avoid obstacles such as power cords, shoes, and socks, to get the most out of the AI visual sensor, make sure that all areas to be cleaned are well-lit.

Note:

• When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time.
• To prevent the robot not recognizing areas that need to be cleaned, do not stand in front of the robot, threshold, hallway, or narrow places.

Before Use

Remove the protective strips

Install the Side Brush and the Mop Assembly

Note: Install the side brush until it clicks into place.

Connect to An Electrical Outlet

Please the base station in a location that is as open as possible with a good Wi-Fi signal. Insert the power cord into the base station and plug it into the socket.

Place the Base Station

Remove any objects that are closer than 1.5m from the front, 1m from the top, and 0.5m from either side of the base station.

Note:

• Make sure that no objects might block the signalling area.
• To prevent water stains from wetting wood floors or carpets, placing the base station on tile floors or marble floors is recommended.

Place the Unit

Press and hold the button on the robot for 3 seconds to turn it on. Place the robot onto the base station with the mop assembly facing toward the washboard. Then you will hear a voice notification when the robot successfully connects to the base station and starts charging. After the robot is fully charged, the status indicators on the robot and the base station will remain lit for 10 minutes and will then dim.

Note: It is recommended to fully charge the robot before its first use. When the robot cannot be turned on after the battery is depleted, manually connect the robot with the station to charge it.

Install the Cleaner Bottle

Remove the cap of the cleaner bottle, and tear off the seals on the upper and bottom of the bottle. Open the upper cover of the base station and take out the clean water and the used water tank. Install the cleaner bottle along the slot into place. The cleaner will be added automatically while working.

Note:

• Remove the soft rubber plug in the cleaner adding inlet before first use.
• Do not add any liquid other than the officially approved cleaner to help prevent base station malfunction.

Add Water to the Clean Water Tank

Fill the clean water tank with clean water up to the maximum water level mark, and then install the clean water tank and used water tank in place.

Note: Do not add hot water to the water tank, as this may cause the tank to become deformed.

Connect with Dreamehome or Mi Home/Xiaomi Home App

This product works with the Dreamehome or Mi Home/Xiaomi Home app, which can be used to control your device.

Download the Dreamehome or Mi Home/Xiaomi Home App

Scan the QR code on the robot, or search "Dreamehome" or "Mi Home" / "Xiaomi Home" in the app store to download and install the app based on your needs.

Dreamehome

Mi Home/Xiaomi Home

Note:

• Only 2.4GHz Wi-Fi networks are supported.
• Due to upgrades in the app software, the actual operation may be different from the statements in this manual. Please follow the instructions based on the current app version.

Add Device

Dreamehome APP: Open the Dreamehome app, enter the "Add Device" page, and then select "DreameBot L10s Ultra". Please follow the prompts to finish the Wi-Fi connection.
Mi Home/Xiomi Home APP: Open the Mi Home/Xiaomi Home app, tap " " in the upper right, and scan the QR code above again to add "DreameBot L10s Ultra". Please follow the prompts to finish the Wi-Fi connection.
Once the Wi-Fi indicator is blinking slowly, the Wi-Fi has been reset.

Wi-Fi Indicator

• Blinking slowly: To be connected
• Blinking quickly: Connecting
• On: Connected

Note: If you want to reset Wi-Fi, follow step 1 and 2. Open the Dreamehome App or Mi/Xiomi Home App, enter the "Add Device" page, then follow the prompts to finish the Wi-Fi connection.

How to Use

Fast Mapping

After configuring the network for the first time, follow the instructions on the app to quickly create a map, and the robot will start mapping without cleaning. The mapping process will be completed when the robot returns to the station, and the map will be saved automatically.

Turn On/Off

Press and hold the button for 3 seconds to turn on the robot. The power indicator should be illuminated. Place the robot onto the base, the robot should turn on automatically and begin charging. To turn off the robot, move the robot away from the base and press and hold the button for 3 seconds.

Pause/Sleep

When the robot is running, press any button to pause it. If the robot is paused for more than 10 minutes, it automatically enters sleep mode. The power indicator and charging indicator will turn off. Press any button on the robot or base or use the app to wake up the robot.

Note:

• The robot will turn off automatically if it is left in the sleep mode for more than 12 hours.
• If the robot is paused and placed onto the base station, the current cleaning process will end.

Do Not Disturb Mode

When the robot is set to the Do Not Disturb (DND) mode, the robot will be prevented from resuming cleaning and the power indicator goes out. The DND mode is disabled by default at the factory. You can use the app to enable the DND mode or modify the DND period. The DND period is 22:00-8:00 by default.

Note:

• The scheduled cleaning tasks will be performed on time during the DND period.
• The robot will resume clean-up where it left off after the DND period expires.

Spot Cleaning

When the robot is on standby, briefly press the button to enable the spot cleaning mode. In this mode, the robot cleans a square-shaped area of 1.5 x 1.5 meters around it and returns to its starting point once the spot cleaning is completed.

Unit Restarting

If the robot stops responding or cannot be turned off, press, and hold the button for 10 seconds to forcefully turn it off. Then, press and hold the button for 3 seconds to turn the robot on.

Sweeping & Mopping

Note: When using the mop assembly for the first time, the robot performs the sweeping and mopping task by default.

Start sweeping and mopping

Press on the base station or on the robot, or use the app to make the robot start from the base station. Then the robot will plan the optimal cleaning route and perform the cleaning task based on the created map.

Note:

• The mop pads will be cleaned before the robot start mopping, please wait with patience.
• Do not move the base station, the clean water tank, the used water tank, or the washboard during its working.

Return to clean mop pads midway

During mopping, the robot will automatically return to the base station to wash mop pads based on the mop pad cleaning frequency specified on the app. Then the base station will automatically refill the water tank of the robot, and the robot will resume the clean-up after water refilling.

Note: If the robot returns to the base station to clean mop pads midway, the base station will automatically empty the dust bin.

Clean and dry mop pads after dust emptying

After the robot finishes a cleaning task and returns to the base station to charge, the base station will automatically start emptying the dust bin, and then clean and dry the mop pads.

Note:

• When the robot returns midway to the base station to clean mop pads, the base station will not automatically empty the dust bin.
• If the auto-empty function is turned off in the app, the base station will not automatically empty the dust bin.
• The base station will empty the dust bin according to the frequency set in the app.

Clean the used water tank

After the robot has completed the task, please clean the used water tank to avoid any odor.

Sweeping

To use only the sweeping function, select "Sweeping" on the app, or remove the mop assembly from the robot and the robot will automatically switch the sweeping mode.

Note: If the mop assembly is not removed from the robot, you can select the sweeping mode on the app, and the robot will automatically lift the mop assembly before sweeping.
Make sure that the base station is connected to power and the robot is connected with the base station. Press the button on the base station or the button on the robot, or use the app to send the robot to clean all areas from the base station.

Note: To ensure the robot can easily return to the base station after cleaning, it is recommended to make the robot start from the base station and avoid moving the base station during cleaning.

Routine Maintenance

Parts

To keep the robot in good condition, it is recommended to refer to the following table for routine maintenance.

Part	Maintenance Frequency	Replacement Period
Used water tank	After each use	/
Clean water tank	Once every 2 weeks
Main Brush		Every 6 to 12 months
Dust Bin filter		Every 3 to 6 months
Side brush
Washboard	Once every month	/
Base station's signalling area
Base station's charging contacts
Base station's auto-empty vent
Universal wheel
Edge sensor
Laser Distance Sensor
Line laser sensor
AI Visaul Sensor	Once every month	/
Carpet Sensor
Cliff Sensors
Charging Contacts on Robot
Bumper
Robot's automatic water refilling inlet
Bottom of the robot
Cleaner Adding Inlet	Recommended to clean after removing the cleaner (bottle)
Dust bin	Clean it as needed
Dust collection bag	/	6-8 weeks
Mop pad		Every 1 to 3 months

Note: The replacement frequency will depend on your usage of the robot. If an exception occurs due to special circumstance, the parts should be replaced.

Dust Collection Bag

When the dust collection bag needs to be replaced, a notification will appear in the app.

1. Discard the dust collection bag.
   Note: Pulling upwards on the handle will seal the bag to prevent the dust and debris from accidentally falling out.

2. Remove the dust and debris from the filter with a dry cloth.

3. Install a new dust collection bag.

4. Close the cover of the dust cabinet.


Used Water Tank

1. Remove the used water tank, open its cover and port out the dirty water.

2. Rinse the used water tank with clean water and use the provided cleaning brush to clean the inner wall of the used water tank.


Note: The float ball in the used water tank is a movable part. Do not apply too much force when cleaning it to avoid damaging it.

Main Brush

1. Press the brush guard clips inwards to remove the brush guard and lift the brush out of the robot.

2. Pull out the brush covers as shown in the diagram. Use the provided cleaning tool to remove the hair tangled in the brush.


Side Brush

Remove and clean the side brush.

Universal Wheel

Note:

• Use a tool such as small screwdriver to separate the axle and tire of the universal wheel. Do not use excessive force.
• Rinse the universal wheel under the running water and put it back after drying it completely.

Dust Bin

1. Open the robot cover and press the bin clip to remove the dust bin.

2. Open the bin cover and empty the bin as shown in the diagram.


Filter

1. Remove the filter and tap its basket gently.
   Note: Do not attempt to clean the filter with a brush, a finger, or sharp objects to prevent damage.

2. Rinse the dust bin and filter with water and dry them completely before reinstalling.


Note:

• Rinse the dust bin and filter with clean water only. Do not use any detergent.
• Use the dust bin and filter only when they are completely dry.

Unit Sensors and Charging Contacts

Wipe sensors and charging contacts of the robot by using a soft, dry cloth:

• The cliff sensors and the carpet sensor on the bottom of the robot
• Charging contacts at the back of the robot
• The edge sensor on the side of the robot
• LDS on the top of the robot
• The bumper, the AI visual sensor, and the line laser sensors on the front of the robot

Note: Wet cloth can damage sensitive elements within the robot and the base station. Please use dry cloth for cleaning.

Charging Contacts

Clean the charging contacts and the signalling area of the base station with a soft, dry cloth.

Auto-empty Vents

Clean the auto-empty vents of the robot and the base station with a soft, dry cloth.

Mop Pad

Remove the mop pad from the mop pad holder to replace it.

Cleaner Adding Inlet

If the cleaner adding inlet is dirty, wipe it with a soft, dry cloth.

Battery

The robot contains a high-performance lithium-ion battery pack. Make sure that the battery remains well-charged for daily use to maintain optimal battery performance. If the robot is not used for an extended period of time, turn it off and put it away. To prevent damages from over-discharging, charge the robot at least once every three months.

FAQ

Problem	Solution
The robot will not turn on	The battery is low. Recharge the robot on the base and try again. The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature between 32°F (0°C) and 104°F (40°C).
The robot will not charge	The base station is not connected to power, please make sure both ends of its power cord are correctly plugged in. The contact between the charging contacts on the base and the robot is poor, please clean the charging contacts. Check whether there is any foreign objects at the connector of the robot and remove the foreign object if any.
The robot fails to connect to Wi-Fi	The Wi-Fi network is incorrect. Make sure the password used to connect to your Wi-Fi network is correct. The robot does not support 5 GHz Wi-Fi connection. Make sure the robot is connected to a 2.4 GHz Wi-Fi connection. The Wi-Fi signal is weak. Make sure the robot is an area with good Wi-Fi coverage. The robot may not be ready to be configured. Please exit and reenter the app, and then try again as instructed.
The robot cannot find and return to the base station	The base station is disconnected from power or moved when the robot is not on it. There are too many obstructions around the base station. Place the base station in a more open area. Moving the robot may cause it to re-position itself, and it will recreate a map if re-positioning fails. If the robot is too far from the base station, it might not be able to automatically return on its own, in which case you will need to manually place the robot onto the base station.
The robot gets stuck in front of the base station and cannot return to it	Wipe the signalling area on the base station to remove dust or debris.
The robot will not turn off.	The robot cannot be turned off when it is charging. It is recommended to move the robot from the base station, and then press and hold the power button for three seconds to turn it off. If the robot cannot be turned off by performing step 1, press and hold the button for 10 seconds to forcibly turn off the robot. If the problem persists, please contact after-sales service.
The charging speed is low.	It takes about 6 hours to fully charge the robot when its battery is low. If you operate the robot at temperatures outside of the specifies range, the charging speed will automatically slow down to extend the battery life. The charging contacts on both of the robot and the base may be dirty, please wipe them with a dry cloth.
The noise increase while the robot is operating.	Check whether the dust bin is clogged. If so, clean it or replace it. A hard object may be caught in the main brush or the dust bin. Check and remove any hard objects. The main brush or the side brush may become tangled. Check and remove any foreign objects. Switch the suction mode to Standard or Quiet.
The robot moves without following the set route.	Objects such as power cords and slippers should be organized before using the robot. Working on wet slippery surfaces causes the main wheel to slip. It is recommended to dry the wet places before using the robot. Wipe the line laser sensors and the AI visual sensor on the robot with a clean, soft cloth to keep them clean and unobstructed.
The robot misses the rooms to be cleaned.	Make sure that the doors of the rooms to be cleaned are open. Check whether there is a threshold higher than 2 cm at the door of the room. The robot cannot climb over hight thresholds or steps. The place in front of the room to be cleaned is wet and slippery, causing the robot to slip and work abnormally. It is recommended to dry the floor before using the robot.
The robot will not resume cleaning after charging	Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will prevent it from resuming cleaning. The robot will not resume cleaning after you manually return the robot to the base station to charge, which includes manually placing the robot on the base station or sending the robot to charge via the app or the robot itself.
The robot does not respond while pressing the button on the base station.	The robot may be out of the base station's wireless range. Manually return the robot to the base station or use the app to return it.
The station cannot automatically empty the dust bin.	Check whether the dust collection bag in the dust cabinet is full. If the dust collection bag is not full, check whether there is any obstructions at the auto-empty vents of the robot, the base station, or the dust bin. If any, clean the blocked part in time.
The water level in the washboard is abnormal.	Remove the washboard and check whether the sewage drain is blocked and clean it. Gently press down on the used water tank to make sure it is installed correctly. Check whether the seal on the used water tank is loose or not correctly installed, and manually reset it if so. If the problem persists, please contact the after-sales service team. Check the cleaner. Do not add any liquid other than the officially approved cleaner.

Specifications

Robot
Model	RLS6LADC
Charging Time	Approx. 6 hours
Rated Voltage	14.4 V
Rated Power	75W
Operation Frequency	2400-2483.5 MHz
Maximum Output Power	<20 dBm
Base Station
Model	RCS9
Rated Input	220-240 V ~ 50-60 Hz
Rated Output	20V 2A
Power (during dust emptying)	1000 W
Power (during cleaning)	55 W
Power (drying and charging)	78 W

Under normal use of condition, this equipment should be kept a separation distance of at least 20 cm between the antenna and the body of the user.

Safety Information

To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual carefully before using the appliance and keep it for future reference.

Usage Restrictions

• This product should not be used by children younger than 8 years old nor persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge without the supervision of a parent or guardian to ensure safe operation and to avoid any risks. Cleaning and maintenance shall not be performed by children without supervision.
• The appliance is only to be used with power supply unit provided with the appliance.
• This appliance contains batteries that are only replaceable by skilled persons.
• Clear the area to be cleaned. Children shall not play with the appliance. Ensure children and pets are kept at a safe distance from the robot while it is operating.
• Do not install, charge, or use the appliance in the bathrooms or around the pools.
• This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting.
• Ensure that the appliance operates correctly in a proper environment. Otherwise, do not use the appliance.
• If the power cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• Do not use the robot in an area suspended above ground level without a protective barrier.
• Do not place the robot upside down. Do not use the LDS cover, robot cover, or bumper as a handle for the robot.
• Do not use the robot at an ambient temperature above 40°C or below 0°C or on a floor with liquids or sticky substances.
• To prevent damage or harm from dragging, clear any loose objects from the floor, and remove cables or power cords on the cleaning path before operating the appliance.
• Remove fragile or small items from the floor to prevent the robot from bumping into and damaging them.
• Keep hair the cleaning tool out of reach of children.
• Do not operate the appliance in a room where an infant or child is sleeping.
• Do not place children, pets, or any item on top of the robot regardless of whether it is stationary or moving.
• Keep the cleaner out of reach of children.
• Use only the officially approved detergent. Do not add any liquid such as alcohol or disinfectant.
• Do not use the robot to clean any burning objects. Do not use the robot to pick up flammable or combustible liquids, corrosive gases, or undiluted acids or solvents.
• Do not vacuum hard or sharp objects. Do not use the appliance to pick up objects such as stones, large pieces or paper or any item that may clog the appliance.
• Plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
• Do not wipe the robot or the base station with a wet cloth or rinse them with any liquid. After cleaning washable parts, fully dry the parts before reinstalling and using them.
• Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage that arise from improper use of this product.

Batteries and Charging

• Do not use any third-party battery or base station. The robot can only be used with the model RCS9 base station.
• Do not attempt to disassemble, repair, or modify the battery or the base station on your own.
• Do not place the base station near a heat source.
• Do not use a wet cloth or wet hands to wipe or clean the base station's charging contacts.
• Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an appropriate recycling facility.
• If the power cord become damaged or broken, stop using it immediately and contact after-sales service.
• Make sure the robot is turned off when being transported and kept in its original packaging if possible.
• If the robot will not be used for an extended period of time, filly charge it, then turn it off and store it in a cool, dry place. Recharge the robot at least once every 3 months to avoid over-discharging the battery.
• The lithium-ion battery pack contains substances that are hazardous to the environment. Before disposing of the robot vacuum, please first remove the battery pack, then discard, or recycle it in accordance with local laws and regulations of the country or region it is used in.
• When removing the batteries from the product, it is better to use up the batteries and make sure your product is disconnected from power.

1. Uninstall the screw on the bottom, then remove the cover.
2. Unplug the battery connector, then remove the batteries. Do not damage the battery case to avoid any risk of injuries.
3. Return the batteries to a professional recycling organization,

Laser Safety Information
The laser distance complies with the IEC 60825-1:2014 standard for Class 1 laser products and does not generate dangerous laser radiation.

If you have any questions or comments about the device, please contact the customer line.
www.alza.co.uk/kontakt
+44 (0)203 514 4411
Importer: Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

Documents / Resources

References

• Alza | Alza.co.uk

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Dreame L10s Ultra (RLS6LADC) - Robotic Cleaner Manual
