Dreame Z10 Pro RLSD5 Manual

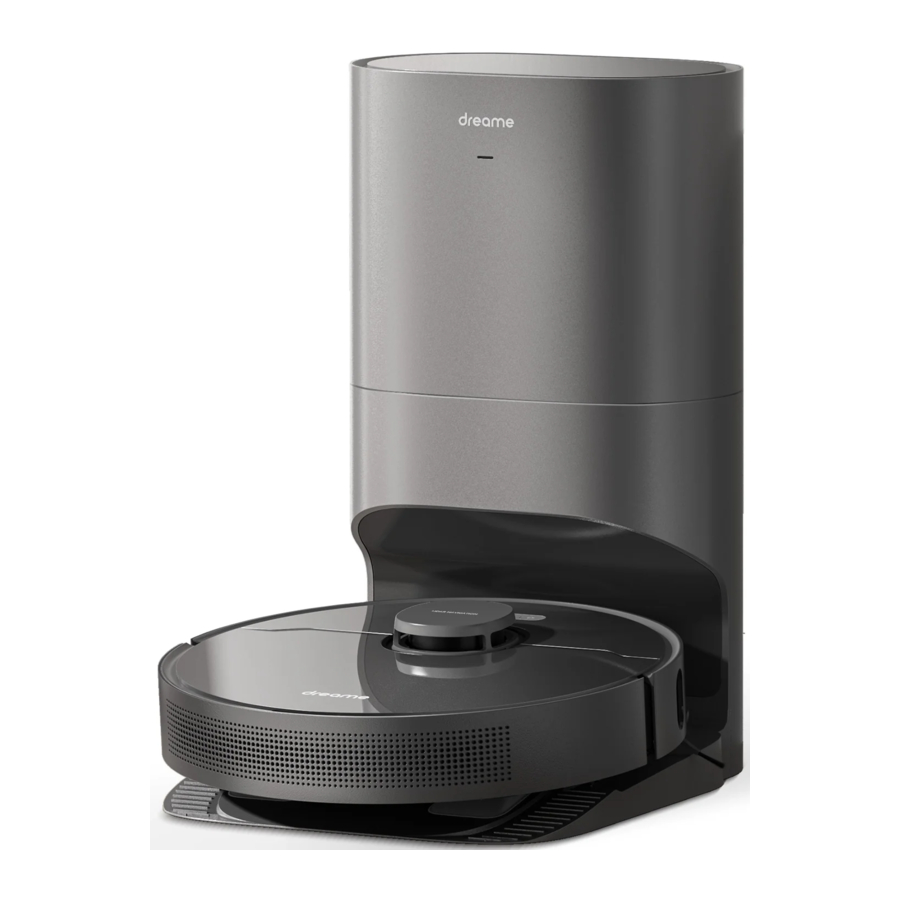

Product Overview

Accessories

Note: The illustrations in this manual are for reference only. Please refer to the actual product.

Robot

Robot Sensors

Auto-Empty Base

Dust Bin

Note: Due to the factory setting, a new dust collection bag has been installed inside already.

Mopping Module

Clearing Home Environment

To improve the working efficiency of your robot, put away any loose cords, rags, slippers, toys, etc.

Open the door of the room to be cleaned, and put the furniture in its proper place to make more space.

Before cleaning, place a physical barrier at the edge of the stairs and sofa to ensure safe and smooth operation of the robot.

To prevent the robot from not recognizing the area that needs to be cleaned, do not stand in the front of the robot, threshold, hallway, or narrow places.

Preparation Before Use

1. Remove the protective matter

2. Install the side brush

   Note: Install the side brush until it clicks into place.
3. Connect to a power outlet and start charging
   Place the base on level ground against the wall and connect it to a power outlet. Place the robot onto the base to charge. The robot will turn on automatically and begin charging. It is recommended to fully charge your robot before first-time use.

   Note:
   • Keep the immediate area 1.5m in front of the base and 0.5m to its both sides clear of objects.
   • Make sure that no objects might block the signaling area.

About the Auto-Empty Base
It is recommended that the robot set out from the base before cleaning. This ensures that the robot returns to base smoothly. Do not move the base while the robot is cleaning.
After the robot completes the cleaning task and automatically returns to the base, the base will start auto-empty. More settings can be operated on the APP.

Connecting with Mi Home/Xiaomi Home App

This product works with the Mi Home/Xiaomi Home app.* Use the Mi Home/Xiaomi Home app to control your device and interact with other smart devices.

1. Download the Mi Home/Xiaomi Home App
   Scan the QR code to download and install the app. You will be directed to the connection setup page if the app has been installed already. Alternatively, search "Mi Home/Xiaomi Home" in the app store to download and install it.

2. Add Device
   Open the Mi Home/Xiaomi Home app, and tap "" in the upper right. Then tap "" in the top right corner, scan the QR code, add "Dreame Bot Z10 Pro", and follow the prompts to finish the connection.

   Note:
   • Only 2.4GHz Wi-Fi is supported.
   • The version of the app might have been updated, please follow the instructions based on the latest app version.
3. Reset Wi-Fi
   Simultaneously press and hold the buttons and until you hear a voice say, "Waiting for the network configuration." Once the Wi-Fi indicator is blinking slowly, the Wi-Fi has been successfully reset.

   Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and add the device again.

How to Use

1. Turn On/Off
   Press and hold the button for 3 seconds to turn on the robot. Once the power indicator turns solid white, the robot is on standby. To turn off the robot, press and hold the button for 3 seconds when the robot is not moving.
2. Start Cleaning
   Press the button briefly to turn on the robot. Upon activation, the robot will accurately map out a route, methodically clean along the edges and walls, then finish by cleaning each room in an S-shaped pattern to ensure a thorough job.

3. Cleaning Mode
   Dreame Bot Z10 Pro has four cleaning modes: Quiet, Standard, Strong, and Turbo. The default mode is Standard. You can specify the cleaning mode in the Mi Home/Xiaomi Home app.
4. Pause/Sleep Mode
   Pause: Press any button briefly to pause the robot during cleaning.
   Sleep Mode: The robot will automatically enter Sleep Mode after 10 minutes of inactivity, then the power indicator and charging indicator will go off. To wake up the robot, press any button.
   Note:
   • The robot will turn off automatically if left in Sleep Mode for more than 12 hours.
   • When the robot is paused, placing it onto the base will end the current cleaning task.
5. Spot Clean Mode
   When the robot is paused or in Standby Mode, press and hold the button for 3 seconds to start Spot Clean Mode. In this mode, it will clean a square-shaped area of 1.5×1.5 meters directly around the robot. When the spot cleaning is done, the robot will automatically return to its original location and power off.
   Note: Activating Spot Clean Mode will end the current cleaning task of the robot.
6. Additional App Functions
   You can enable more functions via Mi Home/Xiaomi Home app such as selected room cleaning, zone cleaning, forbidden area/virtual no-go zones, etc.
   Note:
   • Follow the instructions on the app interface to use more functions.
   • The version of the app might have been updated; please follow the instructions based in the current app version.
7. Use the Mopping Function
   It is recommended that all floors are vacuumed at least three times before the first mopping session to achieve a better cleaning effect.
   1. Dampen the mop pad and wring out excess water. Paste the mop pad on the attaching area of the water tank, and fix the pad on the water tank with fixing straps.

   2. Open the water tank lid, fill the tank with water, then securely close the lid.

      Note: Do not use detergent or disinfectant.
   3. Align the mopping module as indicated by the arrow, then slide it into the back of the robot until it clicks into place. Press the button or use the Mi Home/Xiaomi Home app to start cleaning.

      Note:
      • It is not recommended to use the mopping function on carpets.
      • Use the app to adjust the water flow as required.
   4. Press the two side clips inwards and slide the water tank backwards to separate it from the robot.

      Note: When the robot is charging or not in use, remove the mopping module, pour out all the remaining water in the tank, and clean the mop pad to prevent mildew or odors.

Routine Maintenance

Clean the Dust Bin

1. Open the robot cover, then press the dust bin clip to remove the dust bin.

2. Open the bin cover and empty the bin as shown in the diagram.

3. Remove the filter and tap its basket gently.

   Note: Do not attempt to clean the filter with a brush or finger.
4. Clean the dust intake.

5. Rinse the dust bin and filter with water until they are clean. Thoroughly dry the filter before reinstalling.

   Note:
   • Rinse the filter with clean water only. Do not use detergent.
   • Before using, keep it in a well-ventilated or cool place.

Clean the Mopping Module

1. Press the two release clips on the side of the water tank, remove the mopping module, and pull the mop pad off the mopping module.

2. Pour out the water in the tank. Clean with only water and leave out to air dry before re-installing.

   Note: Do not expose the tank to the sun directly.
3. Clean the mop pad with water only and leave to air dry before re-installing.

   Note:
   • Remove the pad from the mopping module before cleaning it, and make sure dirty water does not flow back into the water outlet to avoid clogging.
   • For optimal performance, it is recommended to replace the mop pad every 3-6 months.
4. If slow water flow occurs, or the volume is not well-distributed, clean the air hole in the cover of the water tank.


Clean the Main Brush
Press the brush guard clips inwards to remove the brush guard and lift the brush out of the robot.

Pull out the brush covers as shown in the diagram. Use the included cleaning tool to remove any hairs tangled in the brush.

Note: When there is hair tightly tangled in the main brush, do not pull out the hair excessively to avoid damaging the main brush.

Clean the Side Brush
Pull out the side brushes and use the cleaning tool to remove any hair tangled on the brush.

Clean the Main Wheel/Omnidirectional Wheel

Note: Use a tool such as a small screwdriver to separate axle and tire.
Note: Wet cloths can damage sensitive elements within the robot and base. Please use dry rags for cleaning.

Clean the LDS Laser Sensor/Edge Sensor

Clean the Cliff Sensor

Clean the High Precision 3D

Clean the Charging Contact

Clean the Charging Contacts and Dust Intake

Replace the Dust Collection Bag
According to the status indicator (blinking orange) and app prompts, replace it with a new one when the dust collection bag is full. It is recommended to replace the bag every 6-8 weeks.

1. Discard the dust collection bag

   Note: When taking out the dust collection bag, close the dust bag handle to avoid dust leaking out.
2. Clean the filter

   Note:
   • Install the filter in place after cleaning to prevent dust from falling into the air duct.
   • Rinse the filter with water until it is clean. Thoroughly dry the filter before re-installing.
3. Install a new dust collection bag

4. Close the upper cover of auto-empty base

   Note: Do not close the base forcelly, if the upper cover of base cannot be closed and the dust collection bag is not installed.

Clean the Air Duct
If the air duct is blocked, please clean it according to the following steps.

1. Unscrew mounting screws on the air duct cover and remove the cover plate.

2. Check whether the air duct is blocked by foreign objects. If any, clean them.

3. Reinstall the air duct cover as shown in the diagram.


Robot Restarting
If the robot stops responding or cannot be turned off, press and hold down the button for 10 seconds to forcefully turn it off. Then press and hold the button for 3 seconds to turn the robot on.

Battery
The robot contains a high-performance lithium-ion battery pack. Please ensure that it remains well-charged for daily use to maintain optimal battery performance. If the robot is not used for an extended period of time, turn it off and put it away. To prevent damage from over-discharging, the robot should be recharged at least once every three months.

Status Indicator

The following table lists possible causes and solutions in terms of different light status. For more support, please refer to the section "FAQ" in this manual.

FAQ

Specifications

Robot

Model	RLSD5
Battery	5200mAh (Battery Nominal Capacity)
Wireless Connectivity	Wi-Fi IEEE 802.11b/g/n 2.4 GHz
Charging Time	Approx. 6 hours
Rated Voltage	14.4 V
Rated Power	46 W
Operation Frequency	2400-2483.5 MHz
Maximum Output Power

Auto-Empty Base

Model	RCS2
Rated Input	220-240 V~ 50-60 Hz
Rated Output	19.8 V 1 A
Rated Power	600 W

Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

Safety Information

Usage Restrictions
This product can be used by children aged 8 years and above and persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge under the supervision of a parent or guardian to ensure safe operation and to avoid any risks. Cleaning and maintenance shall not be done by children without supervision.
Children shall not play with this product. Ensure children and pets are kept at a safe distance from the robot while it is operating.
This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting.
Do not use the robot in an area suspended above ground level without a protective barrier.
Do not use the robot at an ambient temperature above 40°C or below 0°C or on a floor with liquids or sticky substances.
Pick up any cables from the floor before using the robot to prevent it from dragging them while cleaning.
Remove fragile or small items from the floor to prevent the robot from bumping into and damaging them.
Keep hair, fingers, and other body parts away from the suction opening of the robot.
Keep the brush cleaning tool out of reach of children.
Do not place children, pets, or any item on top of the robot regardless of whether it is stationary or moving.
Do not use the robot to clean any burning objects.
Do not vacuum hard or sharp objects.
Make sure the robot is turned off and the auto-empty base is unplugged before cleaning or performing maintenance.
Do not wipe any part of the product using a wet cloth or liquids.
Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage that arise from improper use of this product.

Batteries and Charging
Do not use any third-party battery or auto-empty base. Use only with RCS2 supply unit.
Do not attempt to disassemble, repair, or modify the battery or auto-empty base on your own.
Do not place the auto-empty base near a heat source.
Do not use a wet cloth or wet hands to wipe or clean the base's charging contacts.
Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an appropriate recycling facility.
If the power cord becomes damaged or broken, stop using it immediately and contact after-sales service.
Make sure the robot is turned off when being transported and kept in its original packaging if possible.
If the robot will not be used for an extended period, fully charge it, then turn it off and store in a cool, dry place. Recharge the robot at least once every 3 months to avoid over-discharging the battery.
This product contains batteries that can only be replaced by qualified technicians or after-sales service.

For more information, please visit www.dreame-technology.com
Manufactured by: Dreame Trading (Tianjin) Co., Ltd.
