CONTROL PANEL

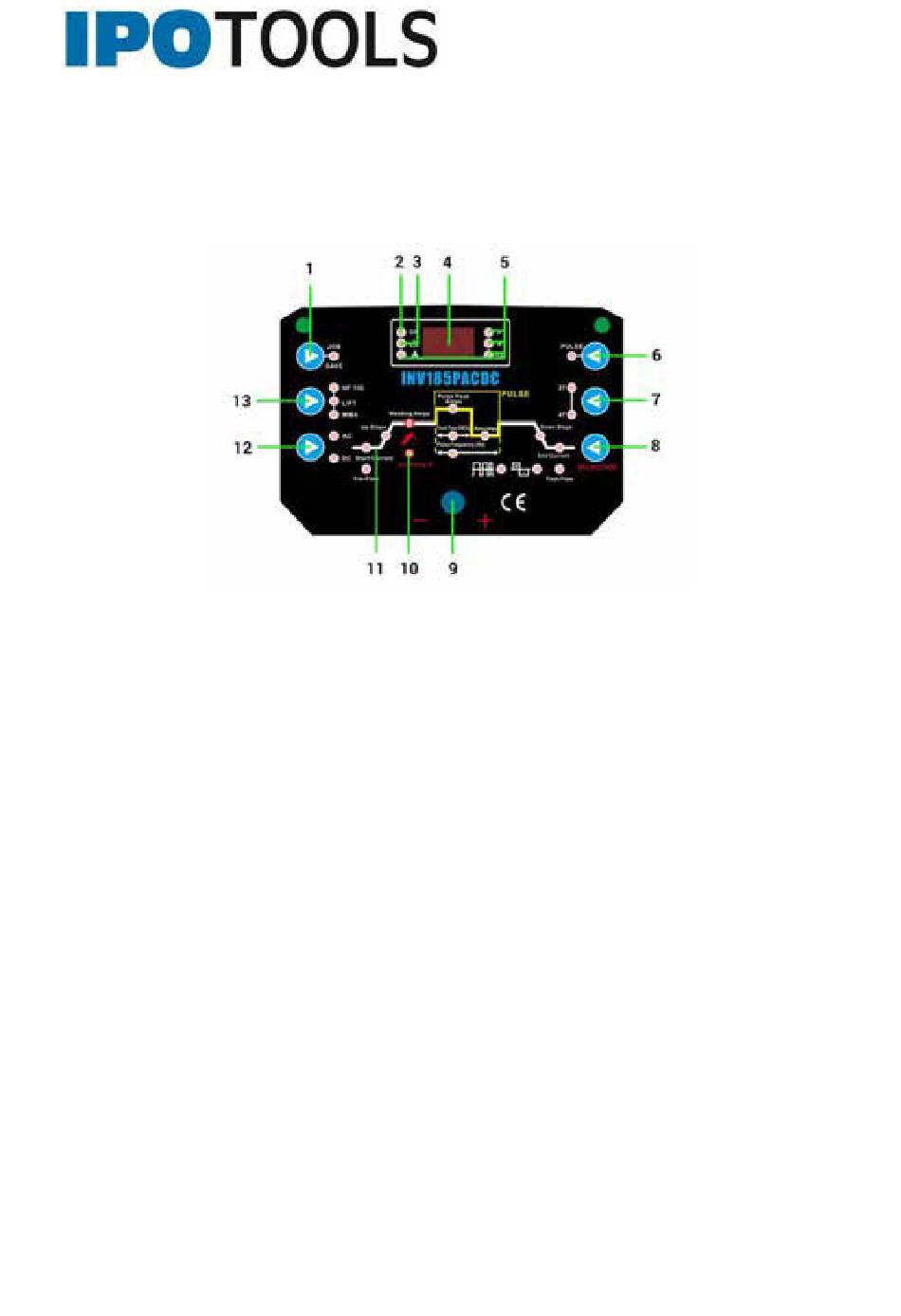

Description of the control panel and the front and back of the appliance:
1. Storage of current welding parameters, display of current memory location *,
2. Light: power indicator,
3. Warning light,
4. Display the value of the currently selected parameter,
5. Display which parameter we are currently setting A - welding current, S - time in
seconds (time of pre-blowing and blowing, and time of rising and falling current), % -
AC cleaning effect or% of welding time of the first or second welding current, Hz - pulse
or AC frequency,
6. Switching pulse mode on and off,
7. Digging between 2T and 4T operation,
8. Selection of parameters from the welding curve,
9. Potentiometer for setting welding parameters,
10. Select "Arc Force%" in MMA mode,
11. Welding curve (pre-draft, initial welding current, initial current rise time, set welding
current, AC frequency, AC cleaning effect, pulse frequency, pulse welding current, %
and wavelength of pulse current, final current drop time, final current, draft),
12. AC / DC selection,
13. Switching between high frequency and respective ignition and switching on MMA
mode.
* Press the button to move between memory locations. To save the setting it is required to
press the blue button of switch 1 and hold it for 4-5 seconds. The device always remembers
the last saved settings at a specific memory location.
