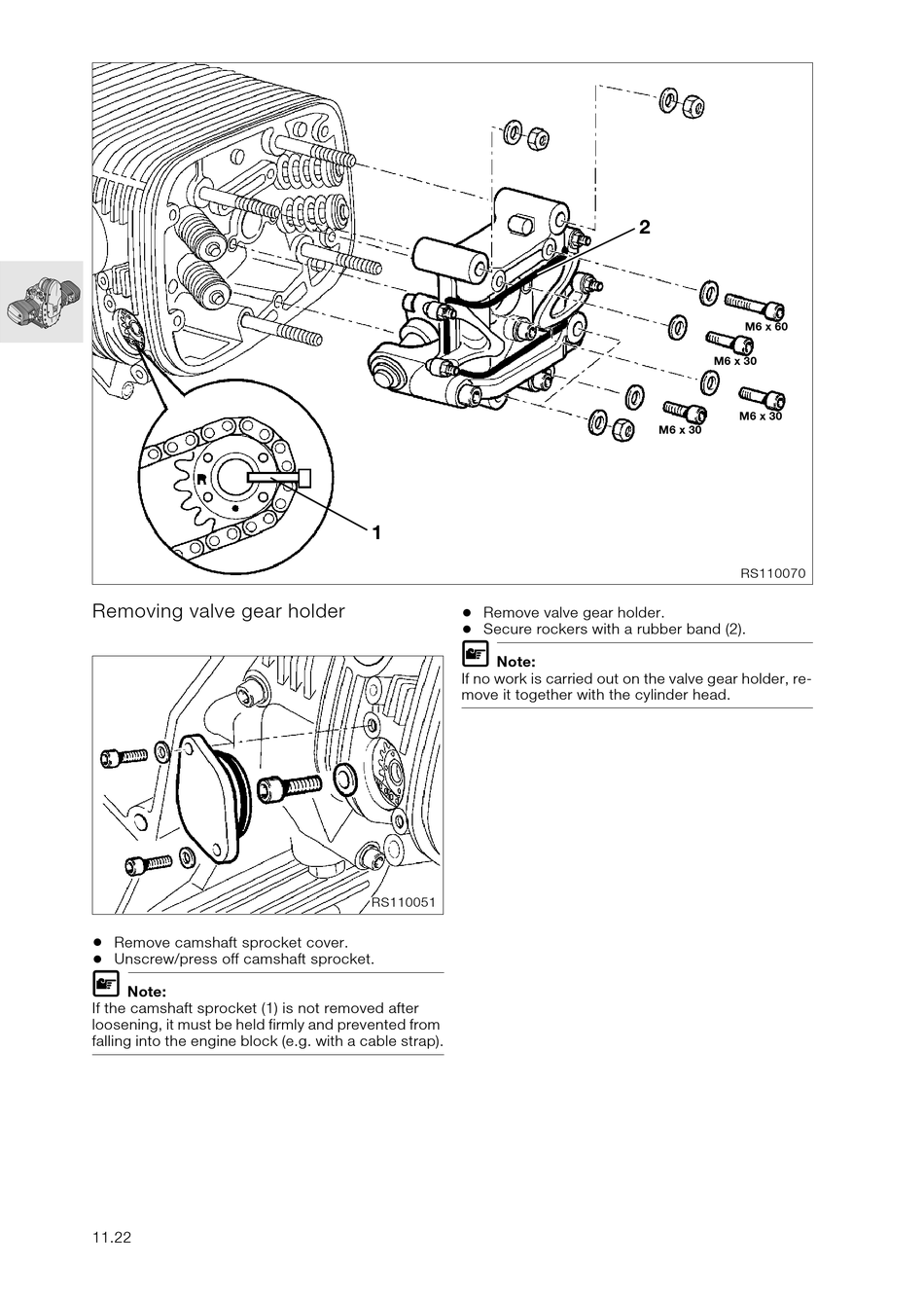

Removing valve gear holder

•
Remove camshaft sprocket cover.
•
Unscrew/press off camshaft sprocket.
L
Note:
If the camshaft sprocket (1) is not removed after
loosening, it must be held firmly and prevented from
falling into the engine block (e.g. with a cable strap).
11.22
1
•
Remove valve gear holder.
•
Secure rockers with a rubber band (2).
L
Note:
If no work is carried out on the valve gear holder, re-
move it together with the cylinder head.
RS110051
2
M6 x 60
M6 x 30
M6 x 30
M6 x 30
RS110070
