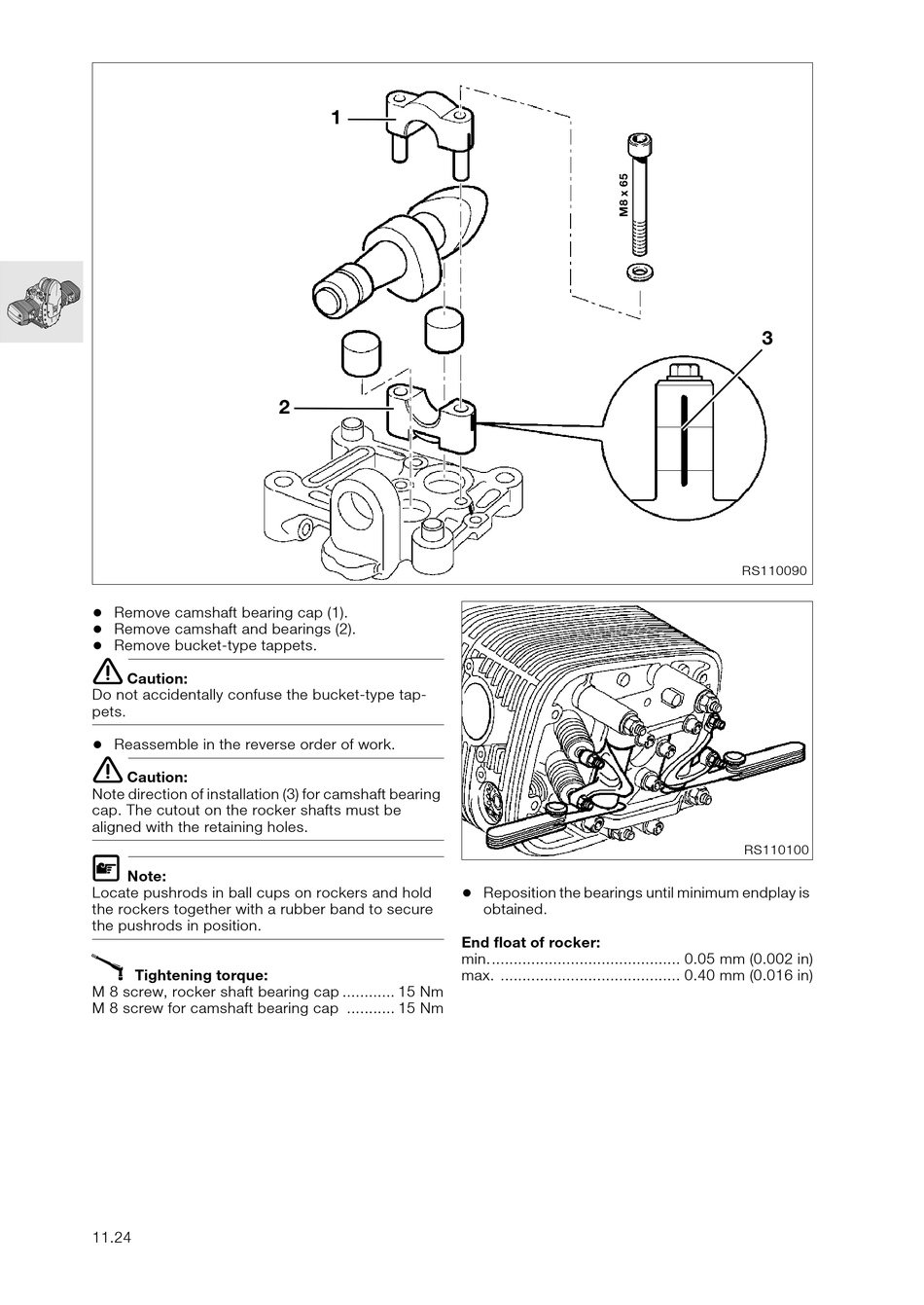

Remove camshaft bearing cap (1).
•
Remove camshaft and bearings (2).
•
Remove bucket-type tappets.
e
Caution:
Do not accidentally confuse the bucket-type tap-
pets.
•
Reassemble in the reverse order of work.
e
Caution:
Note direction of installation (3) for camshaft bearing
cap. The cutout on the rocker shafts must be
aligned with the retaining holes.
L
Note:
Locate pushrods in ball cups on rockers and hold
the rockers together with a rubber band to secure
the pushrods in position.
X
Tightening torque:
M 8 screw, rocker shaft bearing cap ............ 15 Nm
M 8 screw for camshaft bearing cap ........... 15 Nm
11.24
1
2
•
Reposition the bearings until minimum endplay is
obtained.
End float of rocker:
min............................................ 0.05 mm (0.002 in)
max. ......................................... 0.40 mm (0.016 in)
3
RS110090
RS110100
