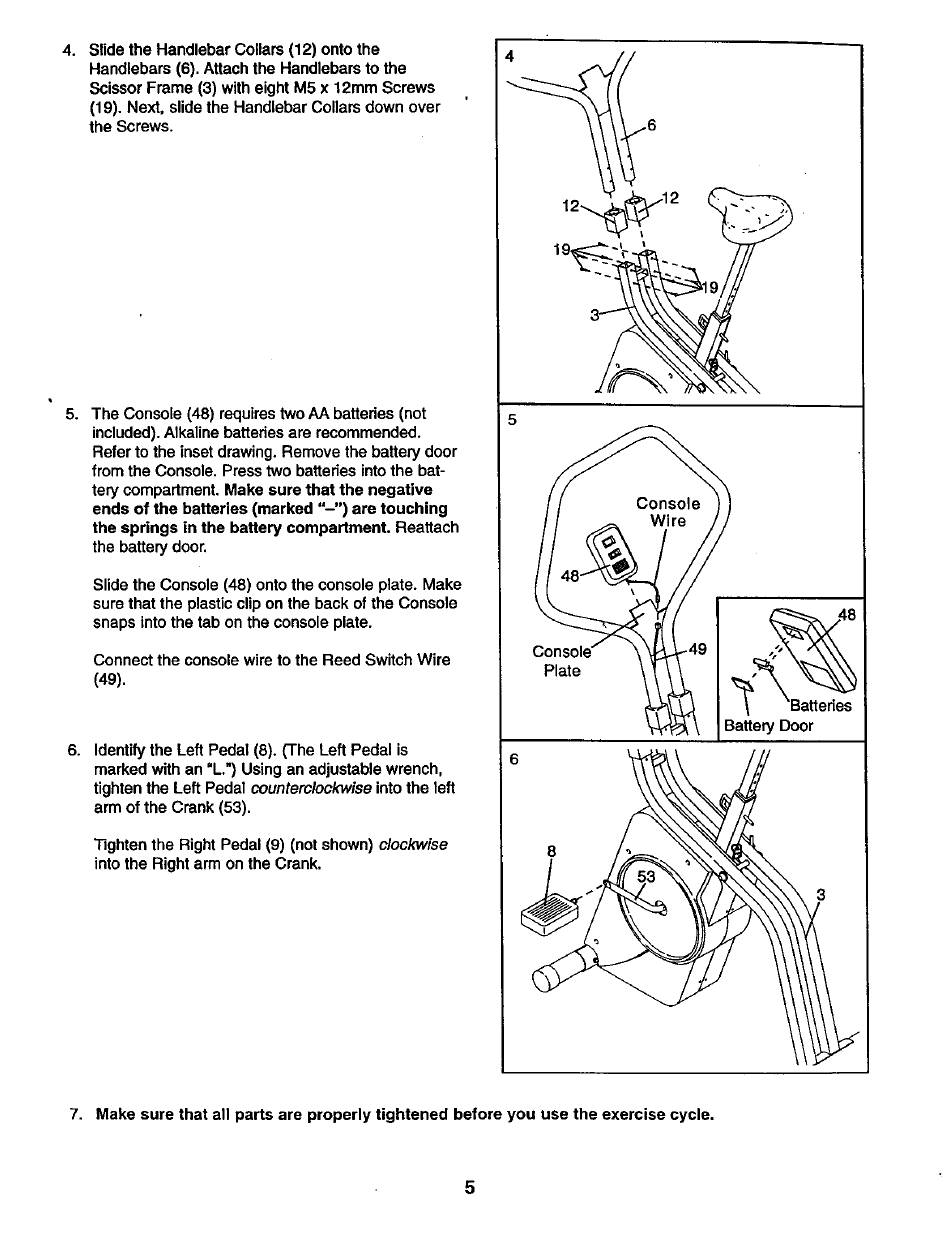

4. Slide the Handlebar Collars (12) onto the
Handlebars (6). Attach the Handlebars to the
Scissor Frame (3) with eight M5 x 12ram Screws
(19). Next, slide the Handlebar Collars down over
the Screws.
5. The Console (48) requires two AA batteries (not
included). Alkaline batteries are recommended.
Refer to the inset drawing. Remove the battery door
from the Console. Press two batteries into the bat-
tery compartment. Make sure that the negative
ends of the batteries (marked "-") are touching
the springs in the battery compartment. Reattach
the battery door.
Slide the Console (48) onto the console plate. Make
sure that the plastic clip on the back of the Console
snaps into the tab on the console plate.
Connect the console wire to the Reed Switch Wire
(49).
6.
Identify the Left Pedal (8). (The Left Pedal is
marked with an "L.") Using an adjustable wrench,
tighten the Left Pedal counterclockwise into the left
arm of the Crank (53).
Tighten the Right Pedal (9) (not shown) c/ockwise
into the Right arm on the Crank.
5
6
Plate
Battery Door
7. Make sure that all parts are properly tightened before you use the exercise cycle.
