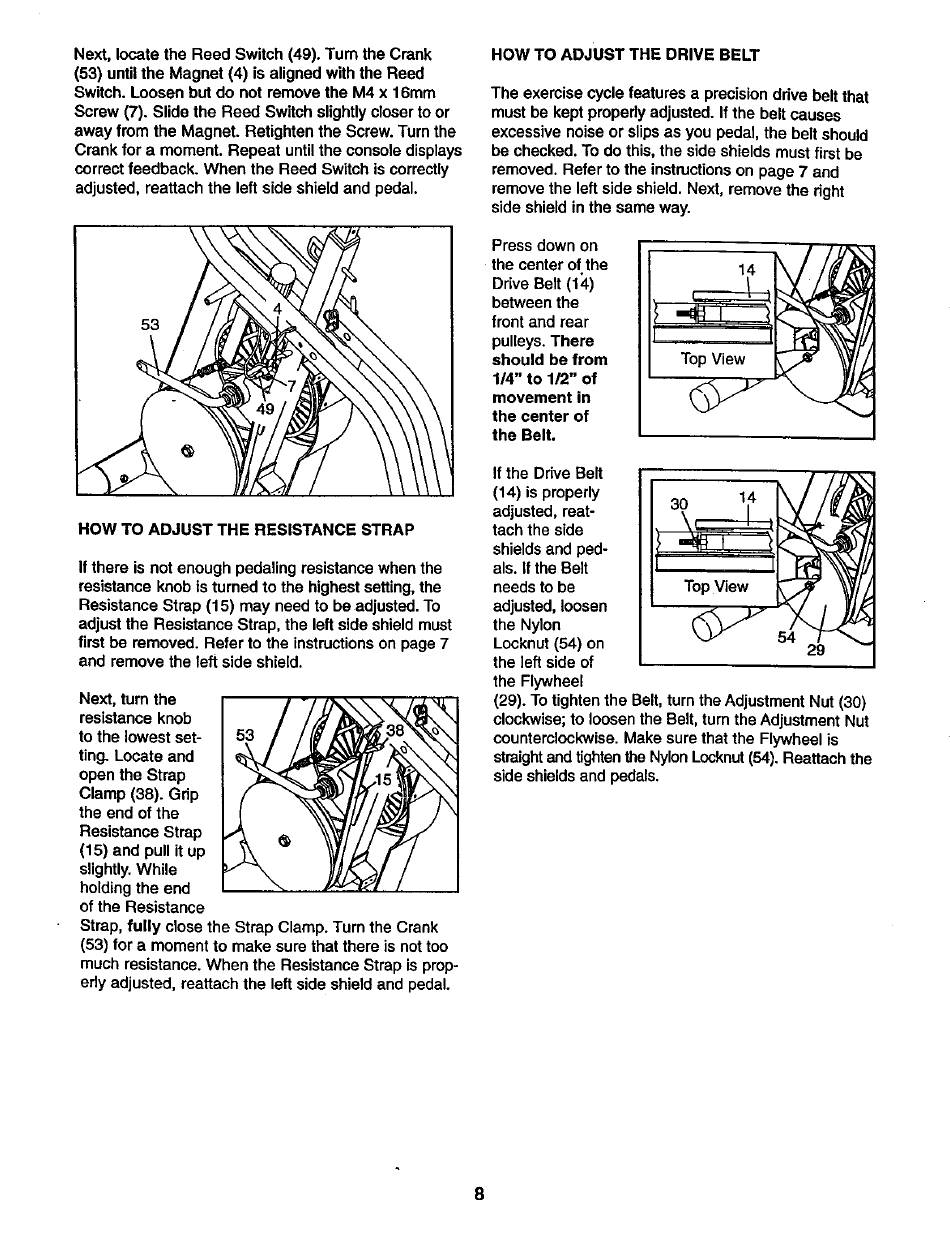

Pro-Form 900L User Manual page 8

Next, locate the Reed Switch (49). Turn the Crank
(53) until the Magnet (4) is aligned with the Reed
Switch. Loosen but do not remove the M4 x 16mm
Screw (7). Slide the Reed Switch slightly closer to or
away from the Magnet. Retighten the Screw. Turn the
Crank for a moment. Repeat until the console displays
correct feedback. When the Reed Switch is correctly
adjusted, reattach the left side shield and pedal.
53
HOW TO ADJUST THE RESISTANCE STRAP
If there is not enough pedaling resistance when the
resistance knob ls turned to the highest setting, the
Resistance Strap (15) may need to be adjusted. To
adjust the Resistance Strap, the left side shield must
first be removed. Refer to the instructions on page 7
and remove the left side shield.
Next, turn the
resistance knob
to the lowest set-
ting. Locate and
open the Strap
Clamp (38). Gdp
the end of the
Resistance Strap
(15) and pull it up
slightly. While
holding the end
of the Resistance
Strap, fully close the Strap Clamp. Turn the Crank
(53) for a moment to make sure that there is not too
much resistance. When the Resistance Strap is prop-
edy adjusted, reattach the left side shield and pedal.
HOW TO ADJUST THE DRIVE BELT
The exercise cycle features a precision drive belt that
must be kept propedy adjusted. If the belt causes
excessive noise or slips as you pedal, the belt should
be checked. To do this, the side shields must first be
removed. Refer to the instructions on page 7 and
remove the left side shield. Next, remove the right
side shield in the same way.
Press down on
the center of the
Drive Belt (14)
between the
front and rear
pulleys. There
should be from
114" to 1/2" of
movement in
the center of
the Belt.
14
; l
Top View
If the Drive Belt
(14) is properly
adjusted, reat-
tach the side
shields and ped-
als. If the Belt
needs to be
adjusted, loosen
the Nylon
Locknut (54) on
the left side of
the Flywheel
•op V ,ew
29
(29). To tighten the Belt, turn the Adjustment Nut (30)
clockwise; to loosen the Belt, turn the Adjustment Nut
counterclockwise. Make sure that the Flywheel is
straight and tighten the Nylon Locknut (54). Reattach the
side shields and pedals.
