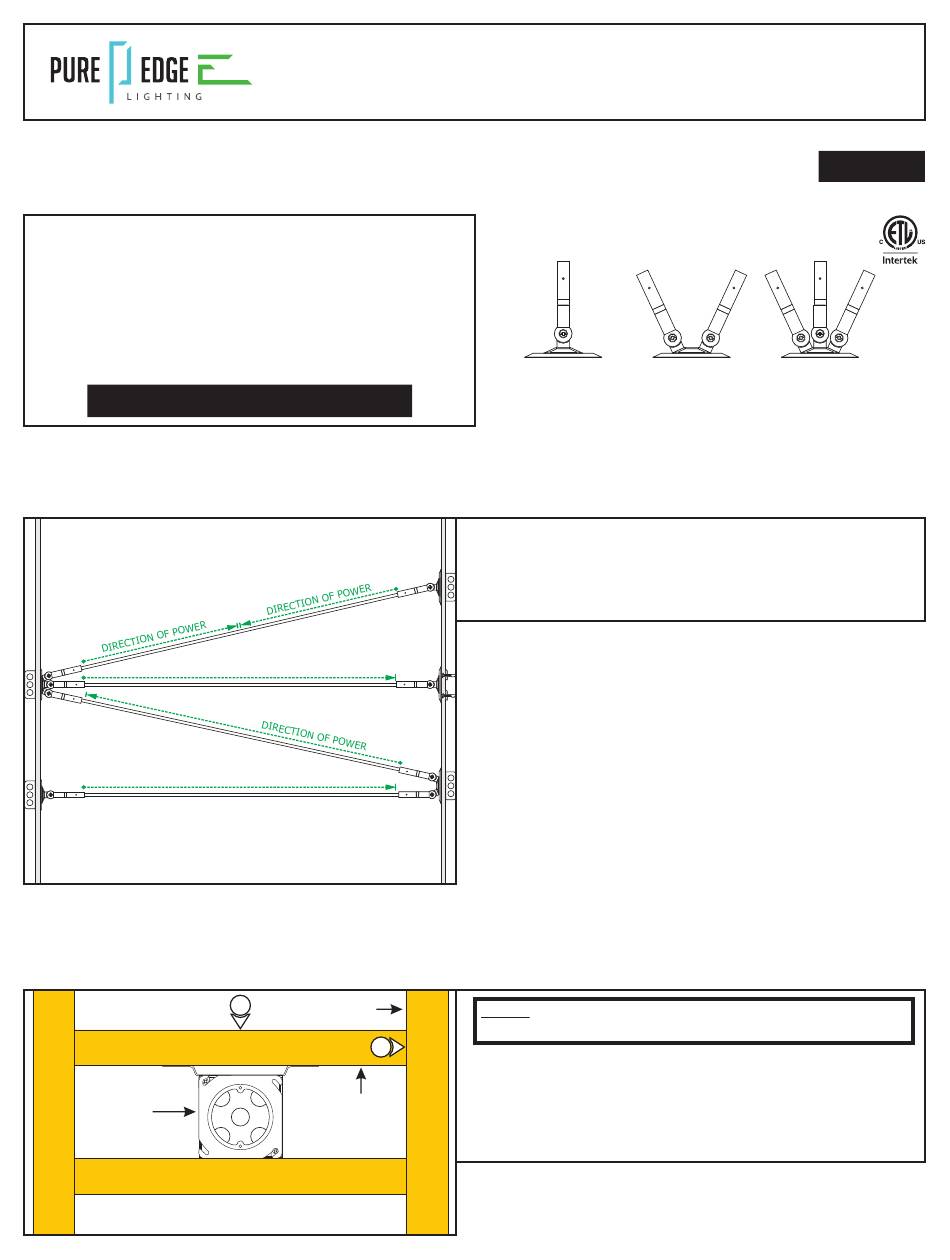

PureEdge Lighting LLT1-4R Series Installation Instructions Manual

Lazer line direct with 4" round canopy
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Installation Instructions for Lazer Line Direct with 4" Round Canopy
IMPORTANT INFORMATION
- This instruction shows a typical installation.
- This product is ETL listed.
- It is recommended more than one person assist in this
installation.
- This product must be installed by a qualified electrician and
installed in accordance with local electrical codes.
SAVE THESE INSTRUCTIONS!

Section One: Configuration Notes

A
4R3
a
a
b
4RD
a
a) Power Turnbuckle
b) Non-Power Turnbuckle

Section Two: Install the Power Feed Turnbuckle

B
JUNCTION
BOX
a
DIRECTION OF POWER
b
a
DIRECTION OF POWER
b
1
STUD
2
BRACE
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
4RD
1: Determine the design of the Lazer Line DIY System.
4RD
2: Based on the design, the 4" Round Canopy with 1, 2, or 3
turnbuckles could be used to mount the Lazer Line in
multiple directions. Power could also be multi-directional.
4RD
4R2
NOTE:
Ensure the junction box is mounted to a solid structure
such as brick, cement, or wood studs.
1: Cut a 16" long 2x4 brace and secure the junction box to the
brace (scabs) with screws. If necessary, place a second
brace under the junction box for more stability.
2: Locate and secure the brace (scabs) between the studs
where the turnbuckles will be mounted.
Doc # 904-LLT-4R_03
LLT1-4R_-_
4R2
4R3
1
