PureEdge Lighting Nova NCM Series Installation Instructions

Installation Instructions for Nova Ceiling Channel Modular

IMPORTANT INFORMATION

- This product is ceiling mount only.
- The Nova Ceiling Channel should be used with modular
connectors only.
SAVE THESE INSTRUCTIONS!

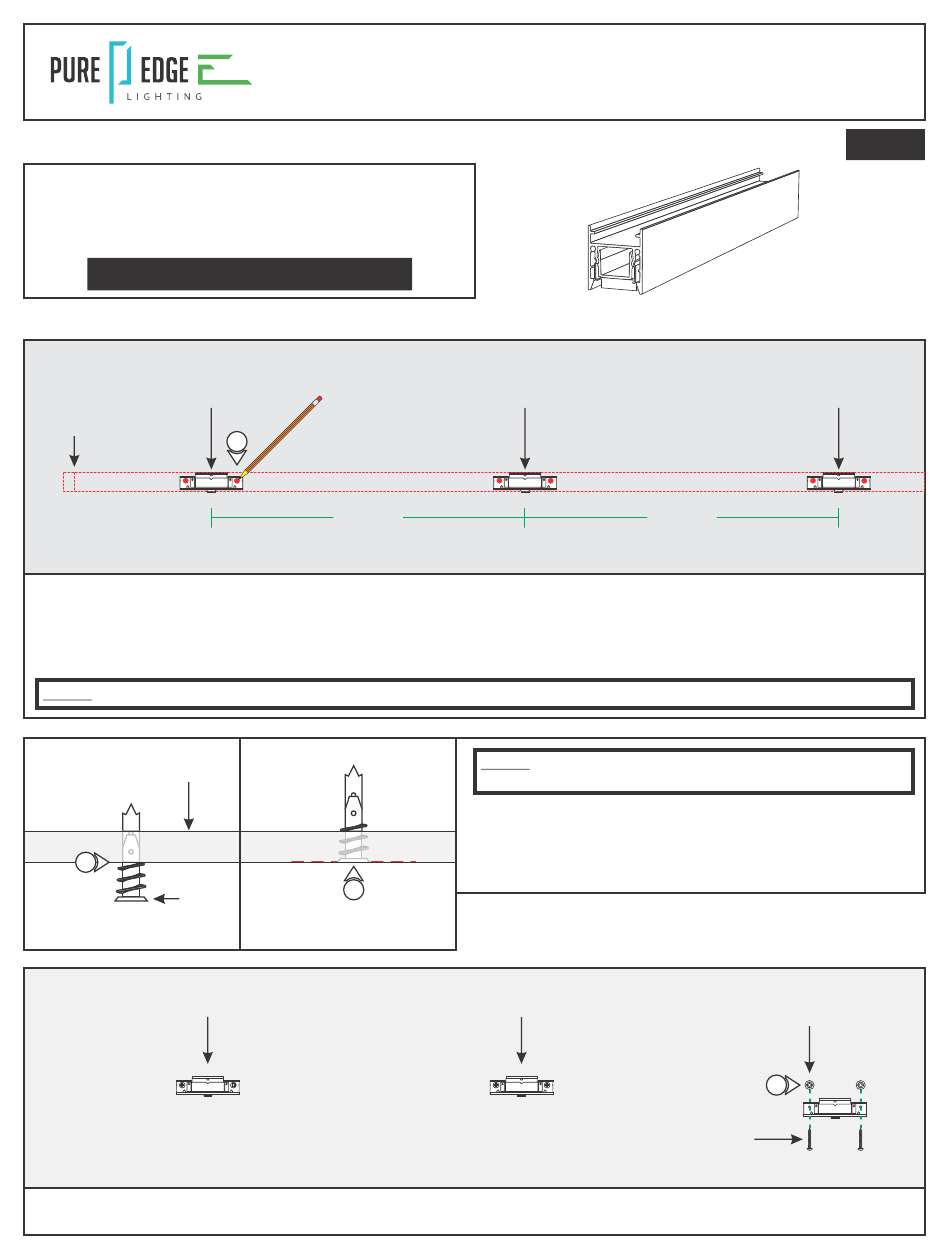

Section One: Install Locking Clips

A
LOCKING CLIP
CHANNEL
END
1: Lay out all channels, connectors, clips and other required components on the floor as a guide to determine where the
modular system will be located.
2: Make all necessary markings on the ceiling which will consist of the channel ends and locking clips. Clips must be installed
maximum 24" from each other.
NOTE:
If applicable, the channel must pass through the center of the junction box.
B
CEILING
2
ANCHOR
C
LOCKING CLIP
4: Line up each locking clip to the anchors and secure them by tightening the two #6 screws through the locking clip holes into
the anchors.
1
MAX 24"
3
ANCHOR MUST
BE FLUSH TO WALL
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
LOCKING CLIP
NOTE:
Steps 2 and 3 are for drywall mounting. Omit these steps
if mounting the clips to a wood surface directly.
2: Tap the anchors onto the marked points up to the threaded
portion with a hammer.
3: Screw in the threaded portion of the anchors with a Phillips
screwdriver.
LOCKING CLIP
LOCKING CLIP
MAX 24"
ANCHOR
4
#6 SCREW
Doc # 904-NCM_01
NCM-__
CEILING
CEILING
1
