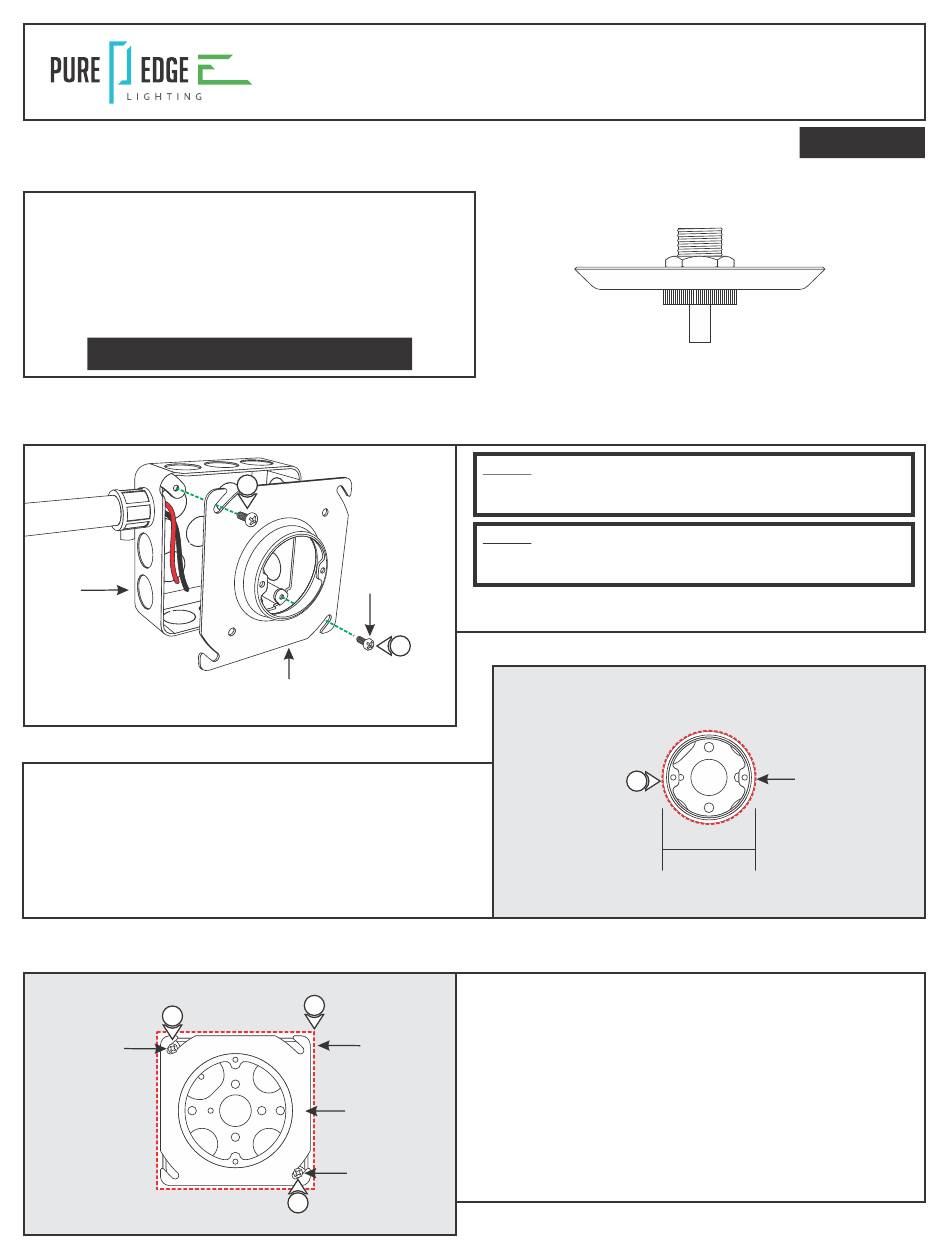

Installation Instructions for 2" Round & Square Cable Grip Power
Canopies with Plaster Plate Mount
IMPORTANT INFORMATION
- This product is installed to a 4" electrical box or to an
octagon electrical box using the 2" plaster ring provided.
- Minimum electrical box volume must be 6 cubic inches (98
cubic centimeters).
- This product is intended only to be used with the Linear
Suspension series.
SAVE THESE INSTRUCTIONS!
Install the 2" Plaster Ring
For New Construction
A
JUNCTION
BOX
2: Use a circular saw to cut out the drywall section where the
plaster ring is located.
3: Install the drywall. If necessary plaster, and finish the
drywall.
4: Complete the installation by following steps in "Prepare
Power Cable and Install Cable Grip" section.
For Remodeling
C
6
#8-32
SCREW
1
#8-32
SCREW
1
2" PLASTER
RING
CEILING
5
CUT
DRYWALL
STANDARD
PLASTER RING
#8-32
SCREW
6
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
NOTE:
Junction box must be mounted to allow clearance of
1/2" between the face of the junction box and the drywall
surface.
NOTE:
24VDC power wires must be present inside the junction
box. Refer to the installation instructions provided with the
power supply.
1: Install the 2" plaster ring to the junction box using two
#8-32 screws.
B
2
5: Cut away the drywall where the junction box is located.
6: Uninstall the existing plaster ring by removing the #8-32
screws.
7: Install the 2" Plaster Ring to the junction box using two
#8-32 screws.
8: Plaster and finish around the junction box opening.
9: Finish Cable Grip installation by following steps in "Prepare
Power Cable and Install Cable Grip" section.
Doc # 904-CCS-2SQ_2RD_03
CCS-2_-JBOX-_
CEILING
CUT
DRYWALL
