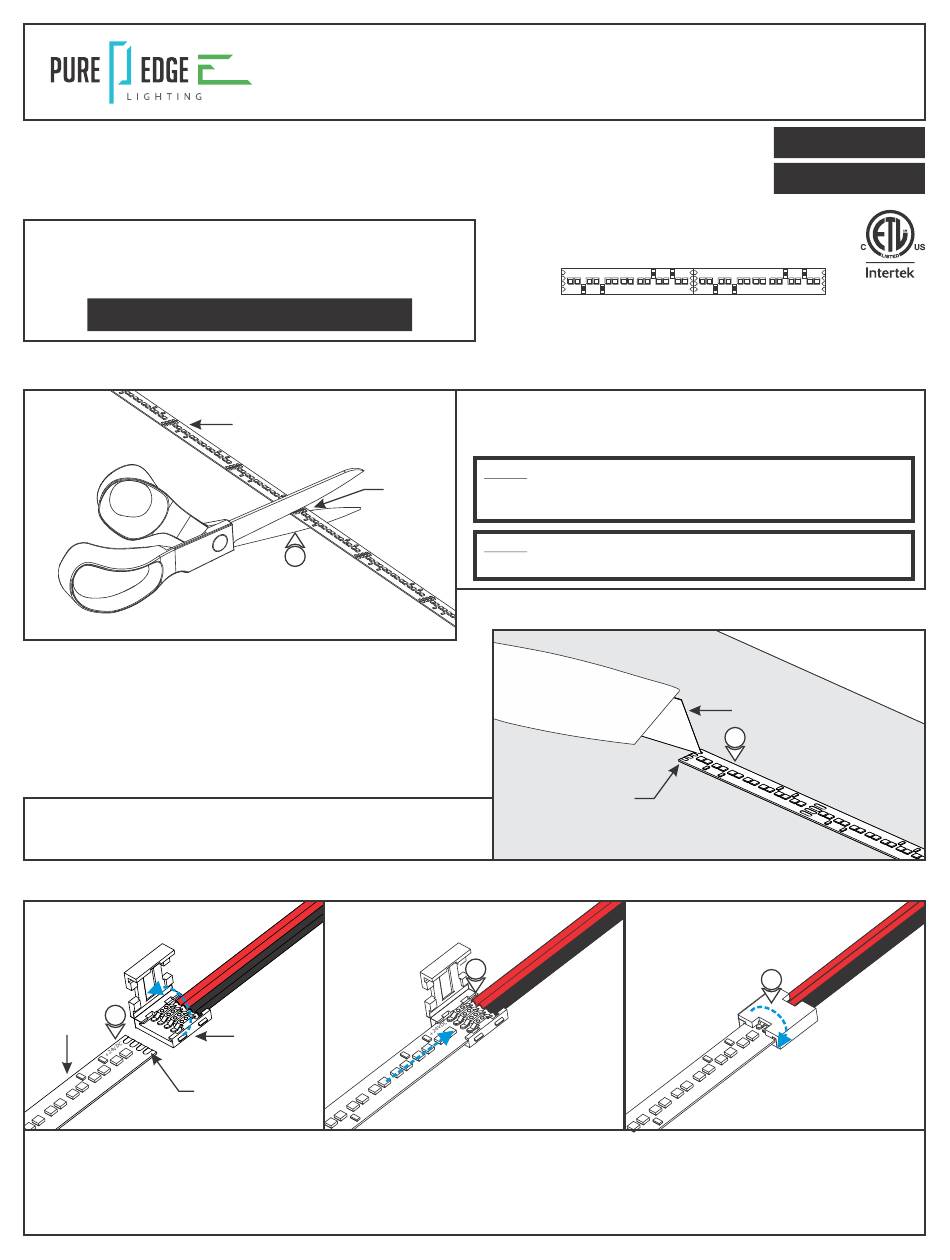

PureEdge Lighting SS5C Commercial Installation Instructions

Installation Instructions for SS5C Commercial LED Soft Strip,
Tunable White 2000K-4000K and SS10C Commercial LED
Soft Strip, Tunable White 2000K-4000K
IMPORTANT INFORMATION
- This product is ETL listed for indoor locations.
SAVE THESE INSTRUCTIONS!

Section One: Prepare the LED Soft Strip

A
2: Place the LED Soft Strip on a flat, stable surface. Using a
utility knife, carefully scrape the protective coating from the
contacts.

Section Two: Install the Soft Strip

C
LED SOFT
1
STRIP
EXPOSED
CONTACT
1: Align the +24VDC marking on the soft strip with the red wires of the Snap & Light connector. Insert the exposed contact at
the end of the LED strip under the Snap & Light contacts ensuring that the strip contacts are aligned and covered under the
connector contacts.
2: Close the Snap & Light cover and ensure it snaps securely into place.
LED SOFT STRIP
TRIM
LINE
1
+
-
SNAP &
LIGHT
CONNECTOR
