Installation Instructions for TruTrack L-Shaped Power Feed
with 1"Rectangle Junction Box
IMPORTANT INFORMATION
- This product is for indoor locations only.
- This instructions shows a typical installation.
- Before beginning any electrical work, ensure that the
power to the electrical box is off.
SAVE THESE INSTRUCTIONS!

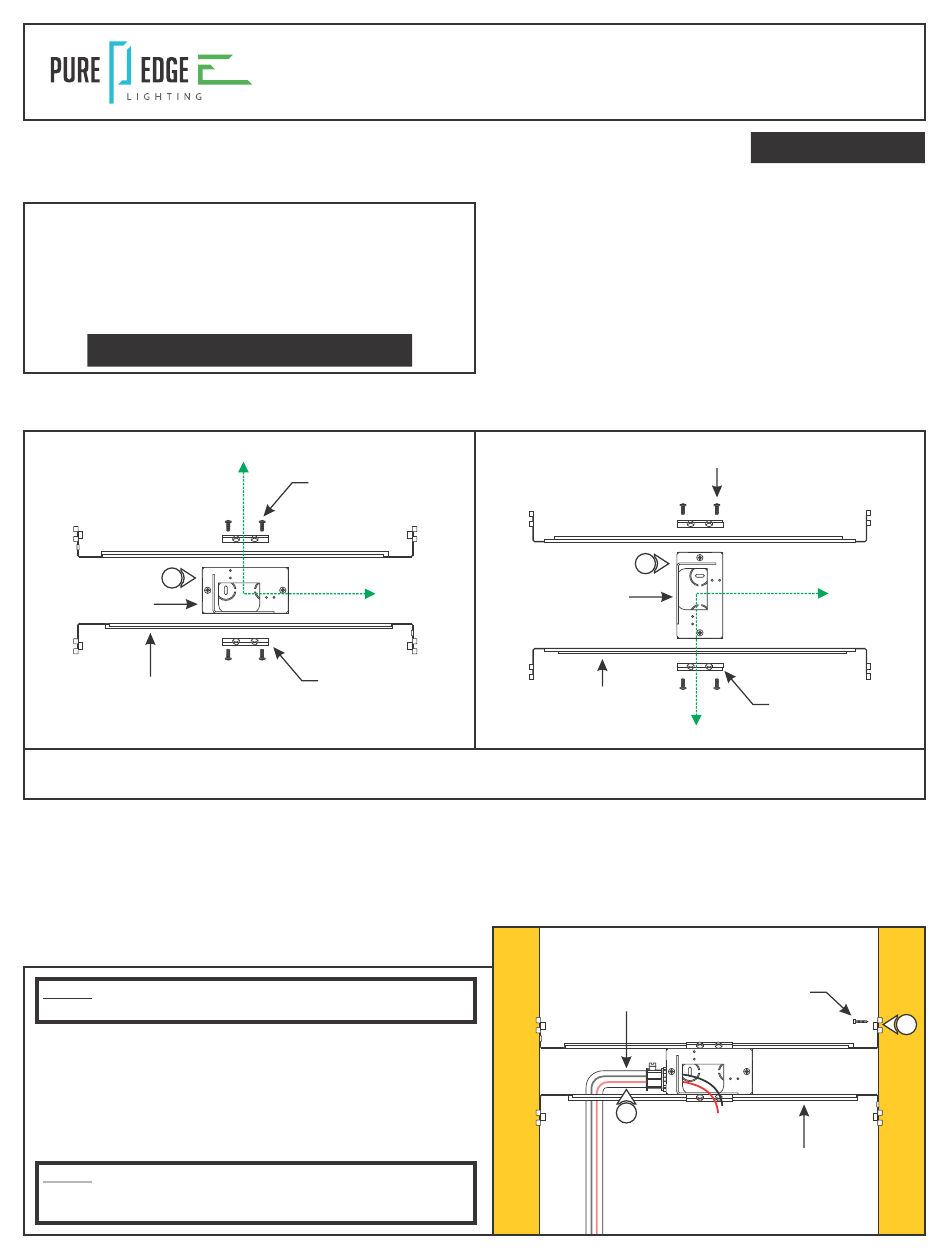

Section One: Install the Junction Box
A
1
JUNCTION BOX
ADJUSTABLE
MOUNTING BAR
1: Mount each adjustable mounting bar to one side of the junction box and secure them with the mounting brackets and
Phillips screws provided.
NOTE:
Adjustable mounting bars mount to studs that are
spaced 14.5" to 25" apart.
2: Place the adjustable mounting bar tabs against the ceiling
joists. Secure the adjustable bars to the joists with the #8
screws.
3: Install conduit (if required by local electrical code) and run
the low voltage wires coming from the remote power supply
to the junction box.
NOTE:
Only use 0-10V and Uni power supplies with this
product. See the wiring diagram provided with the power supply
instructions.
PHILLIPS SCREW
INSTALLATION
DIRECTION
MOUNTING
BRACKET
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
PHILLIPS SCREW
1
JUNCTION BOX
ADJUSTABLE
MOUNTING BAR
B
CONDUIT
3
Doc # 904-TR24-LP1-1RE-_03
TR24-LP1-1RE-_-_-WH
INSTALLATION
DIRECTION
MOUNTING
BRACKET
#8 SCREWS
2
ADJUSTABLE
MOUNTING BAR
1
