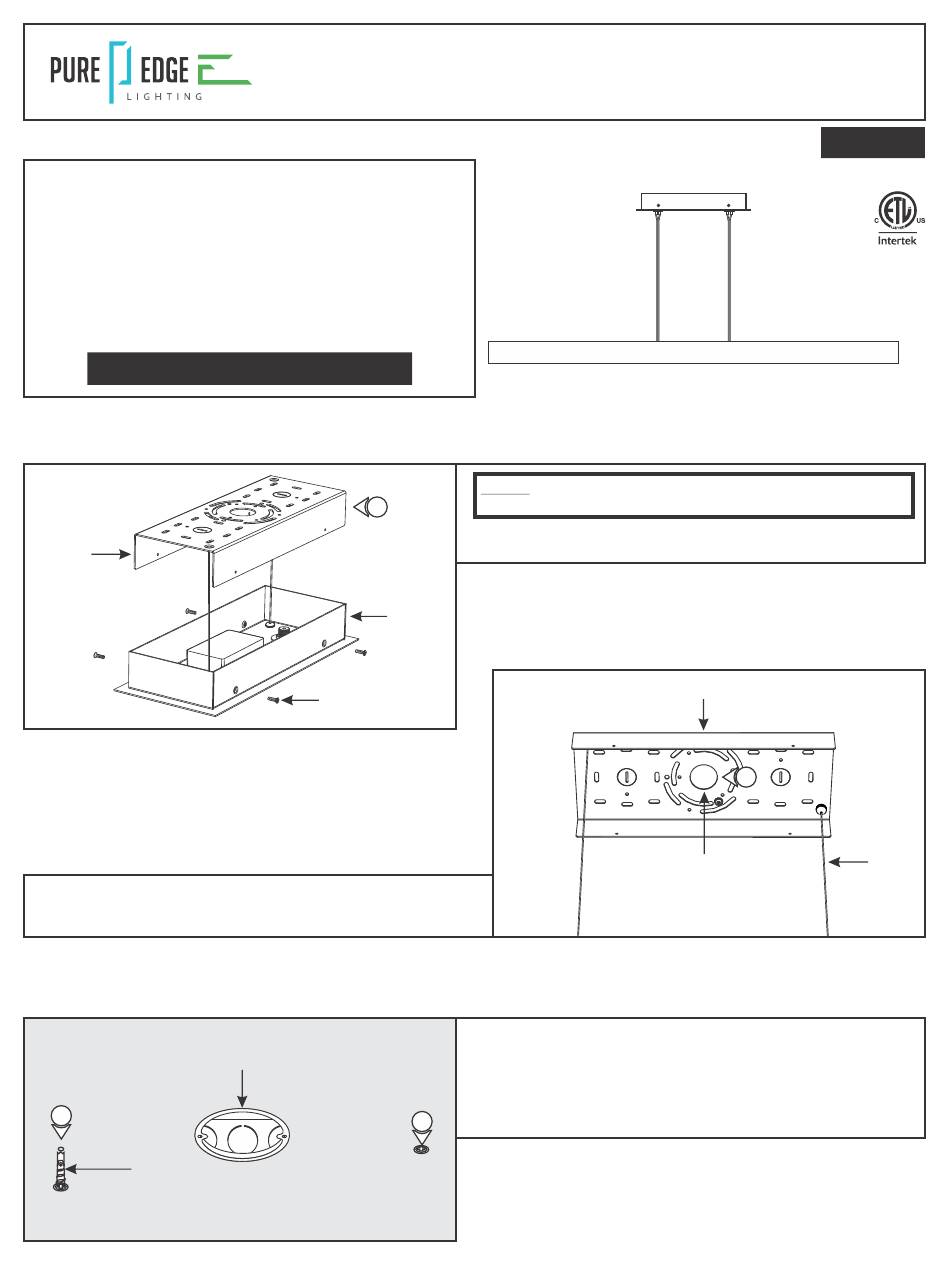

Installation Instructions for Glide Downlight - Center Feed
IMPORTANT INFORMATION
- This product is suitable for indoor locations.
- This instruction shows a typical instruction.
- Care and Maintenance: To clean wood panels (if applies)
dust them using a dry rag or use a very dry damp cloth
with furniture cleaner.
- Two additional aircraft cables are added for support when
the fixture lengths are 96 inches and up.
SAVE THESE INSTRUCTIONS!
Section One: Install the Canopy
A
MOUNTING
PLATE
2: Select the appropriate knockout on the mounting plate and
remove it using a flathead screwdriver or other appropriate
tool.
C
JUNCTION BOX
3
ANCHOR
NOTE:
installation.
1
1: Remove the four Phillips screws from the canopy to remove
the mounting plate.
CANOPY
B
PHILLIPS
SCREW
3: Align the mounting plate holes with the junction box. Mark
CEILING
one point on each side of the junction box onto the ceiling.
4: Tap the anchors onto the marked points up to the threaded
portion with a hammer. Then screw in the threaded portion
4
with a Phillips screw driver.
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
It is recommended more than one person to assist in this
MOUNTING PLATE
KNOCKOUT
Doc # 904-GLD-C_04
GLD_-_-C_-_
2
SAFETY
CABLE
1
Advertisement
Table of Contents
Related Manuals for PureEdge Lighting GLD_-_-C Series
Summary of Contents for PureEdge Lighting GLD_-_-C Series
-
Page 1: Section One: Install The Canopy
Doc # 904-GLD-C_04 1718 W. Fullerton Chicago, IL 60614 Ph: 773.770.1195 ● Fax: 773.935.5613 www.PureEdgeLighting.com ● info@PureEdgeLighting.com © 2016 PureEdge Lighting. All Rights Reserved. Installation Instructions for Glide Downlight - Center Feed GLD_-_-C_-_ IMPORTANT INFORMATION - This product is suitable for indoor locations. -
Page 2: Section Two: Power The Fixture
5: Make sure the mounting plate is grounded in accordance CEILING with local electrical codes. 6: Feed the 120VAC power wires through the mounting plate knockout. 7: Secure the mounting plate to the junction box and anchors using the provided screws and washers. WASHER 120VAC SCREWS... - Page 3 POWER SUPPLY LABEL SUPPORT 24VDC- DO NOT POWER SUPPORT 24VDC+ SUPPORT WIRES 5: Connect the wire marked 24VDC+ to the red power supply wire using a wire nut. 6: Connect the wire marked 24VDC- to the black power supply wire using a wire nut. 7: Connect the 120V white power supply wire to the neutral wire from the 120VAC circuit with a wire nut.
-
Page 4: Section Three: Install Additional Support
12: Place all the wires and wire nut connections inside the canopy. JUNCTION 13: Align and secure the canopy to the mounting plate by tightening the four screws. CANOPY CORD GRIP 14: To make any adjustments to the fixture height, push the WIRES cord grips to slide the fixture up and down until the desired height is achieved. - Page 5 6: Lift the other end of the aircraft cable against the ceiling to mark the location of the standoff. CEILING 7: Push the tab on the sliding post and remove the aircraft cable. 8: Repeat steps 5 through 7 for the other sliding post. PENCIL AIRCRAFT SLIDING...
-
Page 6: Wiring Diagram
Wiring Diagram WHITE (NEUTRAL) INPUT 120VAC BLACK (LOAD) LINE ELV DIMMER WHITE (NEUTRAL) INPUT 120VAC BLACK (LOAD) LINE OPTIONAL FAST JACK ELV DIMMER FOR C1 CANOPY C1 Version with Fast Jack Port (Fixture Sold Separately)
