PureEdge Lighting TruLine 1.6A Installation Instructions

Installation Instructions for TruLine 1.6A In and Out Connector to Nova
Modular Ceiling or Suspension

IMPORTANT INFORMATION

- This instruction shows a typical installation.
- This instruction must be used concurrently with TruLine 1.6A
and Nova Modular Suspension or Ceiling installation
instructions.
SAVE THESE INSTRUCTIONS!

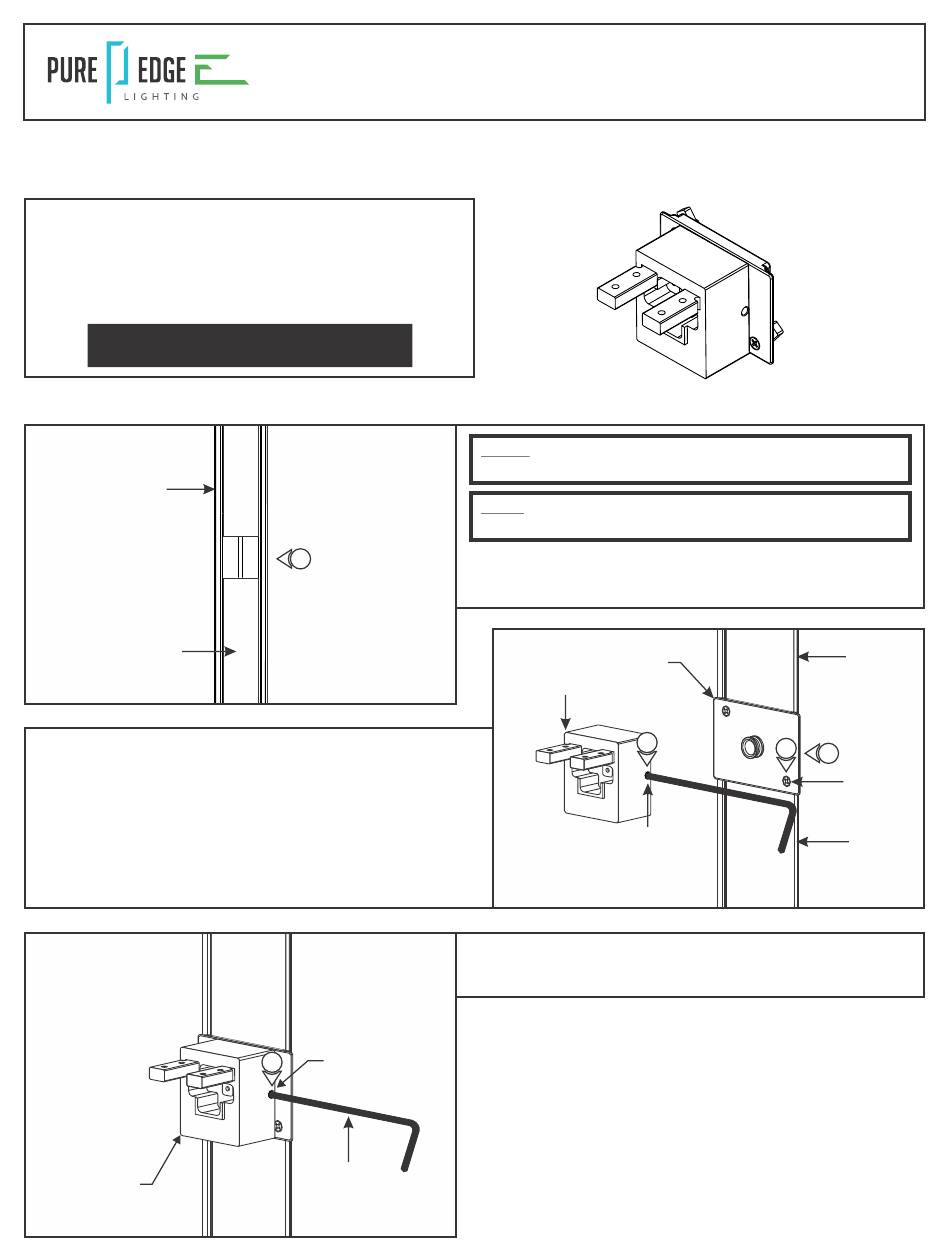

Install the Connector

A
TRULINE
CHANNEL
Lens
2: Loosen (Do Not Remove) the two #2-56 set screws with a
0.035" Allen wrench.
3: Slide out the mounting plate from the connector and place
onto the channel.
4: Tighten the two screws on the mounting plate so that the
rectangular nuts grab the back of the channel lip securing
the mounting plate in place.
C
IN AND OUT
CONNECTOR
1
#2-56
5
SET SCREW
0.035"
ALLEN
WRENCH
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
NOTE:
Before installing the connector, make sure the TruLine
1.6A is pre-installed.
NOTE:
Follow steps described in the TruLine 1.6A installation
instructions to complete the TruLine installation.
1: Determine the location of the In and Out connector on the
TruLine 1.6A channel. Cut out the section of the TruLine
1.6A lens where the connector is going to be installed.
B
MOUNTING
PLATE
IN AND OUT
CONNECTOR
2
#2-56
SET SCREW
5: Place the connector on the mounting plate and secure it in
place by tightening the two #2-56 set screws with a 0.035
Allen wrench.
Doc # 904-TL1.6A-IO-NOV-CA_02
TRULINE
CHANNEL
4
3
PHILLIPS
SCREW
0.035"
ALLEN
WRENCH
1
