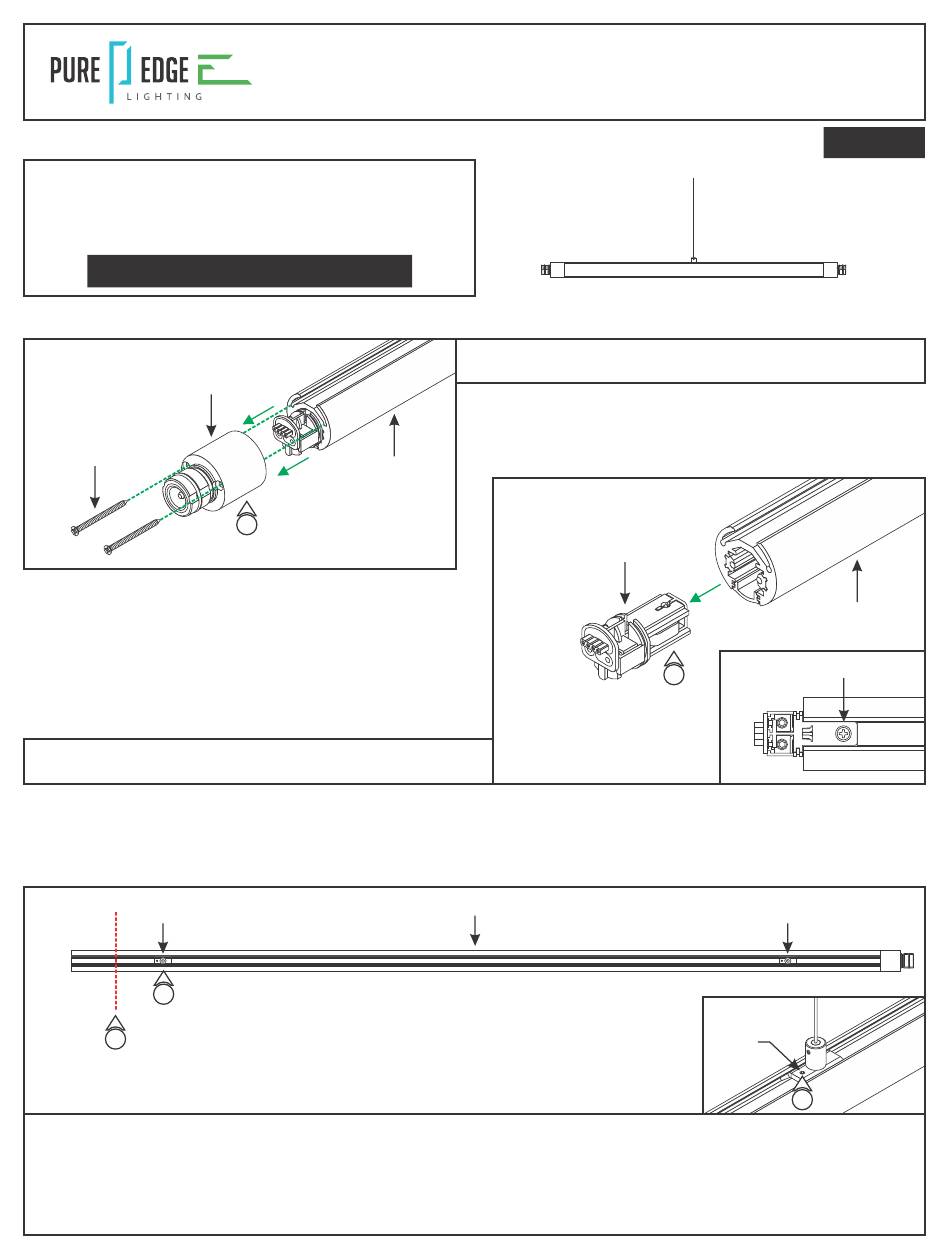

Installation Instructions for Pipeline Suspension Track Modular
IMPORTANT INFORMATION
- This product suspends only from the ceiling.
- This instruction shows a typical installation.
SAVE THESE INSTRUCTIONS!
Section One: Cut the Track
A
PLUG
PHILLIPS
SCREW
2: Loosen the Phillips screw on the Insert Power Jack and
carefully pull it out from the track.
C
CUT
CLIP
3
4
3: Loosen the #4-40 set screw on the clip with a 0.05" Allen wrench and slide it inside the track.
4: Determine the desired length of the track. Measure and slowly cut the track to desired length using a hack saw or chop saw
with a metal cutting blade (recommended).
5: Slide the clip back to the proper location and tighten the #4-40 set screw to lock it in place.
TRACK
1
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
1: Remove the two Phillips screws on one end of the track
assembly to remove the plug.
B
INSERT
POWER
JACK
TRACK
Doc # 904-PLSTRM_01
PLSTRM-_-_
TRACK
PHILLIPS SCREW
2
CLIP
#4-40 SET
SCREW
3
1
Advertisement
Table of Contents
Related Manuals for PureEdge Lighting PLSTRM Series
Summary of Contents for PureEdge Lighting PLSTRM Series
-
Page 1: Important Information
Doc # 904-PLSTRM_01 1718 W. Fullerton Chicago, IL 60614 Ph: 773.770.1195 ● Fax: 773.935.5613 www.PureEdgeLighting.com ● info@PureEdgeLighting.com © 2016 PureEdge Lighting. All Rights Reserved. Installation Instructions for Pipeline Suspension Track Modular PLSTRM-_-_ IMPORTANT INFORMATION - This product suspends only from the ceiling. - Page 2 6: Replace the insert power jack and plug and secure to the INSERT track using the two Phillips screws. POWER JACK PLUG PHILLIPS SCREW TRACK Section Two: Installing the Middle Support ( only for lengths greater than 72" NOTE: Omit these steps if the modular track is less than 72" or does not come with the Suspension Track Mounting Clip.
- Page 3 Section Three: Connecting Channel Sections NOTE: A typical modular connection shown. For all other connections refer to the design. 1: To install the connector (power end cap shown) align the connector with the channel and slide into place. 2: Refer to the instruction that is provided with the connector to complete the installation.
