PureEdge Lighting Piston Installation Instructions

Installation Instructions for Piston

IMPORTANT INFORMATION

- This instruction shows a typical installation.
- This product is intended to be used with PureEdge Lighting
Monorail and Fast Jack systems only.
SAVE THESE INSTRUCTIONS!

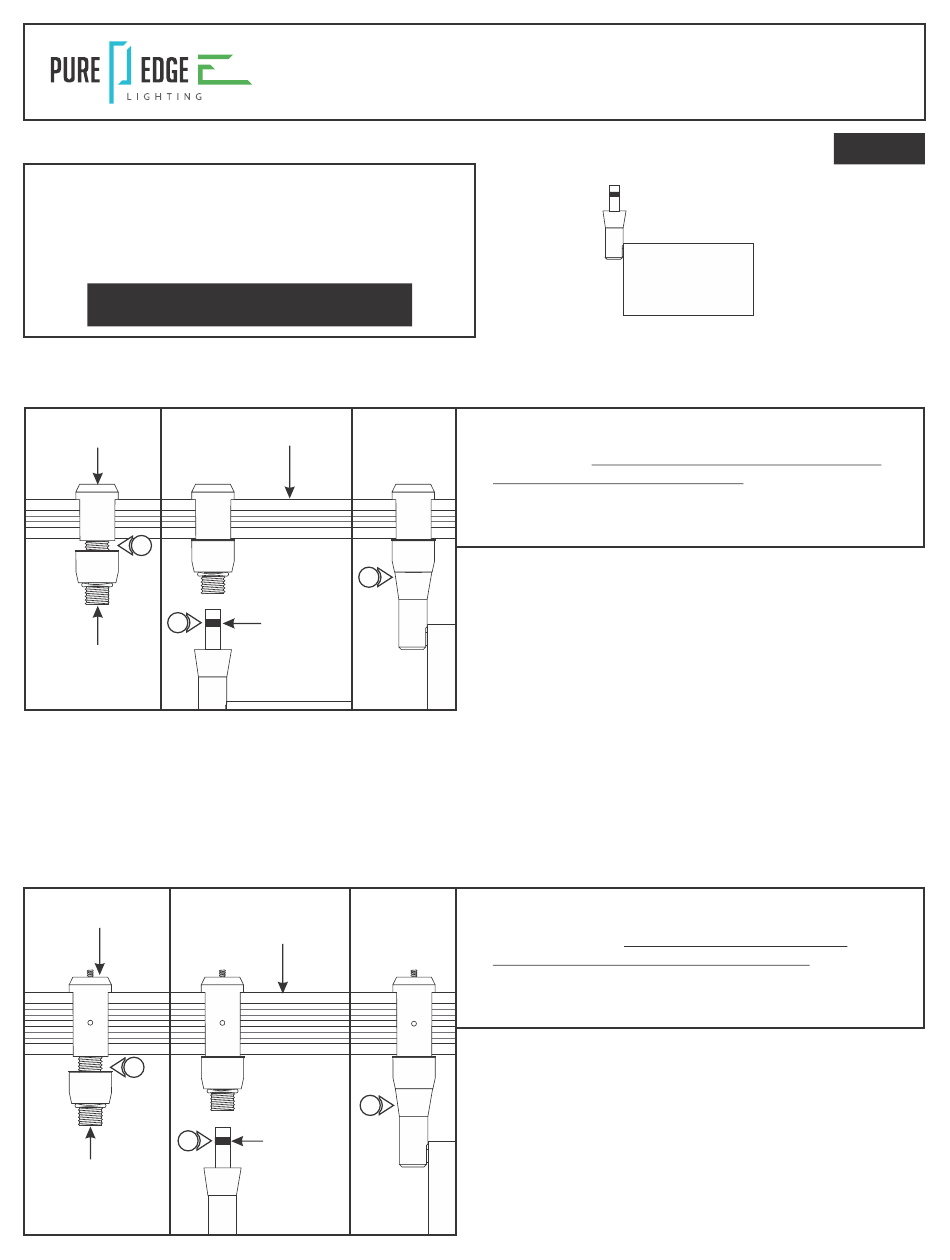

Install the Fixture to Monorail Connector

A
FAST JACK
HOUSING
1
2
FAST JACK
HOUSING
CONNECTOR

Install the Fixture to Monorail 2 Circuit Connector

B
FAST JACK
HOUSING
1
2
FAST JACK
HOUSING
CONNECTOR
MONORAIL
2
FAST JACK
FIXTURE
CONNECTOR
MONORAIL 2
CIRCUIT
2
FAST JACK
FIXTURE
CONNECTOR
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
1: Place the Fast Jack housing onto the Monorail and use
fingers to tighten the Fast Jack housing connector to the Fast
Jack housing. Make sure that the Fast Jack housing
connector is not cross threaded.
2: Use fingers to tighten the Fast Jack fixture connector into the
Fast Jack housing connector.
1: Place the Fast Jack housing onto the Monorail 2 Circuit and
use finger to tighten the Fast Jack housing connector to the
Fast Jack housing. Make sure that the Fast Jack
housing connector is not cross threaded.
2: Use fingers to tighten the Fast Jack fixture connector into
the Fast Jack housing connector.
Doc # 904-FJ-PST_02
FJ-PST-__
1
