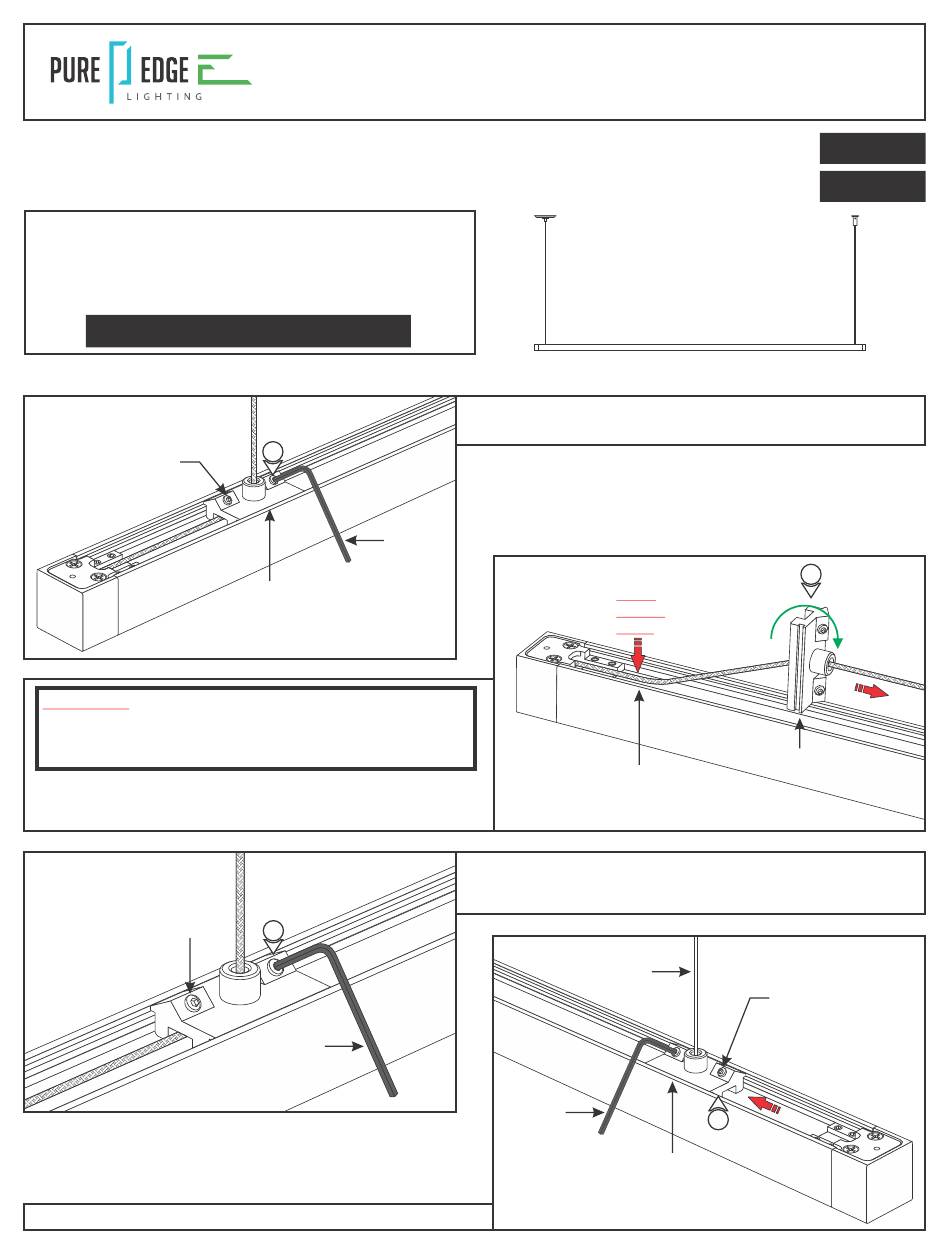

Installation Instructions for Zip Suspension Downlight with Remote
Power and 2" Square or Round Canopy
IMPORTANT INFORMATION
- This product is suitable for indoor locations.
- This instruction shows a typical installation.
- It is recommended more than one person to assist in this
installation.
SAVE THESE INSTRUCTIONS!
Section One: Adjusting Cable Position
A
#4-40
SET
SCREW
WARNING:
To avoid damaging the coaxial cable electrical
connection, make sure that the end of the coaxial cable coming
out of the fixture is held with thumb before relocating sliding
posts.
2: Remove the sliding post from the channel. Carefully rotate
and move the sliding post to the predetermined location on
the channel.
C
#4-40
SET
SCREW
4: Repeat Steps 1 through 3 for aircraft cables.
1
0.05"
ALLEN
WRENCH
SLIDING
POST
3
0.05"
ALLEN
WRENCH
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
1: Loosen (DO NOT REMOVE) the two #4-40 set screws on
the sliding post with a 0.05" Allen wrench.
B
HOLD
CABLE
HERE
COAXIAL
CABLE
3: Place the sliding post back onto the channel and secure it by
tightening the two #4-40 set screws with the 0.05" Allen
wrench.
D
AIRCRAFT
CABLE
0.05"
ALLEN
WRENCH
SLIDING
POST
Doc # 904-ZS-2SQ_01
ZSD-2S_-__
ZSD-2R_-__
2
SLIDING POST
#4-40
SET
SCREW
4
1
Advertisement
Related Manuals for PureEdge Lighting ZSD-2S Series
Summary of Contents for PureEdge Lighting ZSD-2S Series
- Page 1 Doc # 904-ZS-2SQ_01 1718 W. Fullerton Chicago, IL 60614 Ph: 773.770.1195 ● Fax: 773.935.5613 www.PureEdgeLighting.com ● info@PureEdgeLighting.com © 2016 PureEdge Lighting. All Rights Reserved. Installation Instructions for Zip Suspension Downlight with Remote ZSD-2S_-__ Power and 2" Square or Round Canopy...
-
Page 2: Top View
Section Two: Install the Standoff NOTE: Run the proper size wires between the 24VDC power JUNCTION BOX supply to the electrical box. Refer to the instructions provided STANDOFF with the power supply for additional information. CANOPY NOTE: Omit Section Six if the channel is made out of a single piece. - Page 3 Section Three: Install the Support Canopy 1: Feed the #6 screw through the washer with threaded nipple and 2" washer respectively into the anchor. 2: Tighten the #6 screw completely into the anchor. 3: Tighten the standoff post completely onto the threaded nipple.
- Page 4 2: Use a circular saw to cut out the drywall section where the CEILING plaster ring is located. 3: Install the drywall. If necessary plaster, and finish the drywall. 4: Complete the installation by following the steps in Section DRYWALL Five.
- Page 5 COAXIAL NOTE: Scan the QR Code to watch the video clip of CABLE the following steps or visit BARE 1/8" WIRE http://www.edgelighting.com/videos/cxc_connector/ 2: Use the 18AWG hole of the wire stripper to remove 1-3/8" 1" INNER of the outer insulation to expose the braided wire. INSULATION WIRE STRIPPER...
- Page 6 COAXIAL COAXIAL CABLE CABLE CONNECTOR CONNECTOR ASSEMBLY ASSEMBLY FERRULE 10: Insert the coaxial cable into the coaxial connector until the wires of the center conductor are visible through the M3 set screw hole. NOTE: Ensure that the split in the ferrule is aligned 90° from the M4 set screw (see inset). 11: Use the provided 1.5mm Allen wrench to replace and 1.5MM ALLEN securely tighten the M3 set screw.
- Page 7 17: Mount the cord grip assembly to the 2" plaster ring using two #6-32 screws. CORD GRIP ASSEMBLY #6-32 SCREW 18: Place the canopy over the cord grip against the ceiling. Secure it in place by tightening the knurled nut to the cord CANOPY grip.
- Page 8 NOTE: Omit steps 4 through 9 if using support canopy. Refer to Section Three: Install the Support Canopy. 4: Feed the #6 screw through the washer with threaded nipple into the anchor. 5: Tighten the #6 screw completely into the anchor. WASHER 6: Tighten the standoff post completely onto the threaded WITH...
- Page 9 IMPORTANT INFORMATION REGARDING INSTALLATION AND REWORK OF SOFT STRIP LED DO NOT pull the strip gently pull up and away back towards itself. Doing so from the soft strip if removing risks damaging the strip and to reposition. This avoids making it not function.
- Page 10 General ELV Wiring Diagram White (Neutral) Input 120VAC Power Supply Black (Load) Black (Line) +24VDC -24VDC Dimmer Standoff 2" Canopy Coaxial Aircraft Cable Cable General 0-10V Wiring Diagram 0-10V Dimmer Gray 0-10V Purple 0-10V Red (Load) Power Black (Line) Input Supply 120VAC- White (Neu)
